Understanding the behavior of structures under various loads is crucial in civil and mechanical engineering. One of the fundamental tools used to analyze these behaviors is the Shear Moment Diagram. This diagram provides a visual representation of the internal shear forces and bending moments within a structure, helping engineers design safe and efficient structures. This post will delve into the intricacies of Shear Moment Diagrams, their importance, and how to construct them.
What is a Shear Moment Diagram?

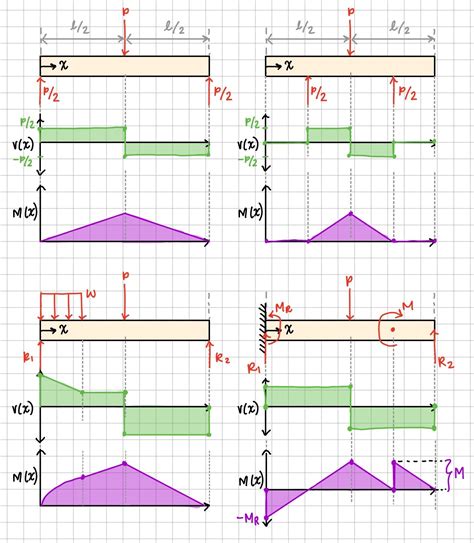

A Shear Moment Diagram is a graphical representation that shows the variation of shear force and bending moment along the length of a beam or structure. It is a vital tool in structural analysis, providing insights into how a structure responds to applied loads. The diagram typically consists of two parts: the shear force diagram and the bending moment diagram.
Importance of Shear Moment Diagrams
The Shear Moment Diagram is essential for several reasons:
- Design Optimization: It helps engineers determine the optimal design of structures by identifying critical sections where shear forces and bending moments are highest.
- Safety: By understanding the internal forces, engineers can ensure that the structure can withstand the applied loads without failure.
- Efficiency: It aids in the efficient use of materials, reducing waste and cost.
- Compliance: It ensures that the structure complies with building codes and standards.
Constructing a Shear Moment Diagram
Constructing a Shear Moment Diagram involves several steps. Here’s a detailed guide:
Step 1: Identify the Loads and Reactions
The first step is to identify all the loads acting on the structure and the reactions at the supports. This includes point loads, distributed loads, and moments.
Step 2: Draw the Free Body Diagram
Draw a free body diagram of the structure, including all the loads and reactions. This diagram will help visualize the forces acting on the structure.
Step 3: Calculate Shear Forces
Shear force at any point along the beam is the algebraic sum of all the vertical forces to one side of the point. To calculate the shear force diagram:
- Start from one end of the beam and move towards the other end.
- At each point where a load is applied, calculate the shear force by summing the vertical forces to the left (or right) of the point.
- Plot the shear force values on a graph.
Step 4: Calculate Bending Moments
Bending moment at any point along the beam is the algebraic sum of the moments of all the forces to one side of the point. To calculate the bending moment diagram:
- Start from one end of the beam and move towards the other end.
- At each point where a load is applied, calculate the bending moment by summing the moments of the forces to the left (or right) of the point.
- Plot the bending moment values on a graph.
Step 5: Plot the Diagrams
Using the calculated values, plot the shear force and bending moment diagrams. The shear force diagram will show the variation of shear force along the length of the beam, while the bending moment diagram will show the variation of bending moment.
📝 Note: Ensure that the diagrams are drawn to scale for accurate analysis.
Interpreting Shear Moment Diagrams
Interpreting a Shear Moment Diagram involves understanding the significance of the peaks and valleys in the diagrams. Here are some key points to consider:
- Peaks and Valleys: The peaks in the shear force diagram indicate points of maximum shear, while the valleys indicate points of minimum shear. Similarly, the peaks in the bending moment diagram indicate points of maximum bending moment.
- Zero Points: Points where the shear force is zero are critical as they indicate points of maximum or minimum bending moment.
- Sign Convention: Follow a consistent sign convention for shear forces and bending moments. Positive shear force typically indicates an upward force on the left side of the section, while positive bending moment indicates compression on the top fibers.
Example of a Shear Moment Diagram
Let’s consider a simple example of a beam with a uniform load. Assume a beam of length 10 meters with a uniform load of 5 kN/m and simply supported at both ends.
First, calculate the reactions at the supports:
| Support | Reaction |
|---|---|
| A | 25 kN |
| B | 25 kN |
Next, calculate the shear force and bending moment at various points along the beam. For simplicity, let’s consider points at 2-meter intervals.
Shear Force Diagram:
| Distance from A (m) | Shear Force (kN) |
|---|---|
| 0 | 25 |
| 2 | 15 |
| 4 | 5 |
| 6 | -5 |
| 8 | -15 |
| 10 | -25 |
Bending Moment Diagram:
| Distance from A (m) | Bending Moment (kN·m) |
|---|---|
| 0 | 0 |
| 2 | 25 |
| 4 | 40 |
| 5 | 45 |
| 6 | 40 |
| 8 | 25 |
| 10 | 0 |
Plotting these values on a graph will give you the Shear Moment Diagram for the beam.
📝 Note: Ensure that the calculations are accurate and the diagrams are drawn to scale for precise analysis.
Applications of Shear Moment Diagrams
The Shear Moment Diagram has numerous applications in various fields of engineering:
- Civil Engineering: Used in the design of bridges, buildings, and other structures to ensure they can withstand the applied loads.
- Mechanical Engineering: Used in the design of machinery and equipment to analyze the stresses and strains.
- Aerospace Engineering: Used in the design of aircraft structures to ensure they can withstand aerodynamic loads.
- Automotive Engineering: Used in the design of vehicle frames and components to ensure they can withstand dynamic loads.
Advanced Topics in Shear Moment Diagrams
For more complex structures, the Shear Moment Diagram can become quite intricate. Advanced topics include:
- Continuous Beams: Beams that are supported at more than two points, requiring a more detailed analysis.
- Indeterminate Structures: Structures where the reactions cannot be determined by static equilibrium alone, requiring additional methods such as the moment distribution method or the slope-deflection method.
- Dynamic Loads: Structures subjected to dynamic loads, such as earthquakes or moving vehicles, require dynamic analysis.
- Non-Uniform Sections: Beams with varying cross-sections, requiring a more detailed analysis of shear forces and bending moments.
These advanced topics often require the use of specialized software and more complex mathematical models.
📝 Note: Advanced analysis often involves iterative processes and the use of computational tools for accurate results.
In conclusion, the Shear Moment Diagram is an indispensable tool in structural analysis, providing valuable insights into the behavior of structures under various loads. By understanding how to construct and interpret these diagrams, engineers can design safe, efficient, and compliant structures. Whether in civil, mechanical, aerospace, or automotive engineering, the Shear Moment Diagram plays a crucial role in ensuring the integrity and performance of structures.
