In the realm of information theory, the Shannon Hartley Theorem stands as a cornerstone, providing a fundamental understanding of the capacity of communication channels. This theorem, named after Claude Shannon and Ralph Hartley, quantifies the maximum rate at which information can be transmitted over a communication channel with a given level of noise. Understanding the Shannon Hartley Theorem is crucial for anyone involved in telecommunications, data transmission, and digital communication systems.
Understanding the Shannon Hartley Theorem

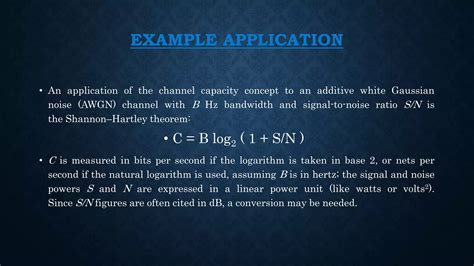

The Shannon Hartley Theorem is a mathematical expression that defines the channel capacity of a communication system. It states that the maximum rate at which information can be transmitted over a noisy channel is given by:
C = B log2(1 + S/N)
Where:
- C is the channel capacity in bits per second (bps).
- B is the bandwidth of the channel in Hertz (Hz).
- S/N is the signal-to-noise ratio (SNR).
This formula tells us that the channel capacity is directly proportional to the bandwidth and the logarithm of the signal-to-noise ratio. In simpler terms, the more bandwidth you have and the higher the signal-to-noise ratio, the more information you can transmit reliably.
Key Components of the Shannon Hartley Theorem
The Shannon Hartley Theorem involves several key components that are essential for understanding its application:
Bandwidth (B)
Bandwidth refers to the range of frequencies that a communication channel can transmit. It is measured in Hertz (Hz) and represents the capacity of the channel to carry information. Higher bandwidth allows for more data to be transmitted per second.
Signal-to-Noise Ratio (S/N)
The signal-to-noise ratio (SNR) is the ratio of the power of the signal to the power of the background noise. It is a critical factor in determining the quality of the communication. A higher SNR means that the signal is stronger relative to the noise, resulting in better transmission quality.
Channel Capacity (C)
Channel capacity is the maximum rate at which information can be transmitted over a communication channel without errors. It is measured in bits per second (bps) and is a fundamental metric in information theory.
Applications of the Shannon Hartley Theorem
The Shannon Hartley Theorem has wide-ranging applications in various fields of communication and information theory. Some of the key areas where this theorem is applied include:
Telecommunications
In telecommunications, the Shannon Hartley Theorem is used to design and optimize communication systems. Engineers use this theorem to determine the maximum data rate that can be achieved over a given channel, taking into account the bandwidth and signal-to-noise ratio. This helps in designing efficient and reliable communication networks.
Data Transmission
In data transmission, the theorem is crucial for understanding the limits of data transfer rates. It helps in selecting the appropriate modulation schemes and error correction techniques to ensure reliable data transmission over noisy channels.
Digital Communication Systems
Digital communication systems, such as wireless networks and fiber-optic communications, rely heavily on the Shannon Hartley Theorem. It provides a theoretical framework for designing systems that can handle high data rates and maintain signal integrity over long distances.
Practical Examples of the Shannon Hartley Theorem
To better understand the Shannon Hartley Theorem, let's consider a few practical examples:
Wireless Communication
In wireless communication, the bandwidth and signal-to-noise ratio are critical factors. For instance, a wireless network operating at 2.4 GHz with a bandwidth of 20 MHz and an SNR of 20 dB can be analyzed using the Shannon Hartley Theorem. The channel capacity can be calculated as follows:
C = 20 MHz * log2(1 + 10^(20/10))
This calculation gives us the maximum data rate that can be achieved under the given conditions.
Fiber-Optic Communication
Fiber-optic communication systems have very high bandwidth and low noise levels, making them ideal for long-distance data transmission. Using the Shannon Hartley Theorem, engineers can determine the maximum data rate that can be transmitted over a fiber-optic cable with a given bandwidth and SNR.
Limitations of the Shannon Hartley Theorem
While the Shannon Hartley Theorem provides a powerful framework for understanding channel capacity, it has some limitations:
- It assumes that the noise is additive white Gaussian noise (AWGN), which may not always be the case in real-world scenarios.
- It does not account for practical constraints such as hardware limitations and implementation losses.
- It provides an upper bound on the channel capacity, but achieving this capacity in practice can be challenging due to various factors.
💡 Note: The Shannon Hartley Theorem is a theoretical model and may not always reflect real-world conditions perfectly. Engineers often use it as a starting point and then apply practical considerations to design communication systems.
Advancements and Extensions
Over the years, there have been several advancements and extensions to the Shannon Hartley Theorem that have expanded its applicability and accuracy. Some of these include:
MIMO Systems
Multiple-input multiple-output (MIMO) systems use multiple antennas to improve the capacity and reliability of wireless communications. The Shannon Hartley Theorem has been extended to MIMO systems to account for the additional spatial dimensions.
Channel Coding
Channel coding techniques, such as error correction codes, are used to improve the reliability of data transmission. These techniques can be analyzed using the Shannon Hartley Theorem to determine the maximum achievable data rate with a given level of error correction.
Adaptive Modulation
Adaptive modulation schemes adjust the modulation parameters based on the channel conditions to optimize the data rate and reliability. The Shannon Hartley Theorem provides a theoretical basis for designing adaptive modulation systems.
Conclusion
The Shannon Hartley Theorem is a fundamental concept in information theory that provides a deep understanding of the capacity of communication channels. By quantifying the maximum rate at which information can be transmitted over a noisy channel, it serves as a cornerstone for designing efficient and reliable communication systems. Whether in telecommunications, data transmission, or digital communication systems, the Shannon Hartley Theorem continues to be a vital tool for engineers and researchers. Its applications and extensions have paved the way for advancements in various fields, making it an indispensable part of modern communication technology.
