Shallow Well Pump

When it comes to water supply systems, especially in rural or semi-rural areas, the shallow well pump stands out as a reliable and efficient solution. These pumps are designed to extract water from shallow wells, typically ranging from 25 to 100 feet deep. They are essential for providing a consistent water supply for domestic use, irrigation, and livestock. Understanding the types, installation, maintenance, and benefits of shallow well pumps can help you make an informed decision for your water needs.

Table of Contents

Understanding Shallow Well Pumps

A shallow well pump is a type of water pump specifically designed to draw water from wells that are not very deep. These pumps are usually submersible, meaning they are placed directly into the well, or they can be jet pumps, which are installed above ground. The choice between these two types depends on various factors, including the depth of the well, the required water flow rate, and the specific needs of the user.

Types of Shallow Well Pumps

There are two primary types of shallow well pumps: submersible pumps and jet pumps. Each has its own advantages and is suited to different scenarios.

Submersible Pumps

Submersible pumps are installed directly into the well. They are fully submerged in water, which helps to cool the motor and reduce noise. These pumps are highly efficient and can handle deeper wells compared to jet pumps. They are also less prone to freezing in cold climates. Submersible pumps are ideal for wells that are deeper than 25 feet and require a high flow rate.

Jet Pumps

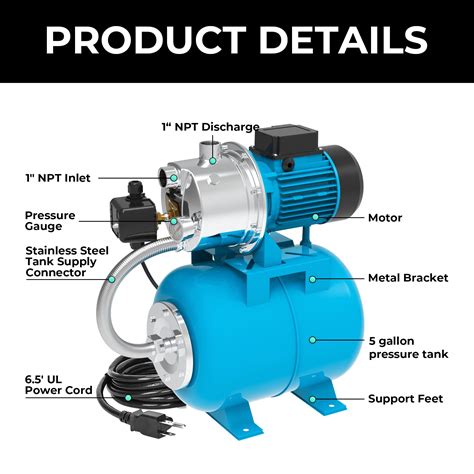

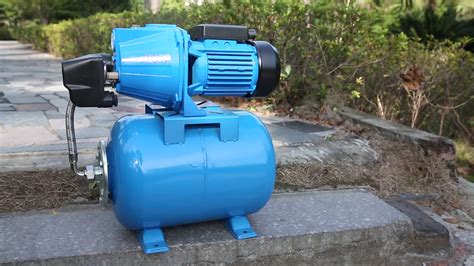

Jet pumps, on the other hand, are installed above ground and use a jet of water to create suction, drawing water from the well. They are simpler to install and maintain compared to submersible pumps. Jet pumps are suitable for shallower wells, typically up to 25 feet deep. They are also more affordable and easier to repair, making them a popular choice for many homeowners.

Installation of Shallow Well Pumps

The installation process for a shallow well pump varies depending on whether you are using a submersible or jet pump. Here are the general steps for each type:

Installing a Submersible Pump

1. Prepare the Well: Ensure the well is clean and free of debris. Measure the depth of the well to determine the appropriate length of the pump and power cable. 2. Assemble the Pump: Attach the pump to the drop pipe and secure the power cable. Ensure all connections are watertight to prevent leaks. 3. Lower the Pump: Carefully lower the pump into the well, ensuring it is fully submerged. Secure the pump at the desired depth using a well seal or other anchoring method. 4. Connect the Power: Connect the power cable to the control box or pressure switch. Ensure all electrical connections are secure and properly grounded. 5. Test the Pump: Turn on the power and test the pump to ensure it is functioning correctly. Check for any leaks or unusual noises.

🔧 Note: Always follow the manufacturer's instructions for specific installation details and safety precautions.

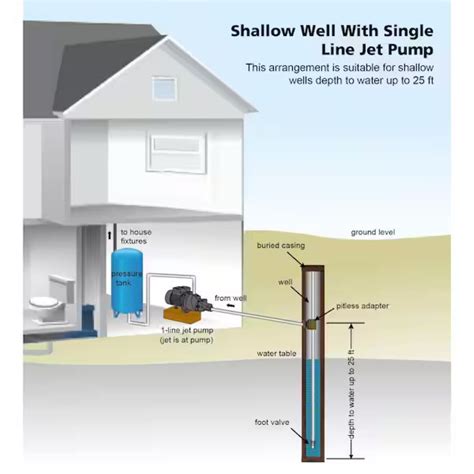

Installing a Jet Pump

1. Prepare the Location: Choose a suitable location for the pump, preferably near the well and protected from the elements. 2. Assemble the Pump: Attach the pump to the suction pipe and secure the power cable. Ensure all connections are tight and secure. 3. Connect the Pipes: Connect the suction pipe to the well and the discharge pipe to the water storage tank or plumbing system. 4. Prime the Pump: Fill the suction pipe and pump with water to prime it. This ensures there is no air in the system, which can affect the pump's performance. 5. Connect the Power: Connect the power cable to the control box or pressure switch. Ensure all electrical connections are secure and properly grounded. 6. Test the Pump: Turn on the power and test the pump to ensure it is functioning correctly. Check for any leaks or unusual noises.

🔧 Note: Jet pumps require regular priming to maintain optimal performance. Ensure the pump is primed before each use.

Maintenance of Shallow Well Pumps

Regular maintenance is crucial to ensure the longevity and efficiency of your shallow well pump. Here are some key maintenance tasks to keep in mind:

Inspect the Pump Regularly: Check for any signs of wear and tear, leaks, or unusual noises. Address any issues promptly to prevent further damage.
Clean the Well: Periodically clean the well to remove any debris or sediment that may accumulate over time. This helps to maintain water quality and pump efficiency.
Check the Electrical Connections: Ensure all electrical connections are secure and free of corrosion. Replace any damaged wires or connectors as needed.
Lubricate Moving Parts: Lubricate any moving parts, such as bearings or seals, to reduce friction and extend the pump's lifespan.
Monitor Water Quality: Regularly test the water quality to ensure it meets safety standards. If necessary, install a water treatment system to remove any contaminants.

By following these maintenance tips, you can ensure your shallow well pump operates efficiently and reliably for years to come.

Benefits of Shallow Well Pumps

Shallow well pumps offer several benefits that make them a popular choice for many homeowners and farmers. Some of the key advantages include:

Cost-Effective: Shallow well pumps are generally more affordable compared to deep well pumps, making them a cost-effective solution for shallow water sources.
Easy Installation: The installation process for shallow well pumps is relatively straightforward, especially for jet pumps, which can be installed above ground.
Reliable Performance: Shallow well pumps are designed to provide a consistent water supply, making them ideal for domestic use, irrigation, and livestock.
Low Maintenance: With regular maintenance, shallow well pumps require minimal upkeep, ensuring long-term reliability and efficiency.
Versatile Applications: Shallow well pumps can be used in a variety of settings, from residential homes to farms and commercial properties.

These benefits make shallow well pumps a practical and efficient choice for many water supply needs.

Choosing the Right Shallow Well Pump

Selecting the right shallow well pump depends on several factors, including the depth of the well, the required water flow rate, and the specific needs of the user. Here are some key considerations to help you choose the right pump:

Well Depth: Determine the depth of your well to choose a pump that can effectively draw water from that depth. Submersible pumps are suitable for deeper wells, while jet pumps are ideal for shallower wells.
Water Flow Rate: Consider the required water flow rate for your needs. Submersible pumps generally provide a higher flow rate compared to jet pumps.
Power Source: Ensure the pump is compatible with your available power source, whether it is electric or solar-powered.
Budget: Set a budget for your pump and consider the long-term costs of maintenance and operation.
Brand and Warranty: Choose a reputable brand that offers a warranty and reliable customer support.

By considering these factors, you can select a shallow well pump that meets your specific needs and provides reliable performance.

Common Issues and Troubleshooting

Even with regular maintenance, shallow well pumps can encounter issues over time. Here are some common problems and troubleshooting tips:

No Water Flow

If your pump is not producing any water flow, check the following:

Power Supply: Ensure the pump is receiving power. Check the circuit breaker and power connections.
Priming: For jet pumps, ensure the pump is properly primed. If necessary, re-prime the pump.
Clogged Pipes: Inspect the suction and discharge pipes for any clogs or obstructions. Clean or replace the pipes as needed.
Well Level: Check the water level in the well. If the water level is too low, the pump may not be able to draw water.

Low Water Pressure

If you are experiencing low water pressure, consider the following:

Air in the System: For jet pumps, air in the system can reduce water pressure. Re-prime the pump to remove any air.
Clogged Filters: Inspect and clean any filters or screens in the pump or plumbing system.
Worn Parts: Check for any worn or damaged parts, such as seals or impellers, and replace them as needed.
Well Condition: Ensure the well is clean and free of debris. Sediment buildup can reduce water flow and pressure.

Unusual Noises

If your pump is making unusual noises, such as grinding or rattling, it may indicate a mechanical issue. Check the following:

Bearings: Inspect the bearings for wear and tear. Replace any damaged bearings.
Impeller: Check the impeller for any damage or obstructions. Clean or replace the impeller as needed.
Motor: Ensure the motor is functioning properly. If necessary, consult a professional for motor repair or replacement.

By addressing these common issues promptly, you can maintain the efficiency and reliability of your shallow well pump.

In conclusion, shallow well pumps are a reliable and efficient solution for water supply needs in shallow wells. Understanding the types, installation, maintenance, and benefits of these pumps can help you make an informed decision for your water needs. Whether you choose a submersible or jet pump, regular maintenance and prompt troubleshooting can ensure long-term performance and reliability. By considering factors such as well depth, water flow rate, and budget, you can select a shallow well pump that meets your specific needs and provides a consistent water supply for years to come.
