Understanding the Sf4 Lewis Structure is fundamental for anyone studying chemistry, particularly those delving into the intricacies of molecular geometry and bonding. The Sf4 Lewis Structure provides a visual representation of how sulfur tetrafluoride (SF4) molecules are arranged, helping to predict their properties and behaviors. This structure is crucial for comprehending the chemical reactions and interactions of SF4 in various contexts.
What is the Sf4 Lewis Structure?

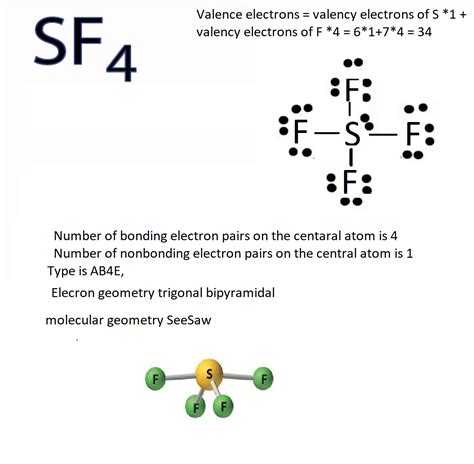

The Sf4 Lewis Structure is a diagram that shows the bonding between atoms in a sulfur tetrafluoride molecule. It uses dots to represent valence electrons and lines to represent covalent bonds. The structure helps in understanding the spatial arrangement of atoms and the distribution of electrons within the molecule.
Steps to Draw the Sf4 Lewis Structure
Drawing the Sf4 Lewis Structure involves several systematic steps. Here’s a detailed guide to help you through the process:
Step 1: Determine the Total Number of Valence Electrons
First, identify the total number of valence electrons in the molecule. Sulfur (S) is in group 16 and has 6 valence electrons. Fluorine (F) is in group 17 and has 7 valence electrons. Since there are four fluorine atoms, the total number of valence electrons is:
6 (from S) + 4 * 7 (from F) = 6 + 28 = 34 valence electrons.
Step 2: Choose the Central Atom
In SF4, sulfur (S) is the central atom because it is the least electronegative element in the molecule.
Step 3: Connect the Central Atom to the Surrounding Atoms
Draw single bonds between the central sulfur atom and each of the four fluorine atoms. This uses up 4 * 2 = 8 valence electrons, leaving 34 - 8 = 26 valence electrons.
Step 4: Distribute the Remaining Valence Electrons
Place the remaining 26 valence electrons around the fluorine atoms to complete their octets. Each fluorine atom needs 6 more electrons to complete its octet, so place 6 electrons around each fluorine atom. This uses up 4 * 6 = 24 valence electrons, leaving 26 - 24 = 2 valence electrons.
Step 5: Place the Remaining Electrons on the Central Atom
Place the remaining 2 valence electrons on the sulfur atom. This gives sulfur a total of 8 valence electrons, completing its octet.
Step 6: Check for Formal Charges
Calculate the formal charges on each atom to ensure the structure is correct. The formal charge is calculated as:
Formal Charge = (Number of valence electrons in free atom) - (Number of lone pair electrons) - (Number of bonding electrons / 2)
For sulfur, the formal charge is 0. For each fluorine atom, the formal charge is also 0. This confirms that the Sf4 Lewis Structure is correct.
📝 Note: The formal charge calculation is crucial for verifying the accuracy of the Lewis structure. Ensure that the sum of formal charges equals the overall charge of the molecule, which is 0 for SF4.
Understanding the Geometry of Sf4
The Sf4 Lewis Structure reveals that the molecule has a seesaw geometry. This geometry is a result of the lone pair of electrons on the sulfur atom and the four bonding pairs. The seesaw shape is characterized by two pairs of atoms at different angles, with the lone pair occupying one of the equatorial positions.
Here is a table summarizing the key points of the Sf4 Lewis Structure and its geometry:
| Property | Description |
|---|---|
| Central Atom | Sulfur (S) |
| Surrounding Atoms | Four Fluorine (F) atoms |
| Total Valence Electrons | 34 |
| Bonding Pairs | 4 |
| Lone Pairs on Central Atom | 1 |
| Geometry | Seesaw |
Applications of the Sf4 Lewis Structure
The Sf4 Lewis Structure has several applications in chemistry and related fields. Understanding this structure helps in predicting the reactivity of SF4, its interactions with other molecules, and its role in chemical reactions. Here are some key applications:
- Predicting Reactivity: The seesaw geometry of SF4 influences its reactivity. The lone pair on the sulfur atom can participate in reactions, making SF4 a potential nucleophile.
- Chemical Bonding: The Sf4 Lewis Structure illustrates the nature of covalent bonding in the molecule, helping to understand the strength and polarity of the bonds.
- Molecular Interactions: The structure provides insights into how SF4 interacts with other molecules, including hydrogen bonding and dipole-dipole interactions.
- Industrial Applications: SF4 is used in various industrial processes, such as etching and cleaning in semiconductor manufacturing. Understanding its structure helps in optimizing these processes.
Common Misconceptions About the Sf4 Lewis Structure
There are several misconceptions about the Sf4 Lewis Structure that can lead to errors in understanding. Here are some common ones:
- Incorrect Geometry: Some students mistakenly assume that SF4 has a tetrahedral geometry like methane (CH4). However, the presence of a lone pair on the sulfur atom distorts the geometry to a seesaw shape.
- Electron Distribution: Another misconception is that all valence electrons are used in bonding. In reality, some electrons remain as lone pairs, which significantly affect the molecule's shape and properties.
- Formal Charges: Ignoring formal charges can lead to incorrect Lewis structures. Always calculate formal charges to ensure the structure is accurate.
📝 Note: Understanding these misconceptions can help avoid common errors in drawing and interpreting the Sf4 Lewis Structure. Always double-check your work to ensure accuracy.
In conclusion, the Sf4 Lewis Structure is a vital tool for understanding the molecular geometry and bonding of sulfur tetrafluoride. By following the steps to draw the structure and understanding its geometry, you can gain insights into the molecule’s properties and reactivity. This knowledge is essential for various applications in chemistry and related fields, making the Sf4 Lewis Structure a fundamental concept for students and professionals alike.
