Series And Parallel Springs

Understanding the behavior of Series and Parallel Springs is fundamental in the fields of mechanical engineering and physics. Springs are essential components in various mechanical systems, from simple tools to complex machinery. Their ability to store and release energy makes them crucial for applications ranging from shock absorption to energy storage. This post delves into the principles governing the behavior of springs in series and parallel configurations, providing a comprehensive guide for engineers and enthusiasts alike.

Understanding Spring Basics

Before diving into Series and Parallel Springs, it’s essential to grasp the basic principles of spring behavior. A spring is a mechanical device that stores energy when compressed or stretched and releases it when the force is removed. The most common type of spring is the helical spring, which follows Hooke’s Law. Hooke’s Law states that the force (F) exerted by a spring is directly proportional to the displacement (x) from its equilibrium position:

F = kx

Where:

F is the force applied to the spring.
k is the spring constant, a measure of the spring’s stiffness.
x is the displacement from the equilibrium position.

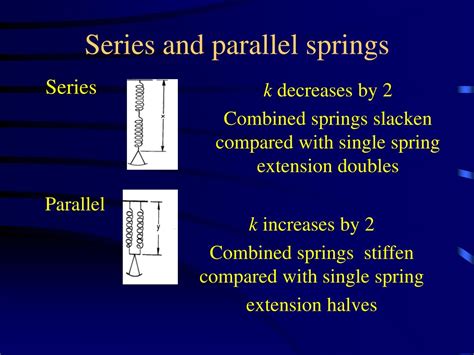

Series and Parallel Springs: Definitions and Configurations

When dealing with multiple springs, they can be arranged in either series or parallel configurations. Each configuration has unique characteristics that affect the overall behavior of the system.

Series Springs

In a series configuration, springs are connected end-to-end. The total displacement of the system is the sum of the displacements of the individual springs. The force applied to the system is the same for each spring, but the displacement varies.

For two springs in series with spring constants k1 and k2, the effective spring constant keff is given by:

1/keff = 1/k1 + 1/k2

This formula can be extended to more than two springs by adding the reciprocals of their spring constants.

Parallel Springs

In a parallel configuration, springs are connected side by side. The total force applied to the system is the sum of the forces exerted by each spring, but the displacement is the same for all springs. The effective spring constant for parallel springs is the sum of the individual spring constants.

For two springs in parallel with spring constants k1 and k2, the effective spring constant keff is given by:

keff = k1 + k2

This formula can also be extended to more than two springs by summing their spring constants.

Applications of Series and Parallel Springs

The principles of Series and Parallel Springs are applied in various engineering and mechanical systems. Understanding these configurations is crucial for designing efficient and reliable systems.

Shock Absorption Systems

In automotive and aerospace engineering, shock absorption systems often use a combination of series and parallel springs to absorb and dissipate energy. For example, a car’s suspension system may use a combination of coil springs (parallel) and leaf springs (series) to provide a smooth ride and maintain stability.

Energy Storage Devices

Energy storage devices, such as spring-loaded mechanisms in toys and tools, often use series and parallel springs to store and release energy efficiently. The configuration of springs can be optimized to achieve the desired energy storage and release characteristics.

Mechanical Vibration Isolation

In mechanical systems, vibration isolation is crucial for reducing the transmission of vibrations from one part of the system to another. Series and parallel springs can be used to design vibration isolation systems that minimize the impact of vibrations on sensitive components.

Analyzing Series and Parallel Springs

To analyze the behavior of Series and Parallel Springs, it’s essential to understand how to calculate the effective spring constant and displacement for each configuration.

Calculating Effective Spring Constant

The effective spring constant for series and parallel springs can be calculated using the formulas provided earlier. For more complex systems with multiple springs, the calculations can be extended by adding the reciprocals of the spring constants for series springs and summing the spring constants for parallel springs.

Calculating Displacement

For series springs, the total displacement is the sum of the displacements of the individual springs. For parallel springs, the displacement is the same for all springs. The displacement can be calculated using Hooke’s Law:

x = F / k

Where F is the force applied to the spring, and k is the effective spring constant.

Example Calculations

Let’s consider an example to illustrate the calculations for Series and Parallel Springs. Suppose we have two springs with spring constants k1 = 200 N/m and k2 = 300 N/m.

Series Configuration

For springs in series, the effective spring constant is calculated as follows:

1/keff = ¹⁄₂₀₀ + ¹⁄₃₀₀

1/keff = 0.005 + 0.00333

1/keff = 0.00833

keff = 120 N/m

If a force of F = 100 N is applied to the system, the total displacement is:

x = F / keff

x = 100 / 120

x = 0.833 m

Parallel Configuration

For springs in parallel, the effective spring constant is calculated as follows:

keff = 200 + 300

keff = 500 N/m

If a force of F = 100 N is applied to the system, the total displacement is:

x = F / keff

x = 100 / 500

x = 0.2 m

💡 Note: These calculations assume ideal conditions where the springs follow Hooke's Law perfectly. In real-world applications, factors such as friction, material fatigue, and non-linear behavior may affect the results.

Advanced Topics in Series and Parallel Springs

Beyond the basic principles, there are advanced topics and considerations in the study of Series and Parallel Springs. These include non-linear behavior, damping, and dynamic analysis.

Non-Linear Behavior

In real-world applications, springs may not always follow Hooke’s Law, especially under large displacements or high loads. Non-linear behavior can be modeled using more complex equations that account for the spring’s material properties and geometry.

Damping

Damping is the dissipation of energy in a mechanical system, often due to friction or other resistive forces. In spring systems, damping can be modeled using dashpots, which are mechanical devices that resist motion. The combination of springs and dashpots can be analyzed using differential equations to understand the system’s dynamic behavior.

Dynamic Analysis

Dynamic analysis involves studying the behavior of spring systems under time-varying forces. This is crucial for applications such as vibration isolation and control systems. Dynamic analysis can be performed using techniques such as Fourier analysis, Laplace transforms, and numerical simulations.

Conclusion

Understanding the behavior of Series and Parallel Springs is essential for designing efficient and reliable mechanical systems. By grasping the basic principles and advanced topics, engineers can optimize spring configurations for various applications, from shock absorption to energy storage. The effective spring constant and displacement calculations provide a foundation for analyzing and designing spring systems, ensuring they meet the required performance criteria. Whether in automotive, aerospace, or other engineering fields, the principles of series and parallel springs are fundamental to achieving optimal mechanical performance.
