Understanding the intricacies of a septic tank system is crucial for homeowners who rely on these systems for wastewater management. A septic tank diagram is an essential tool that provides a visual representation of the system's components and their functions. This guide will walk you through the key elements of a septic tank diagram, helping you grasp how these systems work and how to maintain them effectively.
Understanding the Basics of a Septic Tank System
A septic tank system is a decentralized wastewater treatment system commonly used in rural and suburban areas where municipal sewer systems are not available. The primary components of a septic tank system include the septic tank itself, the drain field, and the distribution box. Each of these components plays a vital role in treating and disposing of household wastewater.
The Septic Tank Diagram: Key Components
A septic tank diagram typically includes several key components. Understanding these components is essential for maintaining the system's efficiency and longevity.
The Septic Tank
The septic tank is the heart of the system. It is a large, underground, watertight container made of concrete, fiberglass, or plastic. The tank is designed to hold wastewater long enough to allow solids to settle to the bottom, forming sludge, and lighter materials like oils and grease to float to the top, forming scum. The liquid in the middle, known as effluent, flows out of the tank into the drain field.
The Inlet and Outlet Pipes
The inlet pipe carries wastewater from the house to the septic tank. It enters the tank through an inlet baffle, which helps to disperse the wastewater evenly and prevents solids from flowing directly into the tank. The outlet pipe, located on the opposite side of the tank, carries the effluent to the drain field. An outlet baffle ensures that only the clarified effluent exits the tank, preventing solids from entering the drain field.
The Distribution Box
The distribution box is a chamber that receives effluent from the septic tank and distributes it evenly across the drain field. This ensures that the drain field is used efficiently and prevents overloading any single area, which could lead to system failure.
The Drain Field
The drain field, also known as the leach field, is a series of perforated pipes buried in gravel-filled trenches. The effluent from the distribution box flows into these pipes, where it is further treated by the soil. The soil acts as a natural filter, removing harmful bacteria, viruses, and nutrients from the effluent before it reaches the groundwater.
How a Septic Tank System Works
Understanding how a septic tank system works is essential for maintaining its efficiency. Here is a step-by-step overview of the process:
- Wastewater Collection: Wastewater from the house, including water from toilets, sinks, showers, and washing machines, flows into the septic tank through the inlet pipe.
- Settling and Separation: Inside the septic tank, solids settle to the bottom, forming sludge, while lighter materials float to the top, forming scum. The liquid in the middle, known as effluent, is relatively clear.
- Effluent Discharge: The effluent flows out of the septic tank through the outlet pipe and into the distribution box.
- Distribution: The distribution box distributes the effluent evenly across the drain field.
- Soil Treatment: The effluent percolates through the soil in the drain field, where it is further treated by natural processes. The soil removes harmful contaminants before the treated water reaches the groundwater.
Maintaining Your Septic Tank System
Maintaining your septic tank system is crucial for its longevity and efficiency. Regular maintenance can prevent costly repairs and ensure that the system continues to function properly. Here are some key maintenance tips:
Regular Inspections
Regular inspections by a professional can help identify potential issues before they become major problems. It is recommended to have your septic tank inspected every 1-3 years, depending on the size of your household and the usage of the system.
Pumping the Septic Tank
Over time, the sludge and scum in the septic tank accumulate and need to be removed. The frequency of pumping depends on the size of the tank and the number of people using the system. As a general rule, septic tanks should be pumped every 3-5 years. However, this can vary, so it is essential to consult with a professional to determine the appropriate pumping schedule for your system.
📝 Note: Regular pumping helps prevent solids from entering the drain field, which can clog the system and lead to failure.
Water Conservation
Conserving water can help extend the life of your septic tank system. Excessive water use can overload the system, leading to premature failure. Here are some water conservation tips:
- Fix leaks promptly.
- Install low-flow fixtures.
- Spread out laundry loads throughout the week.
- Avoid running multiple water-using appliances simultaneously.
Proper Waste Disposal
What you put down your drains can significantly impact the health of your septic tank system. Avoid disposing of the following items:
- Grease and oils.
- Coffee grounds.
- Dental floss.
- Cat litter.
- Chemicals and harsh cleaners.
- Paint and solvents.
These items can clog the system, disrupt the natural bacterial processes, or contaminate the groundwater.
Troubleshooting Common Septic Tank Issues
Even with regular maintenance, septic tank systems can encounter issues. Here are some common problems and their potential solutions:
Slow Drains
Slow drains can indicate a clogged pipe or a full septic tank. If you notice that your drains are slow, try the following:
- Check for clogs in the pipes.
- Have the septic tank pumped if it is full.
Foul Odors
Foul odors coming from the drains or the septic tank area can indicate a problem with the system. Possible causes include:
- A full septic tank.
- A clogged vent pipe.
- A cracked or damaged septic tank.
If you notice foul odors, contact a professional to inspect the system.
Wet Spots in the Yard
Wet spots in the yard, especially near the drain field, can indicate a problem with the septic tank system. Possible causes include:
- An overloaded system.
- A clogged drain field.
- A cracked or damaged septic tank.
If you notice wet spots, have the system inspected by a professional.
Septic Tank Diagram: A Visual Guide

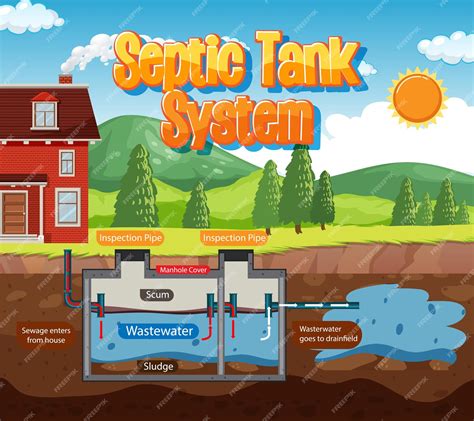

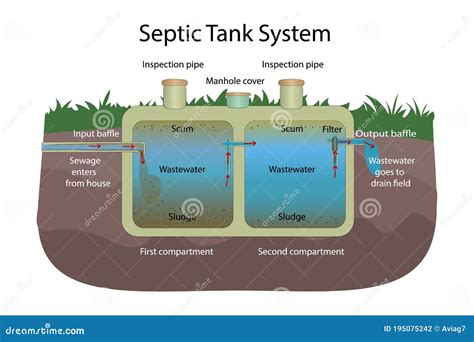

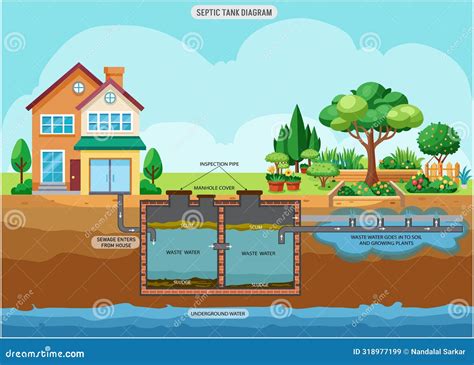

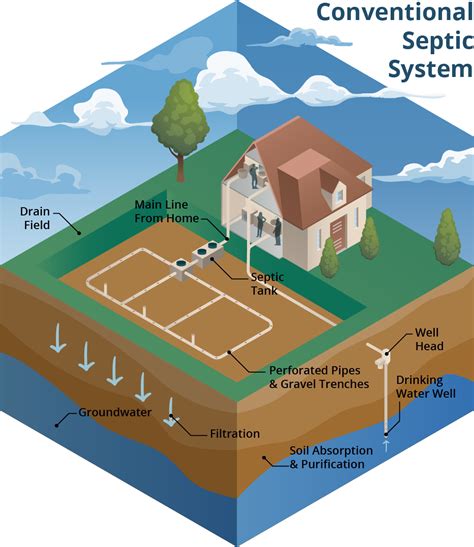

A septic tank diagram is a valuable tool for understanding the layout and components of your septic tank system. Below is a simplified diagram to help you visualize the system:
This diagram illustrates the key components of a septic tank system, including the septic tank, inlet and outlet pipes, distribution box, and drain field. Understanding this diagram can help you better maintain your system and identify potential issues.
📝 Note: The specific layout and components of your septic tank system may vary, so it is essential to consult with a professional for a detailed diagram of your system.
Conclusion
Understanding the components and functions of a septic tank system, as illustrated in a septic tank diagram, is essential for maintaining its efficiency and longevity. Regular inspections, pumping, water conservation, and proper waste disposal are key to keeping your system in good working order. By following these guidelines and being aware of common issues, you can ensure that your septic tank system continues to function effectively, providing reliable wastewater treatment for your home.
