Schottky Barrier Diode

In the realm of electronics, the Schottky Barrier Diode stands out as a crucial component, particularly in applications requiring high-speed switching and low forward voltage drop. This type of diode is named after Walter H. Schottky, who first described the phenomenon in the 1930s. Unlike conventional diodes, which use a p-n junction, Schottky diodes utilize a metal-semiconductor junction. This fundamental difference imparts unique characteristics that make them indispensable in various electronic circuits.

Understanding Schottky Barrier Diodes

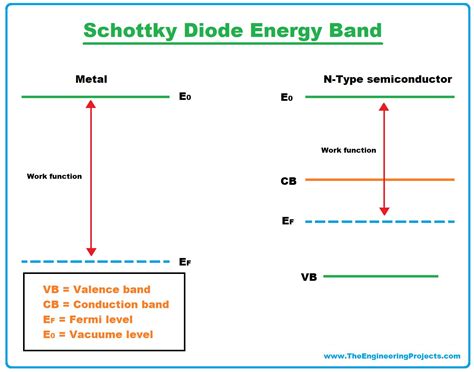

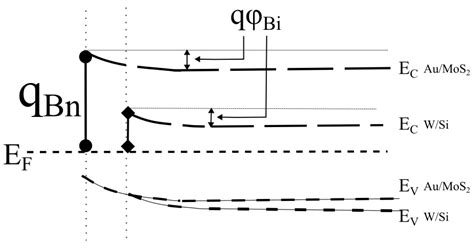

A Schottky Barrier Diode is a semiconductor diode formed by the junction of a semiconductor with a metal. The metal-semiconductor junction creates a potential barrier, known as the Schottky barrier, which allows electrons to flow easily in one direction but restricts their flow in the opposite direction. This behavior is similar to that of a conventional p-n junction diode but with distinct advantages.

Key Characteristics of Schottky Barrier Diodes

The primary characteristics that set Schottky Barrier Diodes apart from conventional diodes include:

• Low Forward Voltage Drop: Schottky diodes have a lower forward voltage drop compared to silicon diodes. This results in reduced power dissipation and improved efficiency, making them ideal for applications where power loss is a concern.
• Fast Switching Speed: The metal-semiconductor junction in Schottky diodes allows for faster switching speeds. This makes them suitable for high-frequency applications, such as rectifiers in power supplies and RF circuits.
• Low Reverse Recovery Time: Schottky diodes exhibit a very low reverse recovery time, which means they can switch from forward to reverse bias quickly without significant power loss. This is particularly beneficial in switching power supplies and other high-speed circuits.
• Temperature Sensitivity: Schottky diodes are more sensitive to temperature changes compared to silicon diodes. This sensitivity can affect their performance in high-temperature environments, so careful consideration is needed when designing circuits for such conditions.

Applications of Schottky Barrier Diodes

The unique properties of Schottky Barrier Diodes make them suitable for a wide range of applications. Some of the most common uses include:

• Rectifiers in Power Supplies: Schottky diodes are often used in rectifier circuits due to their low forward voltage drop and fast switching speed. This results in more efficient power conversion and reduced heat generation.
• RF and Microwave Circuits: The high-frequency capabilities of Schottky diodes make them ideal for use in radio frequency (RF) and microwave circuits. They are commonly found in mixers, detectors, and switches in communication systems.
• Clamping and Protection Circuits: Schottky diodes are used in clamping and protection circuits to safeguard sensitive components from voltage spikes and transient events. Their fast response time makes them effective in protecting against sudden voltage changes.
• Solar Cells: In photovoltaic applications, Schottky diodes are used to prevent reverse current flow, ensuring that the solar cells operate efficiently even in low-light conditions.

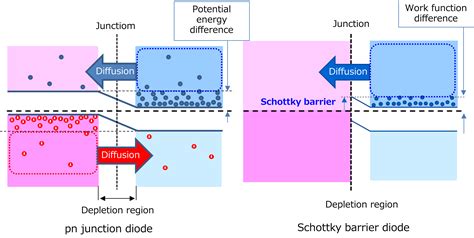

Comparison with Conventional Diodes

To better understand the advantages of Schottky Barrier Diodes, it is helpful to compare them with conventional p-n junction diodes. The following table highlights the key differences:

As shown in the table, Schottky Barrier Diodes offer significant advantages in terms of forward voltage drop, switching speed, and reverse recovery time. However, their higher temperature sensitivity must be considered when designing circuits for high-temperature environments.

Design Considerations for Schottky Barrier Diodes

When incorporating Schottky Barrier Diodes into electronic circuits, several design considerations must be taken into account to ensure optimal performance:

• Forward Voltage Drop: While the low forward voltage drop is an advantage, it is essential to ensure that the circuit can handle the reduced voltage. This may require adjustments to the power supply and other components.
• Reverse Bias Voltage: Schottky diodes have a lower reverse bias voltage rating compared to conventional diodes. Care must be taken to ensure that the reverse voltage does not exceed the diode's rating, as this can lead to breakdown and failure.
• Temperature Management: Due to their temperature sensitivity, it is crucial to manage the thermal environment of Schottky diodes. This may involve using heat sinks, proper ventilation, or other cooling methods to maintain optimal operating temperatures.
• Parasitic Capacitance: Schottky diodes can exhibit parasitic capacitance, which can affect their performance in high-frequency applications. Designers must consider this capacitance and compensate for it in the circuit design.

🔍 Note: When selecting a Schottky Barrier Diode for a specific application, it is important to review the datasheet carefully to ensure that the diode's characteristics match the requirements of the circuit. Pay particular attention to the forward voltage drop, reverse bias voltage rating, and temperature coefficients.

Common Types of Schottky Barrier Diodes

Schottky Barrier Diodes come in various types, each designed for specific applications. Some of the most common types include:

• Standard Schottky Diodes: These are general-purpose diodes used in a wide range of applications, including rectifiers, clamps, and protection circuits.
• Low-Voltage Schottky Diodes: Designed for applications requiring very low forward voltage drop, these diodes are often used in low-voltage power supplies and battery-powered devices.
• High-Current Schottky Diodes: These diodes are capable of handling high currents and are used in applications such as power supplies, motor drives, and solar inverters.
• High-Frequency Schottky Diodes: Optimized for high-frequency applications, these diodes are used in RF and microwave circuits, including mixers, detectors, and switches.

Each type of Schottky Barrier Diode has its unique characteristics and is suited for specific applications. Selecting the right type of diode is crucial for achieving optimal performance in the circuit.

Testing and Measurement of Schottky Barrier Diodes

To ensure the proper functioning of Schottky Barrier Diodes in a circuit, it is essential to perform testing and measurement. Some common tests and measurements include:

• Forward Voltage Drop Measurement: This test measures the voltage drop across the diode when it is forward-biased. It helps verify that the diode is functioning correctly and that the forward voltage drop is within the specified range.
• Reverse Bias Leakage Current Measurement: This test measures the current flowing through the diode when it is reverse-biased. It ensures that the diode is not leaking current, which could indicate a failure or degradation.
• Temperature Coefficient Measurement: This test measures how the diode's characteristics change with temperature. It is crucial for applications where the diode will operate in varying temperature conditions.
• Switching Speed Measurement: This test measures the diode's switching speed, ensuring that it can handle the required switching frequency in high-speed applications.

Regular testing and measurement of Schottky Barrier Diodes help maintain the reliability and performance of electronic circuits. It is essential to follow the manufacturer's guidelines for testing and measurement to ensure accurate results.

🔍 Note: When performing tests and measurements on Schottky Barrier Diodes, it is important to use calibrated equipment and follow proper safety procedures to avoid damage to the diode or the test equipment.

Future Trends in Schottky Barrier Diodes

The field of electronics is continually evolving, and Schottky Barrier Diodes are no exception. Several trends are shaping the future of these diodes, including:

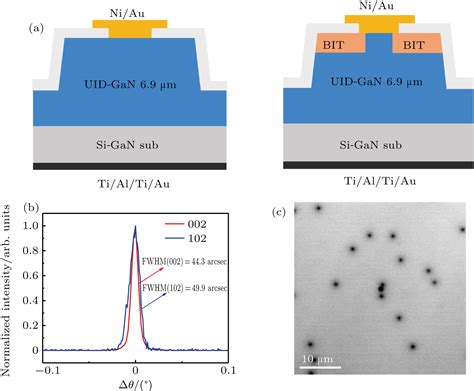

• Advanced Materials: Research is ongoing to develop new materials for Schottky diodes that offer improved performance characteristics, such as lower forward voltage drop, higher current handling capability, and better temperature stability.
• Integration with Other Components: The integration of Schottky diodes with other components, such as transistors and capacitors, is becoming more common. This integration can lead to more compact and efficient circuits.
• High-Frequency Applications: As the demand for high-frequency and high-speed circuits grows, so does the need for Schottky diodes that can operate at even higher frequencies. Advances in materials and design are making this possible.
• Environmental Considerations: There is a growing focus on developing Schottky diodes that are more environmentally friendly, with reduced energy consumption and lower environmental impact.

These trends are driving innovation in the field of Schottky Barrier Diodes, leading to new applications and improved performance in existing ones.

In conclusion, Schottky Barrier Diodes play a crucial role in modern electronics, offering unique advantages in terms of low forward voltage drop, fast switching speed, and low reverse recovery time. Their applications range from power supplies and RF circuits to solar cells and protection circuits. Understanding the characteristics, design considerations, and testing methods for Schottky diodes is essential for leveraging their full potential in electronic designs. As technology advances, the future of Schottky diodes looks promising, with ongoing research and development paving the way for even more efficient and versatile components.
