Scanning Tunneling Spectroscopy

Scanning Tunneling Spectroscopy (STS) is a powerful technique used to study the electronic structure of materials at the atomic scale. It provides detailed information about the local density of states (LDOS) and the energy-dependent electronic properties of surfaces. This technique has revolutionized the field of surface science and materials research, offering unprecedented insights into the behavior of electrons in various materials.

Table of Contents

Understanding Scanning Tunneling Spectroscopy

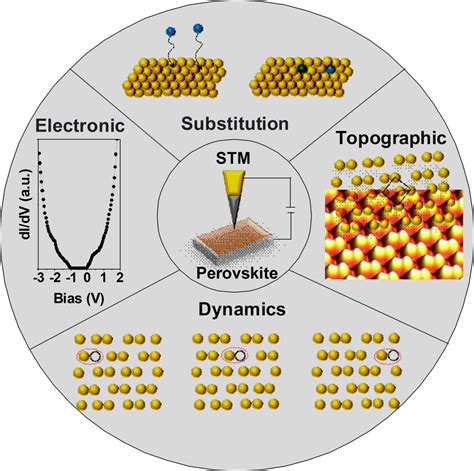

Scanning Tunneling Spectroscopy is an extension of Scanning Tunneling Microscopy (STM), which was developed in the early 1980s. While STM provides topographical images of surfaces with atomic resolution, STS goes a step further by measuring the tunneling current as a function of voltage. This allows researchers to probe the electronic structure of materials with high spatial and energy resolution.

Principles of Scanning Tunneling Spectroscopy

The fundamental principle behind STS is the quantum mechanical phenomenon of tunneling. When a sharp metallic tip is brought close to a conductive surface, electrons can tunnel through the vacuum gap between the tip and the surface. The tunneling current (I) is highly sensitive to the distance (d) between the tip and the surface, following an exponential relationship: I ∝ exp(-2d/λ), where λ is the decay length of the electron wave function.

In STS, the tunneling current is measured as a function of the applied bias voltage (V). The differential conductance (dI/dV) is proportional to the LDOS of the sample at the energy corresponding to the bias voltage. By sweeping the bias voltage and measuring the differential conductance, researchers can obtain a spectrum that reveals the electronic structure of the material.

Experimental Setup

The experimental setup for STS is similar to that of STM. It consists of a sharp metallic tip, a piezoelectric scanner, and a feedback system to maintain a constant tunneling current. The key components are:

Scanning Tunneling Microscope (STM): The STM provides the basic platform for STS experiments. It includes a sharp metallic tip, typically made of tungsten or platinum-iridium, and a piezoelectric scanner that allows precise control of the tip's position.
Feedback System: The feedback system maintains a constant tunneling current by adjusting the tip-sample distance. This ensures that the measured current is solely due to the electronic structure of the sample.
Lock-in Amplifier: A lock-in amplifier is used to measure the differential conductance. It applies a small modulation voltage to the bias voltage and detects the resulting modulation in the tunneling current. The lock-in amplifier provides high sensitivity and noise rejection, enabling precise measurements of the differential conductance.
Data Acquisition System: The data acquisition system records the tunneling current and differential conductance as a function of the bias voltage. It also controls the scanning parameters and synchronizes the data collection.

Data Analysis

The data obtained from STS experiments are typically presented as spectra of differential conductance (dI/dV) versus bias voltage (V). These spectra provide valuable information about the electronic structure of the material. Key features in the spectra include:

Peaks and Valleys: Peaks in the dI/dV spectrum correspond to states with high LDOS, while valleys indicate regions with low LDOS. These features can be associated with specific electronic states or bands in the material.
Gap States: In semiconductors and insulators, the dI/dV spectrum may show a gap around the Fermi level, corresponding to the band gap of the material. The width of the gap provides information about the band gap energy.
Surface States: Surface states, which are localized at the surface of the material, can also be observed in STS spectra. These states often appear as sharp peaks or resonances in the spectrum.

To extract meaningful information from STS data, researchers often perform additional analysis, such as:

Background Subtraction: The raw dI/dV spectra may contain background contributions from the tip and other experimental artifacts. Background subtraction techniques are used to isolate the true electronic structure of the sample.
Deconvolution: The measured dI/dV spectra may be broadened due to thermal and instrumental effects. Deconvolution techniques can be used to recover the intrinsic line shape of the electronic states.
Comparison with Theory: STS spectra can be compared with theoretical calculations, such as density functional theory (DFT), to gain deeper insights into the electronic structure of the material. This comparison helps validate theoretical models and refine our understanding of the material's properties.

📝 Note: The accuracy of STS data analysis depends on the quality of the experimental setup and the calibration of the instruments. Regular calibration and maintenance of the STM and lock-in amplifier are essential for obtaining reliable results.

Applications of Scanning Tunneling Spectroscopy

Scanning Tunneling Spectroscopy has a wide range of applications in materials science, surface science, and nanotechnology. Some of the key areas where STS is used include:

Semiconductors: STS is used to study the electronic structure of semiconductors, including band gaps, surface states, and doping profiles. This information is crucial for the development of new semiconductor devices and technologies.
Superconductors: In superconductors, STS can probe the superconducting gap and the density of states within the gap. This provides insights into the pairing mechanism and the nature of superconductivity in different materials.
Magnetic Materials: STS can be used to study the magnetic properties of materials by measuring the spin-polarized tunneling current. This technique, known as spin-polarized STS, provides information about the magnetic structure and spin-dependent electronic states.
Molecular Electronics: In molecular electronics, STS is used to study the electronic properties of individual molecules and molecular assemblies. This includes measuring the energy levels, transport properties, and interactions between molecules.
Two-Dimensional Materials: STS is particularly useful for studying two-dimensional materials, such as graphene and transition metal dichalcogenides (TMDs). These materials exhibit unique electronic properties that can be probed with high spatial resolution using STS.

Advances in Scanning Tunneling Spectroscopy

Over the years, significant advances have been made in STS technology, enhancing its capabilities and expanding its applications. Some of the recent developments include:

Low-Temperature STS: Low-temperature STS allows for the study of materials at cryogenic temperatures, reducing thermal broadening and improving the resolution of electronic states. This is particularly important for studying superconductors and other low-temperature phenomena.
High-Resolution STS: High-resolution STS techniques, such as Fourier-transform STS (FT-STS), provide detailed information about the spatial distribution of electronic states. This enables the study of complex electronic structures and quasiparticle interference patterns.
Spin-Polarized STS: Spin-polarized STS uses a magnetized tip to measure the spin-dependent electronic structure of materials. This technique is crucial for studying magnetic materials and spintronic devices.
In Situ STS: In situ STS allows for the study of materials under controlled environmental conditions, such as ultra-high vacuum or specific gas atmospheres. This enables the investigation of surface reactions, adsorption processes, and other dynamic phenomena.

These advancements have significantly enhanced the capabilities of STS, making it a versatile and powerful tool for studying the electronic structure of materials at the atomic scale.

Challenges and Limitations

Despite its many advantages, STS also faces several challenges and limitations. Some of the key issues include:

Tip Artifacts: The sharp metallic tip used in STS can introduce artifacts into the measured spectra. These artifacts can arise from the electronic structure of the tip itself or from interactions between the tip and the sample.
Surface Contamination: The presence of contaminants on the sample surface can affect the STS measurements. Contaminants can alter the electronic structure and introduce additional states, leading to misleading results.
Thermal and Mechanical Stability: The stability of the STM setup is crucial for obtaining high-quality STS data. Thermal and mechanical vibrations can cause drifts in the tip-sample distance, leading to artifacts in the spectra.
Data Interpretation: Interpreting STS data can be challenging, especially for complex materials with intricate electronic structures. Accurate interpretation requires a deep understanding of the material's properties and the experimental setup.

Addressing these challenges requires careful experimental design, precise calibration, and advanced data analysis techniques. Researchers continue to develop new methods and technologies to overcome these limitations and enhance the capabilities of STS.

📝 Note: Regular maintenance and calibration of the STM and associated equipment are essential for minimizing artifacts and ensuring the reliability of STS measurements.

Future Directions

The future of Scanning Tunneling Spectroscopy holds great promise, with ongoing research and development aimed at further enhancing its capabilities. Some of the exciting directions include:

Combining STS with Other Techniques: Integrating STS with other surface science techniques, such as photoemission spectroscopy and infrared spectroscopy, can provide complementary information and a more comprehensive understanding of the material's properties.
In Situ and Operando Studies: Developing in situ and operando STS techniques will enable the study of materials under realistic operating conditions, providing insights into dynamic processes and real-world applications.
Machine Learning and Data Analysis: Applying machine learning algorithms to STS data analysis can help identify patterns, predict properties, and uncover hidden features in the electronic structure of materials.
New Materials and Phenomena: Exploring new materials and phenomena, such as topological insulators, quantum materials, and two-dimensional heterostructures, will expand the scope of STS and reveal new insights into the electronic properties of matter.

As research continues to advance, STS will remain a cornerstone technique in the study of electronic structure, driving innovation and discovery in materials science and nanotechnology.

In conclusion, Scanning Tunneling Spectroscopy is a powerful and versatile technique for studying the electronic structure of materials at the atomic scale. Its ability to provide detailed information about the local density of states and energy-dependent electronic properties makes it an invaluable tool for researchers in materials science, surface science, and nanotechnology. By overcoming the challenges and limitations of STS and leveraging its strengths, researchers can continue to push the boundaries of our understanding of the electronic properties of matter, paving the way for new discoveries and technological advancements.
