Understanding the properties of steam is crucial in various engineering and industrial applications. One of the most essential tools for this purpose is the Saturated Steam Table. This table provides comprehensive data on the thermodynamic properties of saturated steam at different pressures and temperatures. Whether you are an engineer, a student, or a professional in the field, mastering the use of the Saturated Steam Table can significantly enhance your ability to design and optimize systems involving steam.
What is Saturated Steam?
Saturated steam is steam that is in equilibrium with liquid water at a given temperature and pressure. This means that the steam and the liquid water coexist in a state where any addition or removal of heat will cause a phase change without altering the temperature. Understanding the properties of saturated steam is fundamental for applications such as power generation, heating systems, and industrial processes.
Importance of the Saturated Steam Table
The Saturated Steam Table is a vital reference tool that lists the properties of saturated steam at various pressures and temperatures. These properties include:
- Temperature
- Pressure
- Specific Volume
- Enthalpy
- Entropy
- Internal Energy
By consulting the Saturated Steam Table, engineers and technicians can determine the exact conditions under which steam will behave, allowing for precise calculations and design optimizations.

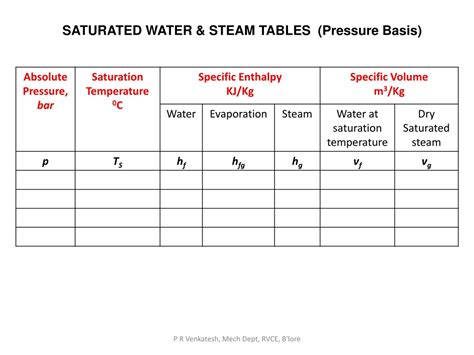

Key Properties Listed in the Saturated Steam Table
The Saturated Steam Table typically includes the following key properties:
- Temperature (T): The temperature at which the steam is saturated.
- Pressure (P): The pressure at which the steam is saturated.
- Specific Volume (v): The volume occupied by a unit mass of saturated steam.
- Enthalpy (h): The total heat content of the saturated steam.
- Entropy (s): A measure of the disorder or randomness in the system.
- Internal Energy (u): The energy contained within the steam, excluding the energy required to displace its surroundings.
How to Use the Saturated Steam Table
Using the Saturated Steam Table involves locating the specific pressure or temperature of interest and reading the corresponding properties. Here is a step-by-step guide:
- Identify the pressure or temperature of the saturated steam you are working with.
- Locate the corresponding row or column in the Saturated Steam Table.
- Read the values for specific volume, enthalpy, entropy, and internal energy.
- Use these values in your calculations or analyses.
For example, if you need to find the enthalpy of saturated steam at a pressure of 100 kPa, you would look up the pressure in the table and read the corresponding enthalpy value.
📝 Note: Ensure that the units of pressure and temperature in the table match those used in your calculations to avoid errors.

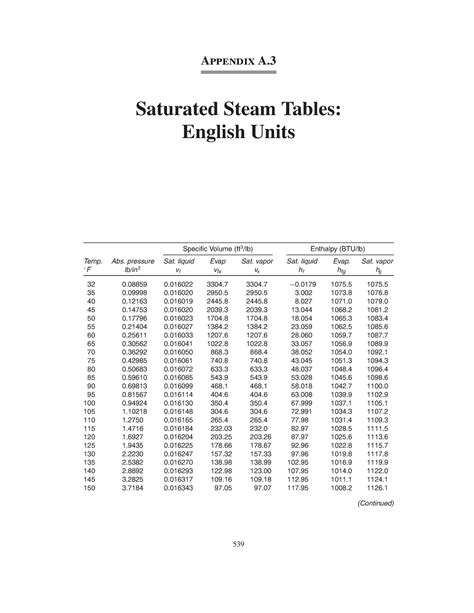

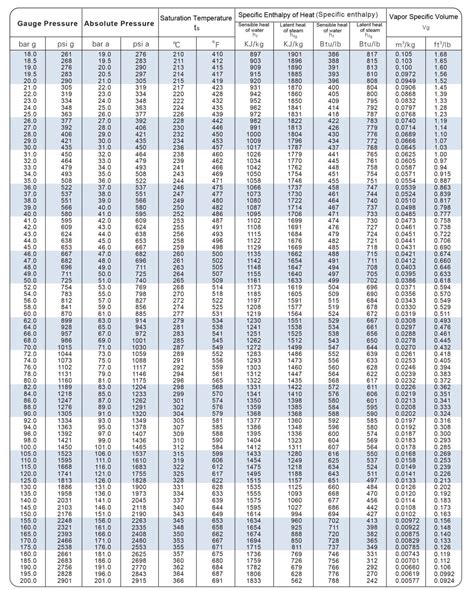

Example of a Saturated Steam Table
Below is a simplified example of what a Saturated Steam Table might look like:
| Pressure (kPa) | Temperature (°C) | Specific Volume (m³/kg) | Enthalpy (kJ/kg) | Entropy (kJ/kg·K) | Internal Energy (kJ/kg) |
|---|---|---|---|---|---|
| 10 | 45.81 | 14.672 | 2584.7 | 8.1501 | 2392.8 |
| 100 | 99.63 | 1.672 | 2675.5 | 7.3549 | 2506.1 |
| 500 | 151.83 | 0.3749 | 2748.1 | 6.5864 | 2524.5 |
| 1000 | 179.91 | 0.1944 | 2778.1 | 6.0568 | 2563.3 |
Applications of the Saturated Steam Table
The Saturated Steam Table is used in a wide range of applications, including:
- Power Generation: In steam power plants, the table helps in determining the efficiency and performance of turbines and boilers.
- Heating Systems: For designing and optimizing heating systems that use steam as the heat transfer medium.
- Industrial Processes: In various industrial processes where steam is used for heating, sterilization, or as a working fluid.
- Refrigeration and Air Conditioning: In systems that use steam as a refrigerant or for cooling purposes.
Advanced Topics in Saturated Steam
For those looking to delve deeper into the properties of saturated steam, there are several advanced topics to explore:
- Superheated Steam: Steam that is heated beyond the saturation point, resulting in higher temperatures and pressures.
- Wet Steam: Steam that contains droplets of liquid water, which can affect its thermodynamic properties.
- Steam Quality: A measure of the dryness of steam, indicating the proportion of vapor to liquid in a steam-water mixture.
Understanding these advanced topics can provide a more comprehensive understanding of steam behavior and its applications.
📝 Note: Advanced topics often require a deeper understanding of thermodynamics and may involve more complex calculations and analyses.
Conclusion
The Saturated Steam Table is an indispensable tool for anyone working with steam in engineering and industrial applications. By providing detailed thermodynamic properties at various pressures and temperatures, it enables precise calculations and optimizations. Whether you are designing a power plant, optimizing a heating system, or conducting research, mastering the use of the Saturated Steam Table can significantly enhance your effectiveness and accuracy. Understanding the key properties listed in the table and knowing how to use it effectively are crucial steps in leveraging the full potential of steam in various applications.
