S Cam Brakes

Braking systems are a critical component of any vehicle, ensuring safety and control on the road. Among the various types of braking systems available, S Cam Brakes stand out for their unique design and effectiveness. This blog post delves into the intricacies of S Cam Brakes, their advantages, maintenance tips, and how they compare to other braking systems.

Table of Contents

Understanding S Cam Brakes

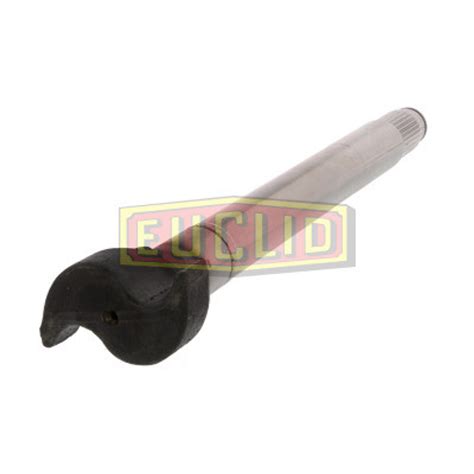

S Cam Brakes are a type of drum brake system commonly used in heavy-duty vehicles such as trucks and buses. The name "S Cam" comes from the shape of the camshaft, which resembles the letter "S." This design allows for a more efficient transfer of force from the brake pedal to the brake shoes, resulting in better braking performance.

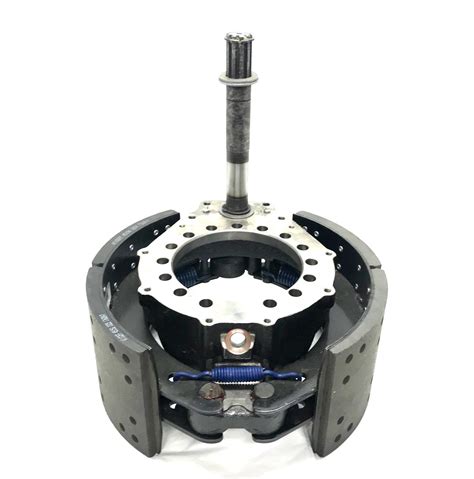

S Cam Brakes operate through a series of mechanical components:

The brake pedal is pressed, activating the brake chamber.
The brake chamber pushes a pushrod, which in turn moves the S-shaped camshaft.
The camshaft then forces the brake shoes against the drum, creating friction and slowing down the vehicle.

Advantages of S Cam Brakes

S Cam Brakes offer several advantages that make them a popular choice for heavy-duty applications:

High Braking Force: The unique design of the S Cam allows for a high braking force, making it ideal for large vehicles that require significant stopping power.
Durability: S Cam Brakes are known for their robustness and longevity. They can withstand the rigorous demands of heavy-duty use, reducing the need for frequent replacements.
Ease of Maintenance: Compared to other braking systems, S Cam Brakes are relatively easy to maintain. Regular inspections and adjustments can keep them in optimal condition.
Cost-Effective: While the initial cost of S Cam Brakes may be higher than some other systems, their durability and low maintenance requirements make them a cost-effective choice in the long run.

Maintenance Tips for S Cam Brakes

Maintaining S Cam Brakes is crucial for ensuring their longevity and effectiveness. Here are some key maintenance tips:

Regular Inspections: Conduct regular inspections of the brake system to check for wear and tear. Look for signs of damage on the brake shoes, drums, and camshaft.
Adjustments: Periodically adjust the brake shoes to ensure they are properly aligned with the drum. This helps in maintaining optimal braking performance.
Lubrication: Keep the moving parts of the brake system well-lubricated to reduce friction and wear. Use high-quality lubricants recommended for brake systems.
Replacement of Worn Parts: Replace any worn-out components promptly to prevent further damage to the brake system. This includes brake shoes, drums, and seals.

🛠️ Note: Always follow the manufacturer's guidelines for maintenance and replacement intervals to ensure the best performance of your S Cam Brakes.

Comparing S Cam Brakes to Other Braking Systems

To fully appreciate the benefits of S Cam Brakes, it's helpful to compare them to other common braking systems:

Braking System	Advantages	Disadvantages
S Cam Brakes	High braking force, durability, ease of maintenance, cost-effective	Heavier and bulkier, may require more space
Disc Brakes	Superior stopping power, better heat dissipation, less prone to fade	More expensive, higher maintenance requirements
Drum Brakes	Simpler design, lower cost, easier to maintain	Less effective in wet conditions, prone to brake fade

While S Cam Brakes may not be as efficient as disc brakes in terms of heat dissipation, they offer a good balance of performance, durability, and cost-effectiveness. This makes them a suitable choice for heavy-duty vehicles that require reliable braking performance.

Common Issues with S Cam Brakes

Despite their advantages, S Cam Brakes can encounter several issues. Understanding these problems can help in timely maintenance and repairs:

Brake Fade: Prolonged use can lead to brake fade, where the braking performance decreases due to overheating. Regular inspections and proper cooling can mitigate this issue.
Wear and Tear: The brake shoes and drums are subject to wear and tear over time. Regular replacement of these components is essential to maintain braking efficiency.
Leaks: Seals and gaskets in the brake system can develop leaks, leading to reduced braking performance. Regular checks and timely replacements can prevent this.

🛠️ Note: Addressing these issues promptly can extend the lifespan of your S Cam Brakes and ensure safe operation.

Installation and Replacement of S Cam Brakes

Installing or replacing S Cam Brakes requires a good understanding of the system's components and proper tools. Here is a step-by-step guide:

Preparation: Gather all necessary tools and components. Ensure the vehicle is on a level surface and the parking brake is engaged.
Removal of Old Components: Remove the old brake shoes, drums, and any other worn-out parts. Clean the area thoroughly to remove any debris.

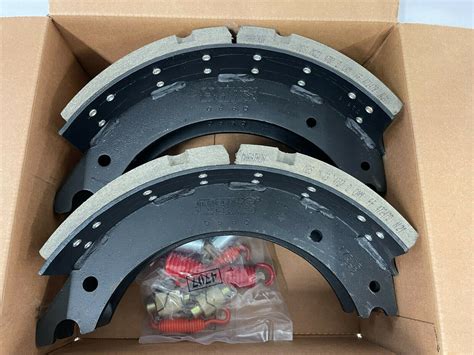

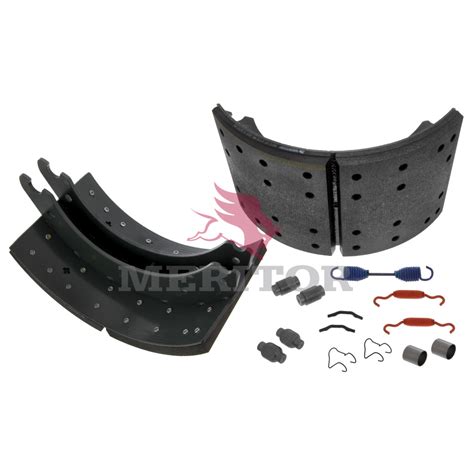

Installation of New Components: Install the new brake shoes and drums, ensuring they are properly aligned. Apply lubricant to the moving parts.
Adjustment: Adjust the brake shoes to the correct position. This may involve using a brake adjuster tool to ensure proper alignment.
Testing: Test the brakes to ensure they are functioning correctly. Make any necessary adjustments and repeat the test until satisfactory performance is achieved.

🛠️ Note: If you are not familiar with brake systems, it is advisable to seek professional help for installation and replacement to ensure safety and proper functioning.

In conclusion, S Cam Brakes are a reliable and efficient braking system for heavy-duty vehicles. Their unique design offers high braking force, durability, and ease of maintenance, making them a popular choice for trucks and buses. Regular inspections, timely replacements, and proper adjustments can ensure the longevity and effectiveness of S Cam Brakes. Understanding the common issues and how to address them can further enhance the performance of this braking system. Whether you are a vehicle owner or a mechanic, knowing the intricacies of S Cam Brakes can help in maintaining safe and efficient braking performance.
