The rotary engine, a marvel of engineering, has captivated enthusiasts and engineers alike with its unique design and smooth operation. Unlike traditional piston engines, the rotary engine operates on a different principle, utilizing a rotating triangular rotor housed within an oval-shaped housing. This innovative design offers several advantages, including a higher power-to-weight ratio and fewer moving parts, which translates to less vibration and wear. One of the best ways to understand the intricacies of a rotary engine is through a Rotary Engine Gif. These animated visuals provide a clear and dynamic representation of how the engine functions, making complex concepts more accessible.
Understanding the Basics of a Rotary Engine

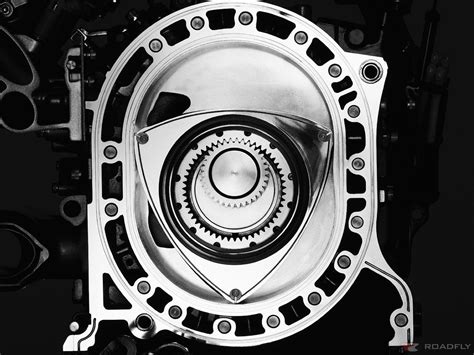

A rotary engine, also known as a Wankel engine, was invented by German engineer Felix Wankel in the 1950s. The engine's design is centered around a rotor that rotates within a stationary housing. The rotor has three sides, each of which acts as a piston in a traditional engine. As the rotor turns, it creates three separate chambers that undergo the four strokes of the engine cycle: intake, compression, combustion, and exhaust.
The key components of a rotary engine include:
- The rotor: A triangular-shaped component that rotates within the housing.
- The housing: An oval-shaped chamber that contains the rotor.
- The seals: Critical components that ensure the rotor maintains a tight seal against the housing, preventing gas leakage.
- The spark plugs: Used to ignite the fuel-air mixture in the combustion chamber.
The Advantages of a Rotary Engine
The rotary engine offers several advantages over traditional piston engines. These include:
- Smooth Operation: The rotary engine's design results in fewer vibrations, making it smoother to operate.
- High Power-to-Weight Ratio: Rotary engines are generally lighter and more compact, providing more power per unit of weight.
- Simpler Design: With fewer moving parts, rotary engines are simpler to manufacture and maintain.
- High Revs: Rotary engines can reach high revolutions per minute (RPM), making them ideal for high-performance applications.
However, rotary engines also have their drawbacks, such as higher fuel consumption and emissions, as well as potential reliability issues due to the complexity of the seals.
How a Rotary Engine Works
To fully appreciate the Rotary Engine Gif, it's essential to understand the four-stroke cycle that occurs within the engine. Here's a step-by-step breakdown:
- Intake: As the rotor turns, one of its sides creates a vacuum, drawing in the fuel-air mixture through the intake port.
- Compression: The rotor continues to turn, compressing the fuel-air mixture within the chamber.
- Combustion: The spark plug ignites the compressed fuel-air mixture, causing an explosion that pushes the rotor, generating power.
- Exhaust: The rotor turns further, expelling the exhaust gases through the exhaust port.
This cycle repeats continuously as the rotor turns, providing a smooth and efficient power output.
🔧 Note: The efficiency of a rotary engine can be affected by the quality of the seals. Proper maintenance and timely replacement of seals are crucial for optimal performance.
Visualizing the Rotary Engine with GIFs
A Rotary Engine Gif is an invaluable tool for visualizing the complex movements within a rotary engine. These animations show the rotor's rotation, the creation and destruction of chambers, and the flow of gases through the engine. By watching a Rotary Engine Gif, you can gain a deeper understanding of how the engine's components interact and how power is generated.
One of the most striking features of a Rotary Engine Gif is the smooth, continuous motion of the rotor. Unlike piston engines, where the pistons move up and down in a linear motion, the rotor in a rotary engine moves in a circular path. This difference in motion contributes to the engine's smoother operation and reduced vibrations.
Another key aspect highlighted in a Rotary Engine Gif is the sealing mechanism. The rotor's apex seals and side seals play a crucial role in maintaining the integrity of the combustion chambers. Any leakage can significantly affect the engine's performance and efficiency. A well-designed Rotary Engine Gif will show how these seals interact with the housing and the rotor, providing insights into their importance.
Additionally, a Rotary Engine Gif can illustrate the engine's high RPM capabilities. The continuous rotation of the rotor and the rapid opening and closing of the intake and exhaust ports demonstrate how the engine can achieve high revolutions per minute, making it suitable for high-performance applications.
Applications of Rotary Engines
Rotary engines have found applications in various fields due to their unique characteristics. Some of the most notable applications include:
- Automotive Industry: Rotary engines have been used in high-performance sports cars, such as the Mazda RX-7 and RX-8, known for their smooth acceleration and high RPM capabilities.
- Aerospace: Rotary engines are used in some aircraft and drones due to their high power-to-weight ratio and compact size.
- Marine: Rotary engines are employed in marine applications, particularly in high-speed boats and jet skis, where their smooth operation and high RPM are advantageous.
- Industrial Equipment: Rotary engines are used in various industrial applications, including generators and pumps, where their reliability and efficiency are beneficial.
Despite their advantages, rotary engines have faced challenges in widespread adoption due to issues like fuel efficiency and emissions. However, ongoing research and development aim to address these challenges and make rotary engines more viable for broader use.
Comparing Rotary Engines to Traditional Piston Engines
To better understand the unique features of a rotary engine, it's helpful to compare it to traditional piston engines. Here's a comparison table highlighting the key differences:
| Feature | Rotary Engine | Piston Engine |
|---|---|---|
| Design | Rotating rotor within an oval housing | Reciprocating pistons within cylinders |
| Moving Parts | Fewer moving parts | More moving parts |
| Vibration | Lower vibration | Higher vibration |
| Power-to-Weight Ratio | Higher | Lower |
| Fuel Efficiency | Lower | Higher |
| Emissions | Higher | Lower |
While rotary engines offer several advantages, traditional piston engines are generally more fuel-efficient and produce fewer emissions. The choice between the two often depends on the specific requirements of the application.
🔧 Note: The comparison table provides a general overview. Specific models and designs may vary in their characteristics and performance.
Future of Rotary Engines
The future of rotary engines looks promising, with ongoing research and development aimed at addressing their current limitations. Advances in materials science and engineering are paving the way for more efficient and reliable rotary engines. Some of the key areas of focus include:
- Improved Sealing Technology: Developing better seals can enhance the engine's efficiency and reduce emissions.
- Alternative Fuels: Exploring the use of alternative fuels, such as hydrogen or biofuels, can make rotary engines more environmentally friendly.
- Hybrid Systems: Combining rotary engines with electric motors in hybrid systems can improve overall efficiency and reduce emissions.
- Advanced Manufacturing Techniques: Utilizing advanced manufacturing techniques, such as 3D printing, can lead to more precise and durable engine components.
As these advancements continue, rotary engines may become more competitive with traditional piston engines, offering a viable alternative for various applications.
Conclusion
The rotary engine, with its unique design and smooth operation, continues to captivate engineers and enthusiasts. A Rotary Engine Gif provides an excellent visual aid for understanding the engine’s complex movements and advantages. While rotary engines face challenges in fuel efficiency and emissions, ongoing research and development hold promise for a brighter future. As we continue to explore and innovate, the rotary engine may find new applications and become a more viable option in various industries. The smooth, efficient power output of a rotary engine, as illustrated in a Rotary Engine Gif, showcases the potential of this remarkable engineering marvel.
