Romex 6 2

Electrical wiring is a critical aspect of any construction or renovation project. One of the most commonly used types of electrical wiring in residential settings is Romex 6 2. This type of wiring is essential for ensuring safe and efficient electrical distribution throughout a home. Understanding the specifics of Romex 6 2, its applications, and best practices for installation is crucial for both professionals and DIY enthusiasts.

Table of Contents

What is Romex 6 2?

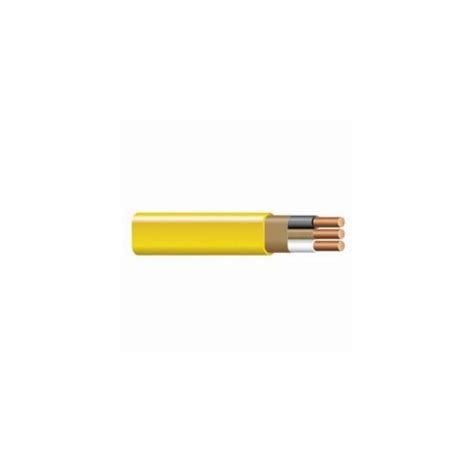

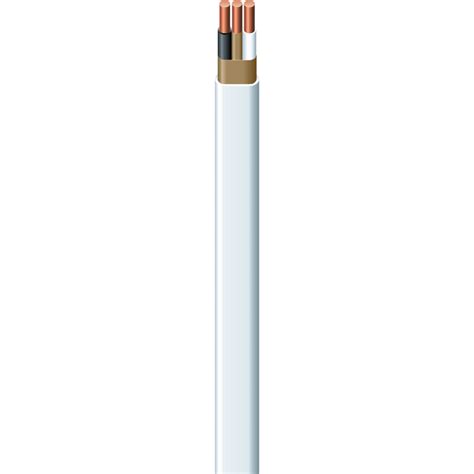

Romex 6 2 is a type of non-metallic sheathed cable (NM cable) that consists of two insulated conductors and a bare copper ground wire. The “6” in Romex 6 2 refers to the American Wire Gauge (AWG) size of the conductors, which is 6 AWG. The “2” indicates that there are two insulated conductors. This wiring is commonly used for circuits that require higher current capacities, such as those powering large appliances or heavy-duty equipment.

Components of Romex 6 2

Romex 6 2 cable is composed of several key components:

Conductors: Two insulated conductors, each with a 6 AWG size, typically made of copper.
Ground Wire: A bare copper ground wire that provides a safe path for electrical current in case of a fault.
Insulation: Each conductor is insulated with a durable, non-metallic material, usually PVC (Polyvinyl Chloride).
Sheathing: The entire cable is encased in a non-metallic sheath, which protects the conductors and ground wire from physical damage and environmental factors.

Applications of Romex 6 2

Romex 6 2 is versatile and can be used in a variety of applications. Some of the most common uses include:

Large Appliances: Powering heavy-duty appliances such as electric ranges, dryers, and water heaters.
Subpanels: Connecting subpanels to the main electrical panel.
Garage and Workshop Circuits: Providing power to tools and equipment in garages and workshops.
Outdoor Lighting: Powering outdoor lighting fixtures and other outdoor electrical devices.

Installation Guidelines for Romex 6 2

Proper installation of Romex 6 2 is essential for ensuring safety and compliance with electrical codes. Here are the key steps and considerations for installing Romex 6 2:

Planning and Preparation

Before beginning the installation, it is important to plan the route of the cable and ensure that it complies with local electrical codes. This includes:

Determining the length of cable needed.
Identifying the locations of outlets, switches, and appliances.
Ensuring that the cable is properly supported and protected from physical damage.

Running the Cable

Once the planning is complete, the next step is to run the Romex 6 2 cable. This involves:

Using appropriate tools to pull the cable through walls, ceilings, and floors.
Ensuring that the cable is not overstretched or damaged during installation.
Securing the cable with staples or clips at regular intervals to prevent sagging and ensure proper support.

Connecting the Cable

After the cable is in place, the next step is to connect it to the electrical devices and outlets. This includes:

Stripping the insulation from the conductors and ground wire using a wire stripper.
Connecting the conductors to the appropriate terminals on the device or outlet.
Connecting the ground wire to the grounding terminal or grounding bus.

🔧 Note: Always ensure that the power is turned off at the main electrical panel before beginning any electrical work. Use a non-contact voltage tester to verify that the circuit is dead.

Testing the Circuit

After the cable is connected, it is important to test the circuit to ensure that it is functioning properly. This includes:

Turning the power back on at the main electrical panel.
Using a multimeter to check the voltage at the outlets and devices.
Testing the ground continuity to ensure that the ground wire is properly connected.

Safety Considerations

Working with electrical wiring, including Romex 6 2, requires strict adherence to safety protocols. Some key safety considerations include:

Personal Protective Equipment (PPE): Wear appropriate PPE, including insulated gloves, safety glasses, and protective clothing.
Proper Tools: Use insulated tools designed for electrical work to minimize the risk of electrical shock.
Grounding: Ensure that all electrical devices and outlets are properly grounded to prevent electrical hazards.
Overcurrent Protection: Use circuit breakers or fuses to protect the circuit from overcurrent conditions.

Common Mistakes to Avoid

When installing Romex 6 2, there are several common mistakes that should be avoided to ensure a safe and reliable installation. These include:

Overloading the Circuit: Avoid connecting too many devices to a single circuit, as this can cause overheating and potential fires.
Improper Connections: Ensure that all connections are secure and properly tightened to prevent loose connections and arcing.
Inadequate Support: Make sure the cable is properly supported and protected from physical damage to prevent shorts and other electrical hazards.
Incorrect Wire Gauge: Using the wrong wire gauge can lead to overheating and potential fires. Always use the correct gauge for the intended application.

Troubleshooting Romex 6 2 Issues

Even with proper installation, issues can arise with Romex 6 2 wiring. Some common problems and their solutions include:

No Power at Outlets

If there is no power at the outlets, check the following:

Ensure that the circuit breaker is not tripped.
Verify that the cable is properly connected to the electrical panel and outlets.
Check for any loose or damaged connections.

Overheating

If the cable or outlets are overheating, consider the following:

Check for overloaded circuits and redistribute the load if necessary.
Inspect the cable for any physical damage or improper support.
Ensure that the cable is properly sized for the intended application.

Ground Faults

If there are ground faults, follow these steps:

Check the ground continuity to ensure that the ground wire is properly connected.
Inspect the cable for any damage or shorts.
Use a ground fault circuit interrupter (GFCI) to protect against ground faults.

🛠️ Note: If you are unsure about any aspect of the installation or troubleshooting process, it is always best to consult with a licensed electrician to ensure safety and compliance with electrical codes.

Best Practices for Romex 6 2 Installation

To ensure a safe and reliable installation of Romex 6 2, follow these best practices:

Use High-Quality Materials: Always use high-quality Romex 6 2 cable and accessories to ensure durability and reliability.
Follow Electrical Codes: Adhere to local electrical codes and standards to ensure compliance and safety.
Proper Support: Secure the cable with staples or clips at regular intervals to prevent sagging and ensure proper support.
Adequate Bending Radius: Maintain a proper bending radius to prevent damage to the cable and ensure reliable performance.
Regular Inspections: Conduct regular inspections of the wiring to identify and address any potential issues before they become major problems.

By following these best practices, you can ensure a safe and reliable installation of Romex 6 2 wiring in your home or project.

Comparing Romex 6 2 with Other Wiring Types

Understanding how Romex 6 2 compares to other types of wiring can help you make informed decisions for your electrical projects. Here is a comparison of Romex 6 2 with some other common wiring types:

Wiring Type	Conductors	Insulation	Applications
Romex 6 2	Two 6 AWG conductors, one bare ground wire	PVC insulation	Large appliances, subpanels, garage circuits
Romex 12 2	Two 12 AWG conductors, one bare ground wire	PVC insulation	Lighting circuits, general-purpose outlets
THHN Wire	Single conductor, various gauges	PVC insulation	Conduit wiring, industrial applications
MC Cable	Multiple conductors, various gauges	Metal sheathing	Industrial and commercial applications

Each type of wiring has its own advantages and is suited to different applications. Romex 6 2 is particularly well-suited for high-current applications in residential settings, making it a popular choice for many homeowners and professionals.

In summary, Romex 6 2 is a versatile and reliable type of electrical wiring that is essential for powering large appliances and heavy-duty equipment in residential settings. Understanding its components, applications, and best practices for installation is crucial for ensuring safety and compliance with electrical codes. By following the guidelines and best practices outlined in this post, you can ensure a safe and reliable installation of Romex 6 2 wiring in your home or project.
