Electrical wiring is a critical aspect of any construction or renovation project. One of the most commonly used types of electrical wiring is Romex 14 3, which is a type of non-metallic sheathed cable. This cable is widely used in residential and light commercial applications due to its durability, flexibility, and ease of installation. Understanding the specifications, applications, and installation guidelines for Romex 14 3 is essential for ensuring a safe and efficient electrical system.
Understanding Romex 14 3

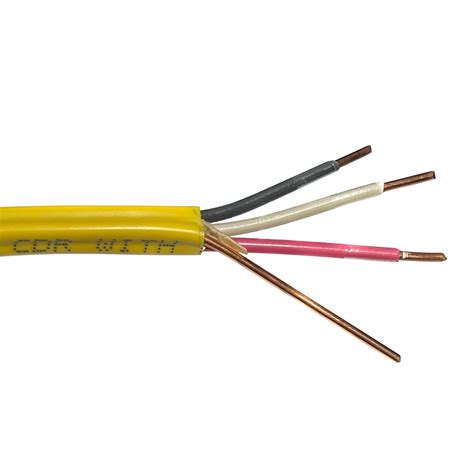

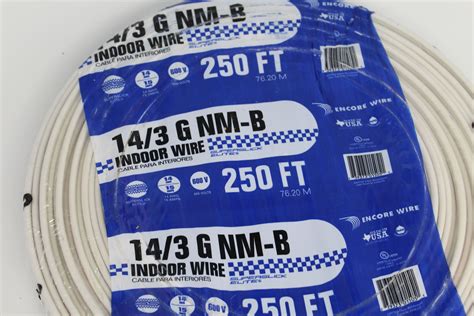

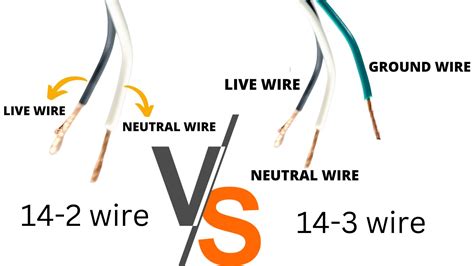

Romex 14 3 is a type of electrical cable that consists of three insulated conductors and a bare ground wire. The "14" in the name refers to the gauge of the conductors, which is 14 AWG (American Wire Gauge). The "3" indicates that there are three insulated conductors, typically colored black, white, and red, along with a bare copper ground wire. This configuration is commonly used for 120/240-volt circuits, making it suitable for a variety of electrical applications.
Specifications of Romex 14 3
Romex 14 3 cable has several key specifications that make it a popular choice for electrical wiring:
- Conductor Gauge: 14 AWG
- Number of Conductors: Three insulated conductors (black, white, red) and one bare ground wire
- Voltage Rating: 600 volts
- Temperature Rating: 90°C (194°F) for dry locations and 75°C (167°F) for wet locations
- Insulation Material: PVC (Polyvinyl Chloride)
- Sheath Material: PVC
Applications of Romex 14 3
Romex 14 3 is versatile and can be used in a wide range of applications. Some of the most common uses include:
- Residential Wiring: Ideal for wiring outlets, switches, and lighting fixtures in homes.
- Light Commercial Wiring: Suitable for small commercial buildings, offices, and retail spaces.
- Renovations and Remodeling: Perfect for updating electrical systems in existing structures.
- New Construction: Commonly used in new residential and light commercial construction projects.
Installation Guidelines for Romex 14 3
Proper installation of Romex 14 3 is crucial for ensuring safety and compliance with electrical codes. Here are the steps to follow for a successful installation:
Materials Needed
- Romex 14 3 cable
- Wire strippers
- Cable clamps
- Electrical boxes
- Screwdriver
- Cable ties or staples
- Electrical tape
Step-by-Step Installation
1. Plan the Route: Determine the path the cable will take from the power source to the destination. Ensure the route is free of obstacles and follows the shortest possible path.
2. Measure and Cut the Cable: Measure the length of cable needed and cut it to the appropriate size using a cable cutter. Leave enough slack to make connections and allow for any adjustments.
3. Strip the Cable: Use wire strippers to remove about ½ inch of insulation from the ends of the conductors. Be careful not to nick or damage the wires.

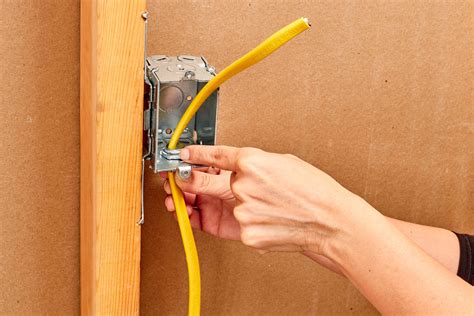

4. Install Cable Clamps: Attach cable clamps to the electrical boxes to secure the cable and prevent it from pulling out.

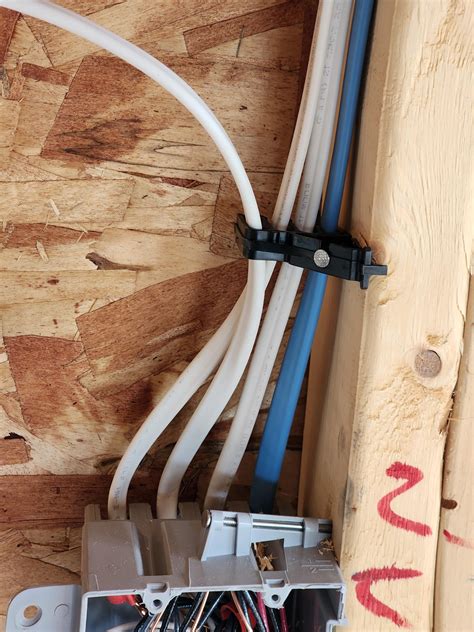

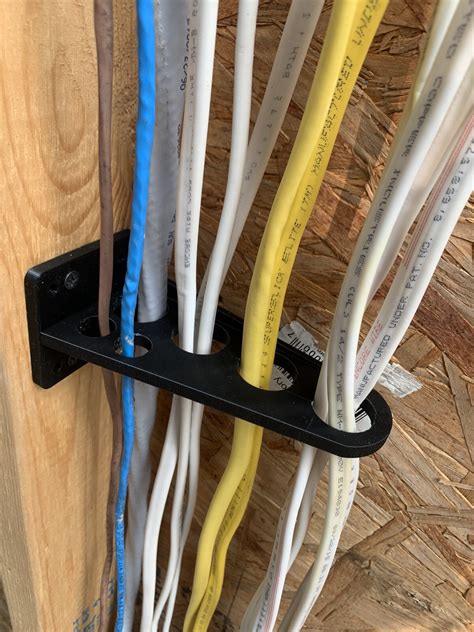

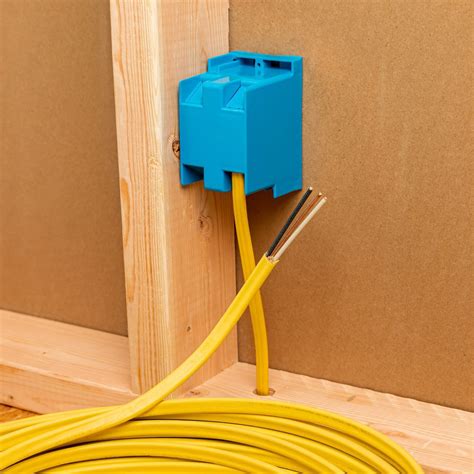

5. Run the Cable: Run the cable through the walls, ceilings, or floors, securing it with cable ties or staples every 12 inches. Ensure the cable is not overstretched or kinked.
6. Connect the Wires: Connect the black wire to the brass screw on the outlet or switch, the white wire to the silver screw, and the red wire to the other brass screw. Connect the bare ground wire to the green ground screw.
7. Secure the Connections: Tighten the screws securely to ensure a good connection. Use electrical tape to wrap the connections for added insulation.
8. Test the Circuit: Turn on the power and test the circuit to ensure it is functioning correctly. Use a voltage tester to verify that the wires are properly connected and that there are no shorts.
🔧 Note: Always follow local electrical codes and regulations when installing Romex 14 3. Ensure that all connections are secure and that the cable is properly supported to prevent damage.
Safety Precautions
Working with electrical wiring can be dangerous if proper safety precautions are not followed. Here are some important safety tips to keep in mind:
- Turn Off Power: Always turn off the power at the circuit breaker before working on any electrical wiring.
- Use Proper Tools: Use insulated tools designed for electrical work to minimize the risk of shock.
- Wear Protective Gear: Wear safety glasses and gloves to protect against electrical hazards and sharp edges.
- Avoid Overloading Circuits: Ensure that the circuit is not overloaded by checking the ampacity of the Romex 14 3 cable and the connected devices.
- Inspect for Damage: Regularly inspect the cable for any signs of damage, such as cuts, cracks, or frayed insulation. Replace any damaged cable immediately.
Common Mistakes to Avoid
When installing Romex 14 3, it's important to avoid common mistakes that can compromise the safety and efficiency of the electrical system. Here are some pitfalls to watch out for:
- Incorrect Wire Gauge: Using the wrong gauge of wire can lead to overheating and potential fires. Always use 14 AWG wire for Romex 14 3 applications.
- Improper Connections: Loose or improperly connected wires can cause arcing and short circuits. Ensure all connections are tight and secure.
- Overloading Circuits: Connecting too many devices to a single circuit can overload it, leading to tripped breakers or electrical fires. Be mindful of the circuit's ampacity.
- Inadequate Support: Failing to properly support the cable can cause it to sag or become damaged. Use cable ties or staples to secure the cable every 12 inches.
- Ignoring Local Codes: Always follow local electrical codes and regulations. Non-compliance can result in fines, penalties, and safety hazards.
Troubleshooting Romex 14 3 Issues
Even with proper installation, issues can arise with Romex 14 3 wiring. Here are some common problems and their solutions:
No Power to Outlets or Switches
If there is no power to outlets or switches, check the following:
- Ensure the circuit breaker is not tripped.
- Verify that the wires are properly connected to the outlet or switch.
- Check for any loose or damaged wires.
- Use a voltage tester to confirm that power is reaching the outlet or switch.
Flickering Lights
Flickering lights can be caused by several factors:
- Loose connections in the wiring.
- Overloaded circuit.
- Faulty light fixture.
- Check all connections and ensure they are tight and secure.
- Reduce the load on the circuit by unplugging some devices.
- Replace the light fixture if it is faulty.
Overheating Wires
Overheating wires can be a serious safety hazard. If you notice overheating, take the following steps:
- Turn off the power immediately.
- Inspect the wiring for any signs of damage or overheating.
- Check for overloaded circuits and reduce the load if necessary.
- Replace any damaged or overheated wires.
🔧 Note: If you are unsure about any aspect of troubleshooting or repairing Romex 14 3 wiring, consult a licensed electrician to ensure safety and compliance with electrical codes.
Maintenance Tips for Romex 14 3
Maintaining Romex 14 3 wiring is essential for ensuring its longevity and safety. Here are some maintenance tips to keep in mind:
- Regular Inspections: Periodically inspect the wiring for any signs of damage, such as cuts, cracks, or frayed insulation.
- Keep Connections Secure: Ensure that all connections are tight and secure. Loose connections can cause arcing and short circuits.
- Avoid Overloading: Be mindful of the circuit's ampacity and avoid overloading it with too many devices.
- Protect from Physical Damage: Protect the cable from physical damage by securing it properly and avoiding sharp edges or objects that could cut or puncture it.
- Update as Needed: If you notice any signs of wear or damage, update the wiring as needed to maintain safety and efficiency.

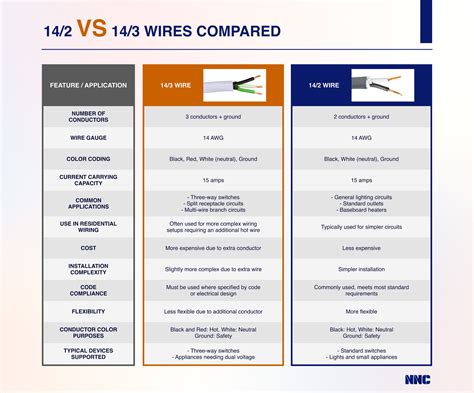

Comparing Romex 14 3 with Other Cable Types
When choosing electrical wiring, it's important to understand the differences between various cable types. Here is a comparison of Romex 14 3 with other commonly used cable types:
| Cable Type | Conductor Gauge | Number of Conductors | Voltage Rating | Applications |
|---|---|---|---|---|
| Romex 14 3 | 14 AWG | Three insulated conductors and one bare ground wire | 600 volts | Residential and light commercial wiring |
| Romex 12 2 | 12 AWG | Two insulated conductors and one bare ground wire | 600 volts | Residential and light commercial wiring |
| Romex 10 3 | 10 AWG | Three insulated conductors and one bare ground wire | 600 volts | Heavy-duty residential and commercial wiring |

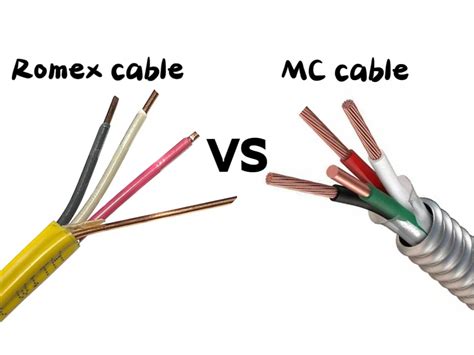

| MC Cable | Varies | Multiple insulated conductors and a bare ground wire | 600 volts | Industrial and commercial wiring |
| SE Cable | Varies | Multiple insulated conductors and a bare ground wire | 600 volts | Outdoor and underground wiring |
Each type of cable has its own advantages and is suited for different applications. Romex 14 3 is particularly well-suited for residential and light commercial wiring due to its flexibility, durability, and ease of installation.
Romex 14 3 is a versatile and reliable choice for electrical wiring in residential and light commercial applications. Understanding its specifications, applications, and installation guidelines is crucial for ensuring a safe and efficient electrical system. By following proper installation techniques, safety precautions, and maintenance tips, you can maximize the performance and longevity of Romex 14 3 wiring. Always consult local electrical codes and regulations, and seek professional help if needed to ensure compliance and safety.
