Romex 12 3

Electrical wiring is a critical aspect of any construction or renovation project. One of the most commonly used types of electrical wiring is Romex 12 3, which is a type of non-metallic sheathed cable. This cable is widely used in residential and commercial settings due to its durability, flexibility, and ease of installation. Understanding the specifications, applications, and installation guidelines for Romex 12 3 is essential for ensuring a safe and efficient electrical system.

Table of Contents

Understanding Romex 12 3

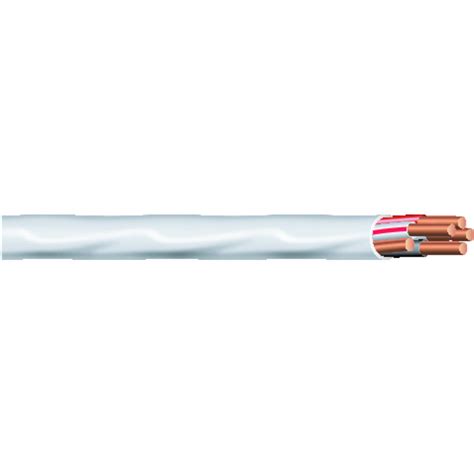

Romex 12 3 is a type of non-metallic sheathed cable that consists of three insulated conductors and a bare ground wire. The "12" in Romex 12 3 refers to the gauge of the wire, which is 12 AWG (American Wire Gauge). The "3" indicates that there are three insulated conductors plus a ground wire, making it a four-conductor cable. This type of cable is commonly used for 20-amp circuits and is suitable for a variety of electrical applications.

Specifications of Romex 12 3

Romex 12 3 has several key specifications that make it a popular choice for electrical wiring:

Wire Gauge: 12 AWG
Conductors: Three insulated conductors (usually black, white, and red) plus a bare ground wire
Voltage Rating: 600 volts
Temperature Rating: 90°C (194°F) for dry locations and 75°C (167°F) for wet locations
Insulation: PVC (Polyvinyl Chloride)
Sheathing: Non-metallic sheathing

Applications of Romex 12 3

Romex 12 3 is versatile and can be used in a wide range of applications. Some of the most common uses include:

Residential Wiring: Ideal for wiring outlets, switches, and lighting fixtures in homes.
Commercial Wiring: Suitable for office buildings, retail spaces, and other commercial settings.
Industrial Wiring: Can be used in industrial settings for powering machinery and equipment.
Renovations and Remodeling: Perfect for updating electrical systems in older buildings.

Installation Guidelines for Romex 12 3

Proper installation of Romex 12 3 is crucial for ensuring safety and compliance with electrical codes. Here are the steps to follow:

Materials Needed

Romex 12 3 cable
Wire strippers
Cable clamps
Electrical tape
Wire nuts
Screwdriver
Fish tape (if needed)

Step-by-Step Installation

1. Plan the Route: Determine the path the cable will take from the power source to the destination. Ensure the route is clear of obstacles and follows the shortest possible path.

2. Measure and Cut the Cable: Measure the length of cable needed and cut it to size using a cable cutter. Leave a few extra inches at each end for connections.

3. Strip the Cable: Use wire strippers to remove about ½ inch of the outer sheathing from both ends of the cable. Be careful not to nick the insulation of the individual wires.

4. Separate the Conductors: Separate the three insulated conductors and the bare ground wire. Strip about ½ inch of insulation from each conductor.

5. Connect the Wires: Connect the wires to the appropriate terminals in the electrical box. Typically, the black wire is connected to the hot terminal, the white wire to the neutral terminal, and the red wire to the switched terminal. The bare ground wire should be connected to the ground terminal.

6. Secure the Cable: Use cable clamps to secure the cable to the electrical box. This ensures the cable is held firmly in place and prevents it from moving.

7. Test the Circuit: Once all connections are made, turn on the power and test the circuit to ensure it is functioning correctly.

🔧 Note: Always turn off the power at the circuit breaker before working on any electrical wiring. Use a non-contact voltage tester to ensure the circuit is dead.

Safety Precautions

Working with electrical wiring, including Romex 12 3, requires strict adherence to safety guidelines. Here are some important safety precautions to keep in mind:

Turn Off Power: Always turn off the power at the circuit breaker before starting any electrical work.
Use Proper Tools: Use insulated tools designed for electrical work to minimize the risk of shock.
Wear Protective Gear: Wear safety glasses and gloves to protect against electrical hazards and sharp edges.
Follow Code Requirements: Ensure all installations comply with local electrical codes and standards.
Avoid Overloading Circuits: Do not overload circuits with too many devices or appliances.

Common Mistakes to Avoid

When installing Romex 12 3, it's important to avoid common mistakes that can compromise safety and functionality. Here are some pitfalls to watch out for:

Incorrect Wire Gauge: Using the wrong wire gauge can lead to overheating and potential fires.
Improper Connections: Loose or improperly connected wires can cause arcing and short circuits.
Inadequate Support: Failing to secure the cable properly can result in damage to the insulation and conductors.
Ignoring Grounding: Neglecting to connect the ground wire can increase the risk of electrical shock.

⚠️ Note: Always double-check your work and use a multimeter to test connections before restoring power.

Troubleshooting Romex 12 3 Issues

Even with careful installation, issues can arise with Romex 12 3 wiring. Here are some common problems and their solutions:

No Power

If there is no power at the outlet or switch, check the following:

Ensure the circuit breaker is not tripped.
Verify that the wires are properly connected to the terminals.
Check for any loose or damaged wires.

Flickering Lights

Flickering lights can be caused by:

Loose connections at the outlet or switch.
Overloaded circuit.
Faulty light fixture.

Overheating

If the cable or outlet feels hot to the touch, it could be due to:

Overloaded circuit.
Improper wire gauge.
Poor connections.

🔧 Note: If you encounter any issues that you cannot resolve, it is best to consult a licensed electrician.

Maintenance Tips

Maintaining your Romex 12 3 wiring is essential for ensuring long-term reliability and safety. Here are some maintenance tips:

Regular Inspections: Periodically inspect the wiring for any signs of damage, such as frayed insulation or loose connections.
Keep It Dry: Ensure that the wiring is not exposed to moisture, as this can cause corrosion and short circuits.
Avoid Physical Damage: Protect the cable from physical damage by routing it through protected areas and using cable clamps.
Update as Needed: If you notice any issues or if the wiring is outdated, consider updating it to meet current standards.

Romex 12 3 is a reliable and versatile option for electrical wiring in both residential and commercial settings. By understanding its specifications, applications, and installation guidelines, you can ensure a safe and efficient electrical system. Proper maintenance and adherence to safety precautions will help extend the lifespan of your wiring and prevent potential hazards. Whether you are a DIY enthusiast or a professional electrician, Romex 12 3 is a valuable tool in your electrical toolkit.
