Roller Chain Size Chart

Understanding the intricacies of roller chains is crucial for anyone involved in mechanical engineering, manufacturing, or maintenance. Roller chains are essential components in various machinery, from bicycles to industrial equipment. One of the most important tools for selecting the right roller chain is the Roller Chain Size Chart. This chart provides detailed specifications that help ensure the chain's compatibility and performance. This post will delve into the significance of a Roller Chain Size Chart, how to read it, and its applications in different industries.

Table of Contents

Understanding Roller Chains

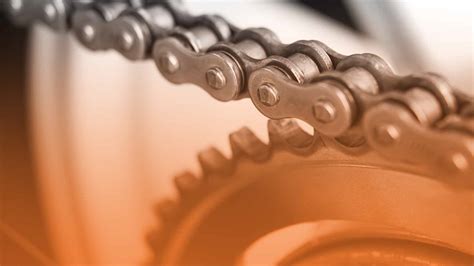

Roller chains are a type of chain drive commonly used to transmit mechanical power on many kinds of domestic, industrial, and agricultural machinery, including conveyors, wire- and tube-drawing machines, printing presses, cars, motorcycles, and bicycles. They consist of a series of short cylindrical rollers held together by side links. The rollers engage with the teeth of the sprocket, providing a smooth and efficient transfer of power.

The Importance of a Roller Chain Size Chart

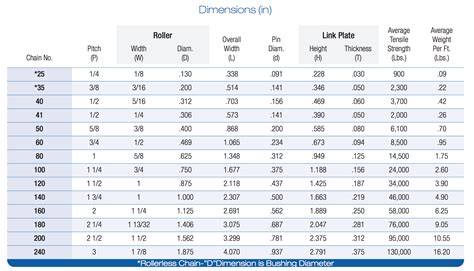

A Roller Chain Size Chart is an indispensable resource for engineers and technicians. It provides critical information such as pitch, roller diameter, pin diameter, and plate thickness. This data is essential for selecting the right chain for a specific application, ensuring optimal performance and longevity. The chart helps in:

Ensuring compatibility with sprockets and other components.
Preventing premature wear and tear.
Maintaining efficient power transmission.

Key Components of a Roller Chain Size Chart

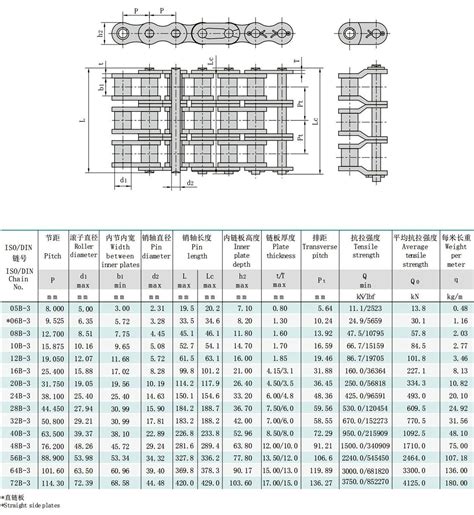

The Roller Chain Size Chart includes several key components that are crucial for understanding and selecting the right chain. These components are:

Pitch: The distance between the centers of two consecutive pins.
Roller Diameter: The diameter of the rollers that engage with the sprocket teeth.
Pin Diameter: The diameter of the pins that hold the rollers in place.
Plate Thickness: The thickness of the side plates that connect the pins.
Chain Width: The overall width of the chain, including the rollers and side plates.

How to Read a Roller Chain Size Chart

Reading a Roller Chain Size Chart involves understanding the various dimensions and specifications listed. Here’s a step-by-step guide to help you navigate the chart:

Identify the Chain Type: Determine the type of roller chain you need (e.g., standard, heavy-duty, etc.).
Locate the Pitch: Find the pitch size that matches your application requirements.
Check the Roller Diameter: Ensure the roller diameter is compatible with your sprocket teeth.
Verify the Pin Diameter: Confirm that the pin diameter fits your application’s specifications.
Review the Plate Thickness: Make sure the plate thickness is suitable for your load requirements.
Confirm the Chain Width: Ensure the overall width of the chain fits within your machinery’s dimensions.

🔍 Note: Always double-check the specifications to ensure compatibility and avoid potential issues.

Applications of Roller Chains

Roller chains are used in a wide range of applications across various industries. Some of the most common applications include:

Automotive Industry: Roller chains are used in engines, transmissions, and other mechanical components.
Manufacturing: They are essential in conveyor systems, assembly lines, and other machinery.
Agriculture: Roller chains are used in tractors, harvesters, and other agricultural equipment.
Bicycles and Motorcycles: They are a key component in the drivetrain of these vehicles.
Industrial Machinery: Roller chains are used in various types of machinery, including printing presses and textile machines.

Selecting the Right Roller Chain

Choosing the right roller chain involves considering several factors. Here are some key points to keep in mind:

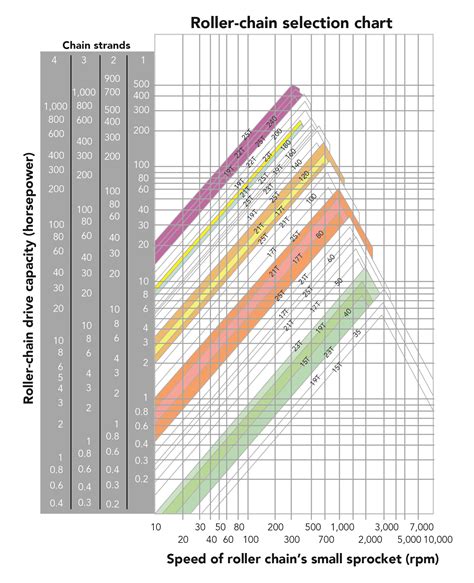

Load Requirements: Ensure the chain can handle the load and stress of your application.
Speed and Power: Consider the speed and power transmission requirements.
Environmental Conditions: Take into account the operating environment, including temperature, humidity, and exposure to chemicals.
Maintenance: Evaluate the ease of maintenance and lubrication requirements.

Maintenance and Care of Roller Chains

Proper maintenance is crucial for the longevity and performance of roller chains. Here are some tips for maintaining your roller chains:

Regular Inspection: Inspect the chain regularly for signs of wear, damage, or misalignment.
Lubrication: Keep the chain well-lubricated to reduce friction and wear.
Tension Adjustment: Ensure the chain is properly tensioned to prevent slippage and excessive wear.
Cleaning: Clean the chain periodically to remove dirt, debris, and contaminants.

🛠️ Note: Regular maintenance can significantly extend the life of your roller chain and prevent costly downtime.

Common Issues with Roller Chains

Despite their durability, roller chains can encounter several issues. Some common problems include:

Wear and Tear: Over time, the rollers, pins, and plates can wear out, leading to reduced performance.
Corrosion: Exposure to moisture and chemicals can cause corrosion, weakening the chain.
Misalignment: Improper alignment can cause uneven wear and reduce the chain’s lifespan.
Lack of Lubrication: Insufficient lubrication can lead to increased friction and accelerated wear.

Troubleshooting Roller Chain Problems

If you encounter issues with your roller chain, here are some troubleshooting steps to help you identify and resolve the problem:

Inspect the Chain: Check for visible signs of wear, damage, or corrosion.
Check Alignment: Ensure the chain is properly aligned with the sprockets.
Adjust Tension: Verify that the chain is correctly tensioned.
Lubricate the Chain: Apply the appropriate lubricant to reduce friction.
Replace Worn Components: Replace any worn or damaged parts as needed.

🛠️ Note: Regular inspection and maintenance can help prevent many common issues with roller chains.

Conclusion

In summary, a Roller Chain Size Chart is an essential tool for selecting the right roller chain for your application. By understanding the key components and specifications listed in the chart, you can ensure compatibility, performance, and longevity. Regular maintenance and proper care are crucial for extending the life of your roller chain and preventing costly downtime. Whether you’re in the automotive, manufacturing, or agricultural industry, a well-maintained roller chain is vital for efficient and reliable operation.
