Roll Cage Tubing

Building a roll cage for your vehicle is a critical step in enhancing its safety and performance, especially for off-road enthusiasts and racing drivers. A well-designed roll cage can protect occupants in the event of a rollover and provide structural integrity to the vehicle. One of the key components of a roll cage is the roll cage tubing, which forms the backbone of the structure. Understanding the types, sizes, and installation techniques of roll cage tubing is essential for anyone looking to build or upgrade their vehicle's safety features.

Table of Contents

Understanding Roll Cage Tubing

Roll cage tubing is the primary material used to construct the roll cage. It comes in various types, each with its own advantages and disadvantages. The most common types of roll cage tubing include:

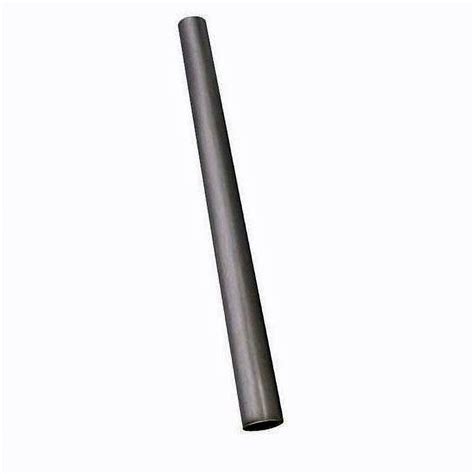

DOM (Drawn Over Mandrel) Tubing: This type of tubing is known for its high strength and consistency. It is drawn over a mandrel to ensure uniform wall thickness, making it ideal for roll cages.
HREW (Hot Rolled Electric Weld) Tubing: This tubing is less expensive than DOM but has a lower strength-to-weight ratio. It is suitable for less demanding applications.
ERW (Electric Resistance Weld) Tubing: Similar to HREW, ERW tubing is cost-effective but has a lower strength compared to DOM. It is often used in less critical areas of the roll cage.

When selecting roll cage tubing, it is crucial to consider the diameter and wall thickness. The diameter affects the overall strength and rigidity of the roll cage, while the wall thickness determines its ability to withstand impact. Common diameters for roll cage tubing range from 1.5 inches to 2 inches, with wall thicknesses typically between 0.095 inches and 0.120 inches.

Designing Your Roll Cage

Designing a roll cage involves careful planning and consideration of various factors, including the vehicle's make and model, the intended use, and local regulations. Here are the key steps to designing an effective roll cage:

Assess the Vehicle: Evaluate the vehicle's existing structure and identify the areas where the roll cage will be mounted. Consider the vehicle's dimensions and any potential obstacles.

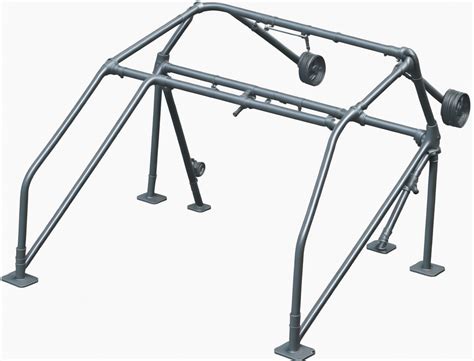

Determine the Layout: Decide on the layout of the roll cage, including the number of hoops, the placement of the main hoop, and the design of the door bars. The layout should provide maximum protection and comply with safety standards.
Choose the Tubing: Select the appropriate type, diameter, and wall thickness of roll cage tubing based on the vehicle's requirements and your budget.
Create a Blueprint: Develop a detailed blueprint of the roll cage, including measurements, angles, and welding points. This will serve as a guide during the construction process.

Here is a table outlining the common types of roll cage tubing and their typical applications:

Type of Tubing	Strength	Cost	Typical Applications
DOM	High	High	Primary roll cage structure, high-stress areas
HREW	Medium	Medium	Secondary support, less critical areas
ERW	Low	Low	Non-critical areas, cost-sensitive projects

Installing the Roll Cage

Installing a roll cage involves several steps, from cutting the tubing to welding it into place. Here is a step-by-step guide to help you through the process:

Gather Tools and Materials: Ensure you have all the necessary tools, including a tubing cutter, angle grinder, welding equipment, and safety gear.
Cut the Tubing: Use the blueprint to cut the roll cage tubing to the required lengths and angles. A tubing cutter or angle grinder can be used for this purpose.
Prepare the Vehicle: Remove any interior components that may interfere with the installation, such as seats and trim panels.
Position the Tubing: Place the cut tubing in the desired positions according to your blueprint. Use clamps or magnets to hold the tubing in place.
Weld the Tubing: Weld the tubing together at the designated points, ensuring strong and secure connections. Use a welding technique suitable for the type of tubing you are using.
Inspect the Roll Cage: Once the welding is complete, inspect the roll cage for any defects or weak points. Make any necessary adjustments or repairs.

🛠️ Note: Always wear appropriate safety gear, including gloves, goggles, and a welding helmet, when working with roll cage tubing and welding equipment.

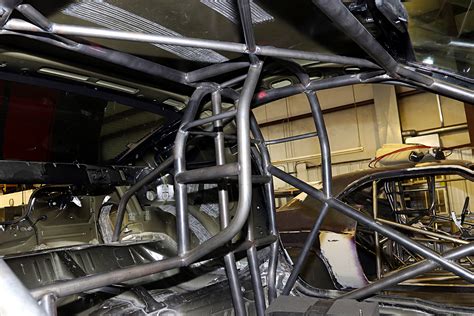

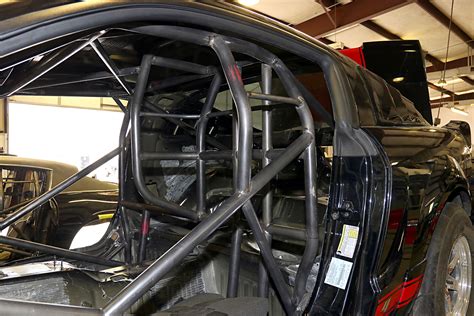

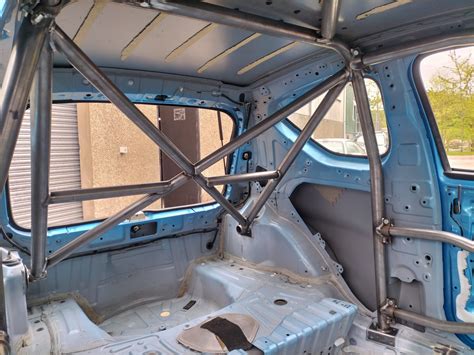

Here is an image of a typical roll cage installation process:

Maintaining Your Roll Cage

Maintaining your roll cage is essential to ensure its longevity and effectiveness. Regular inspections and maintenance can help identify and address any issues before they become serious problems. Here are some tips for maintaining your roll cage:

Regular Inspections: Inspect the roll cage for any signs of damage, such as cracks, dents, or loose welds. Pay particular attention to areas that are subject to high stress or impact.
Cleaning: Keep the roll cage clean and free of debris. Use a mild detergent and water to clean the tubing, and avoid using harsh chemicals that could damage the finish.
Repairs: Address any damage or wear promptly. Repair or replace any damaged tubing or welds to maintain the structural integrity of the roll cage.
Painting: Apply a protective coating or paint to the roll cage to prevent rust and corrosion. Choose a paint that is suitable for the type of tubing and the environment in which the vehicle will be used.

By following these maintenance tips, you can ensure that your roll cage remains in optimal condition and provides the necessary protection for you and your passengers.

In summary, building a roll cage with the right roll cage tubing is a crucial step in enhancing the safety and performance of your vehicle. Understanding the different types of tubing, designing an effective roll cage, and installing it correctly are all essential aspects of the process. Regular maintenance will ensure that your roll cage remains reliable and effective, providing peace of mind during your off-road adventures or racing events.
