The Rockwell Hardness Test is a widely used method for determining the hardness of materials, particularly metals. This test is crucial in various industries, including manufacturing, automotive, and aerospace, where the hardness of materials directly impacts performance and durability. Understanding the Rockwell Hardness Test involves delving into its principles, procedures, and applications, which we will explore in detail.
Understanding the Rockwell Hardness Test
The Rockwell Hardness Test measures the hardness of a material by determining the depth of penetration of an indenter under a large load compared to the penetration made by a preload. The test is named after Stanley P. Rockwell, who developed it in the early 20th century. The Rockwell scale is used to express the hardness of materials, with different scales (e.g., A, B, C, D, E, F, G, H, K, N, T) corresponding to different types of indenters and loads.
Principles of the Rockwell Hardness Test

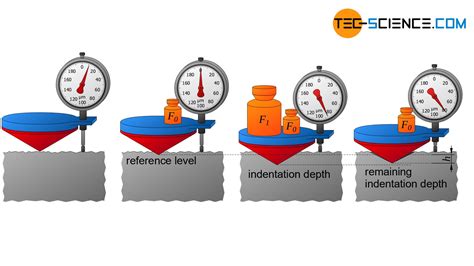

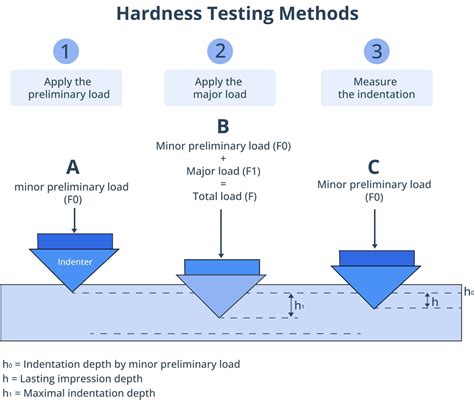

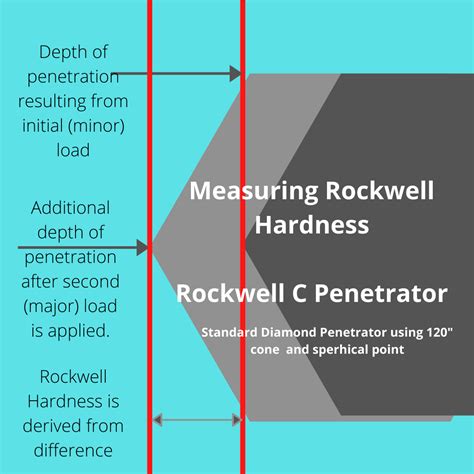

The Rockwell Hardness Test operates on the principle of indentation hardness. The test involves applying a minor load followed by a major load to the material being tested. The difference in penetration depth between the minor and major loads is used to calculate the Rockwell hardness number (HR). The formula for calculating the Rockwell hardness number is:
HR = E - e
Where:
- E is the constant for the scale being used.
- e is the penetration depth under the major load.

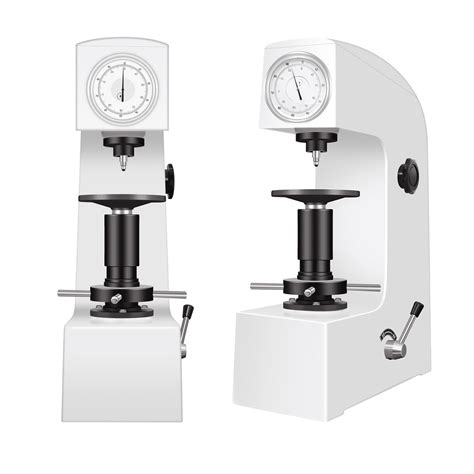

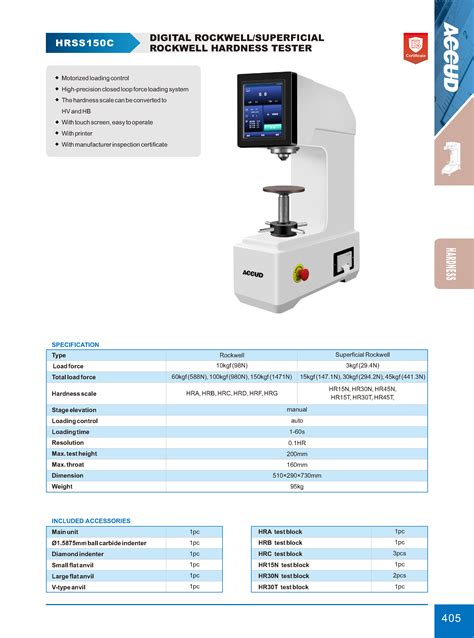

The test is performed using a Rockwell hardness tester, which consists of an indenter, a loading mechanism, and a dial or digital readout to measure the penetration depth.
Types of Rockwell Scales
The Rockwell Hardness Test uses different scales to accommodate various materials and hardness ranges. The most commonly used scales are:
| Scale | Indenter | Minor Load (kgf) | Major Load (kgf) | Typical Materials |
|---|---|---|---|---|
| A | Diamond cone | 10 | 60 | Thin steel, hard steel |
| B | 1/16" steel ball | 10 | 100 | Soft metals, aluminum alloys |
| C | Diamond cone | 10 | 150 | Hardened steel, hard alloys |
| D | Diamond cone | 10 | 100 | Thin steel, hard steel |
| E | 1/8" steel ball | 10 | 100 | Cast iron, soft metals |
Each scale is designed to measure the hardness of specific types of materials within a particular range. The choice of scale depends on the material being tested and the expected hardness range.
Procedure for Performing a Rockwell Hardness Test
Performing a Rockwell Hardness Test involves several steps, each crucial for obtaining accurate results. Here is a detailed procedure:
- Prepare the Sample: Ensure the sample surface is flat, smooth, and free of defects. The sample should be clean and free of contaminants.
- Select the Appropriate Scale: Choose the Rockwell scale that corresponds to the material being tested. Refer to the table above for guidance.
- Apply the Minor Load: Place the indenter on the sample surface and apply the minor load. This preload ensures consistent contact between the indenter and the sample.
- Apply the Major Load: Gradually increase the load to the major load value specified for the chosen scale. Hold the major load for a specified duration to allow for complete penetration.
- Release the Major Load: Remove the major load while maintaining the minor load. This step allows the material to recover slightly from the indentation.
- Read the Hardness Value: Record the Rockwell hardness number (HR) from the dial or digital readout. The hardness value is displayed directly on the tester.
- Repeat the Test: Perform multiple tests on different areas of the sample to ensure consistency and accuracy. Calculate the average hardness value from the multiple readings.
📝 Note: Ensure the sample is properly secured during the test to prevent movement, which can affect the accuracy of the results.
Applications of the Rockwell Hardness Test
The Rockwell Hardness Test is widely used in various industries due to its simplicity, speed, and reliability. Some of the key applications include:
- Manufacturing: Quality control in manufacturing processes to ensure materials meet specified hardness requirements.
- Automotive: Testing the hardness of engine components, gears, and other critical parts to ensure durability and performance.
- Aerospace: Evaluating the hardness of aircraft components to meet stringent safety and performance standards.
- Construction: Assessing the hardness of construction materials such as steel beams and fasteners.
- Research and Development: Conducting material research to develop new alloys and composites with specific hardness properties.
The Rockwell Hardness Test is particularly valuable in industries where material hardness directly impacts the performance and safety of products. Its ability to provide quick and accurate results makes it an essential tool for quality control and material evaluation.
Factors Affecting Rockwell Hardness Test Results
Several factors can influence the results of a Rockwell Hardness Test, and it is essential to control these variables to ensure accurate and reliable measurements. Some of the key factors include:
- Surface Finish: The surface of the sample should be smooth and free of defects. Rough or uneven surfaces can affect the penetration depth and lead to inaccurate results.
- Sample Thickness: The sample should be thick enough to prevent the indenter from penetrating through to the other side. Thin samples can result in lower hardness values.
- Load Application: The minor and major loads should be applied consistently and accurately. Variations in load application can affect the penetration depth and hardness value.
- Indenter Condition: The indenter should be clean and free of damage. A worn or damaged indenter can lead to inaccurate results.
- Environmental Conditions: The test should be performed in a controlled environment to minimize the effects of temperature and humidity on the material properties.
By controlling these factors, you can ensure that the Rockwell Hardness Test provides accurate and reliable results, which are crucial for quality control and material evaluation.
Interpreting Rockwell Hardness Test Results
Interpreting the results of a Rockwell Hardness Test involves understanding the hardness scale and the specific requirements of the material being tested. The Rockwell hardness number (HR) provides a quantitative measure of the material's hardness, which can be compared to standard values or specifications.
For example, a Rockwell C scale hardness of 50 HRC indicates that the material has a specific level of hardness that corresponds to a penetration depth of 0.050 inches under the major load. This value can be used to determine if the material meets the required hardness specifications for a particular application.
It is essential to refer to industry standards and specifications when interpreting Rockwell Hardness Test results. These standards provide guidelines for acceptable hardness ranges and help ensure that materials meet the required performance criteria.
📝 Note: Always verify the calibration of the Rockwell hardness tester before performing tests to ensure accurate and reliable results.

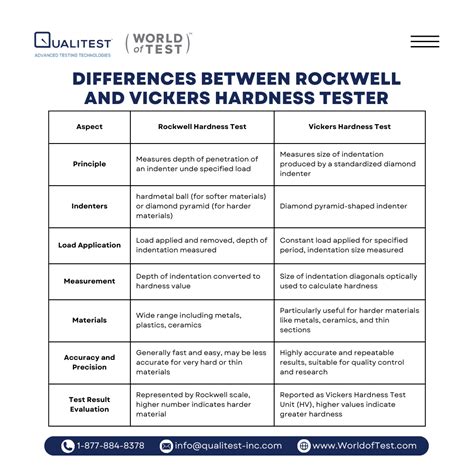

In addition to the Rockwell Hardness Test, other hardness testing methods, such as the Brinell and Vickers tests, may be used to evaluate material hardness. Each method has its advantages and limitations, and the choice of test depends on the specific requirements of the application.
In conclusion, the Rockwell Hardness Test is a fundamental method for determining the hardness of materials, particularly metals. Its simplicity, speed, and reliability make it an essential tool in various industries, including manufacturing, automotive, and aerospace. By understanding the principles, procedures, and applications of the Rockwell Hardness Test, you can ensure accurate and reliable material evaluation, which is crucial for quality control and performance optimization.
