The Ring Crush Test (RCT) is a critical method used in the paper and packaging industry to evaluate the compressive strength of corrugated boards. This test is essential for ensuring that packaging materials can withstand the rigors of transportation and storage, thereby protecting the products inside. Understanding the Ring Crush Test and its significance can help manufacturers produce more reliable and durable packaging solutions.
Understanding the Ring Crush Test
The Ring Crush Test measures the compressive strength of corrugated boards by applying a force to a small ring-shaped sample. The test involves placing a ring-shaped specimen of the corrugated board between two parallel plates and applying a compressive force until the specimen fails. The force at which the specimen fails is recorded as the Ring Crush Strength.
The Ring Crush Test is particularly important because it provides a direct measure of the board's ability to resist crushing forces. This is crucial for packaging materials that need to withstand stacking and handling during transportation and storage. By understanding the Ring Crush Strength, manufacturers can design packaging that is both cost-effective and reliable.
Importance of the Ring Crush Test in Packaging
The Ring Crush Test plays a pivotal role in the packaging industry for several reasons:
- Quality Control: The test helps in maintaining consistent quality by ensuring that the corrugated boards meet the required strength specifications.
- Cost Efficiency: By identifying the optimal strength requirements, manufacturers can avoid over-engineering, which saves on material costs.
- Product Protection: Ensuring that packaging can withstand compressive forces protects the products inside from damage during transit and storage.
- Regulatory Compliance: Many industries have specific standards for packaging strength, and the Ring Crush Test helps in meeting these regulatory requirements.
How the Ring Crush Test is Conducted
The Ring Crush Test involves several steps, each crucial for obtaining accurate and reliable results. Here is a detailed overview of the process:
Sample Preparation
The first step in conducting a Ring Crush Test is to prepare the sample. The sample is typically a ring-shaped piece of corrugated board, cut to specific dimensions. The standard dimensions for the sample are usually 152 mm in diameter and 15 mm in width. The sample should be cut carefully to ensure uniformity and accuracy.
Test Setup
Once the sample is prepared, it is placed between two parallel plates in a testing machine. The plates are designed to apply a compressive force evenly across the sample. The testing machine should be calibrated to ensure accurate measurements.
Applying the Force
The compressive force is applied gradually until the sample fails. The force is measured in kilonewtons (kN) or pounds-force (lbf). The rate of force application is typically controlled to ensure consistency in the test results.
Recording the Results
The force at which the sample fails is recorded as the Ring Crush Strength. This value is used to determine the compressive strength of the corrugated board. The results are often compared to industry standards to ensure the board meets the required specifications.
📝 Note: It is important to follow the standard procedures for sample preparation and test setup to ensure accurate and reliable results.
Factors Affecting Ring Crush Strength
Several factors can influence the Ring Crush Strength of corrugated boards. Understanding these factors can help manufacturers optimize their production processes and improve the quality of their packaging materials.
Material Composition
The type and quality of the paper used in the corrugated board significantly affect its Ring Crush Strength. High-quality paper with good fiber strength and uniformity will result in a higher Ring Crush Strength.
Board Construction
The construction of the corrugated board, including the flute size and the number of layers, also plays a crucial role. Different flute sizes and layer configurations can provide varying levels of compressive strength.
Environmental Conditions
Environmental factors such as humidity and temperature can affect the Ring Crush Strength. High humidity can weaken the paper fibers, reducing the board's compressive strength. Conversely, low humidity can make the board more brittle, also affecting its strength.
Manufacturing Process
The manufacturing process, including the adhesive used to bond the layers and the pressing conditions, can impact the Ring Crush Strength. Proper adhesive application and controlled pressing conditions are essential for achieving optimal strength.
Interpreting Ring Crush Test Results
Interpreting the results of a Ring Crush Test involves comparing the measured Ring Crush Strength to industry standards and specifications. Here are some key points to consider:
- Comparison to Standards: Compare the results to industry standards such as those set by the International Organization for Standardization (ISO) or the Technical Association of the Pulp and Paper Industry (TAPPI).
- Consistency: Ensure that the results are consistent across multiple samples to verify the reliability of the test.
- Application-Specific Requirements: Consider the specific requirements of the application, such as the weight of the product and the expected handling conditions.
Here is a table summarizing the typical Ring Crush Strength values for different types of corrugated boards:
| Corrugated Board Type | Typical Ring Crush Strength (kN/m) |
|---|---|
| Single-Wall | 20-40 |
| Double-Wall | 40-60 |
| Triple-Wall | 60-80 |
📝 Note: The values in the table are approximate and can vary based on the specific materials and manufacturing processes used.
Applications of the Ring Crush Test
The Ring Crush Test is widely used in various industries where packaging strength is critical. Some of the key applications include:
Food and Beverage Industry
In the food and beverage industry, packaging must withstand the weight of stacked products and the rigors of transportation. The Ring Crush Test ensures that the packaging can protect the contents from damage, maintaining product quality and freshness.
Electronics Industry
Electronic devices are often fragile and require robust packaging to prevent damage during transit. The Ring Crush Test helps in designing packaging that can withstand compressive forces, ensuring the safe delivery of electronic products.
Pharmaceutical Industry
Pharmaceutical products require packaging that can protect them from contamination and damage. The Ring Crush Test ensures that the packaging meets the necessary strength requirements, maintaining the integrity and efficacy of the products.
E-commerce
With the rise of e-commerce, packaging materials must be able to withstand the various handling and transportation conditions. The Ring Crush Test helps in selecting packaging materials that can provide the necessary protection, reducing the risk of product damage during shipping.
Advancements in Ring Crush Testing
Advancements in technology have led to improvements in Ring Crush Testing methods and equipment. Some of the recent developments include:
Automated Testing Machines
Automated testing machines have made the Ring Crush Test more efficient and accurate. These machines can perform multiple tests quickly and consistently, reducing the time and effort required for testing.
Non-Destructive Testing Methods
Non-destructive testing methods, such as ultrasonic testing, are being explored as alternatives to traditional Ring Crush Testing. These methods can provide information about the compressive strength of the material without damaging the sample.
Data Analysis and Reporting
Advanced data analysis and reporting tools are being used to interpret Ring Crush Test results more effectively. These tools can provide detailed insights into the strength characteristics of the material, helping manufacturers make informed decisions.

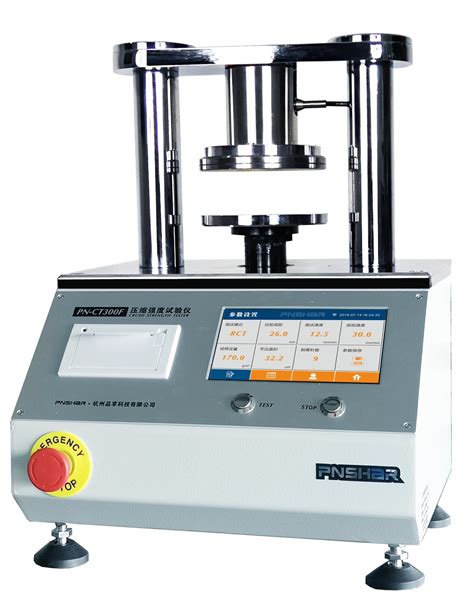

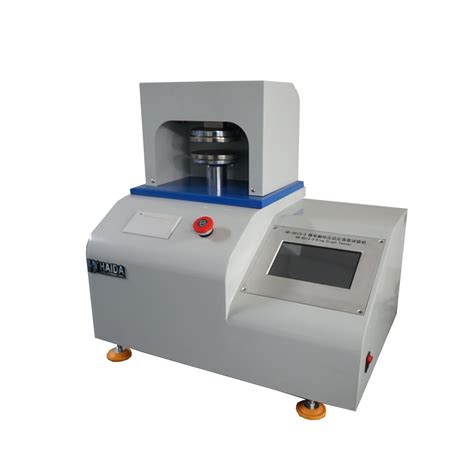

Image: Ring Crush Test Equipment
In conclusion, the Ring Crush Test is a vital method for evaluating the compressive strength of corrugated boards. By understanding the test process, factors affecting Ring Crush Strength, and the importance of the test in various industries, manufacturers can produce packaging materials that are both reliable and cost-effective. The advancements in testing technology and methods continue to enhance the accuracy and efficiency of the Ring Crush Test, ensuring that packaging materials meet the highest standards of quality and performance.
