Rim Offset Chart

Understanding the intricacies of wheel and tire fitment is crucial for any vehicle enthusiast or professional mechanic. One of the most important tools in this process is the Rim Offset Chart. This chart provides essential information about the offset of a wheel, which is the distance from the centerline of the wheel to the mounting surface. Proper use of a Rim Offset Chart can help ensure that your wheels are correctly aligned with your vehicle's suspension and brakes, leading to better handling, safety, and overall performance.

Table of Contents

What is Rim Offset?

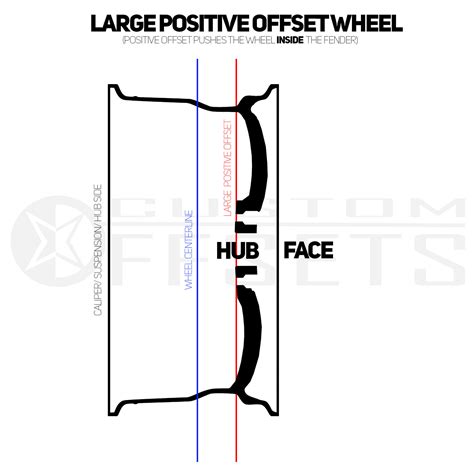

Rim offset is a critical measurement that determines how far in or out the wheel sits relative to the hub. It is typically measured in millimeters and can be positive, negative, or zero. Positive offset means the mounting surface is closer to the front of the wheel, while negative offset means it is closer to the back. Zero offset indicates that the mounting surface is exactly in the center of the wheel.

Understanding the Rim Offset Chart

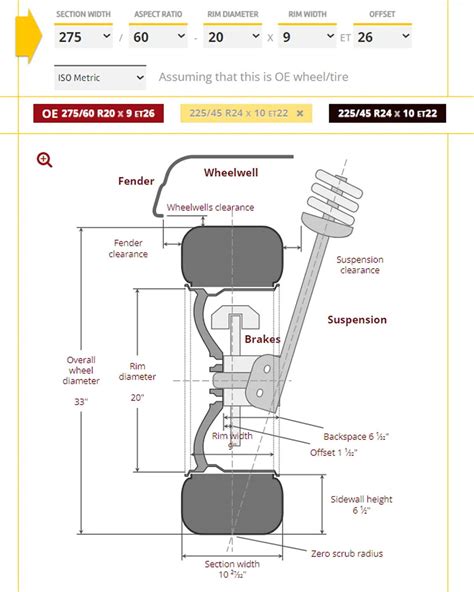

A Rim Offset Chart is a visual representation that lists various wheel sizes and their corresponding offsets. This chart is invaluable for selecting the right wheels for your vehicle, as it helps you understand how different offsets will affect the fitment and performance of your tires. The chart typically includes columns for wheel diameter, width, and offset, making it easy to find the perfect match for your vehicle.

How to Read a Rim Offset Chart

Reading a Rim Offset Chart involves understanding the key measurements and how they relate to your vehicle. Here’s a step-by-step guide to help you navigate the chart:

Wheel Diameter: This is the size of the wheel from one edge to the other, usually measured in inches. Common sizes include 15, 16, 17, 18, and 20 inches.
Wheel Width: This is the distance between the inner and outer flanges of the wheel, also measured in inches. It affects the tire’s contact patch and overall handling.
Offset: As mentioned earlier, this is the distance from the centerline of the wheel to the mounting surface. It can be positive, negative, or zero.

To use the chart, you need to know the specifications of your vehicle’s current wheels and tires. Once you have this information, you can cross-reference it with the chart to find compatible wheels with the desired offset.

Importance of Correct Rim Offset

Choosing the correct rim offset is essential for several reasons:

Handling and Stability: The right offset ensures that the tires are properly aligned with the vehicle’s suspension, improving handling and stability.
Clearance: Proper offset prevents the tires from rubbing against the suspension components or body panels, which can cause damage and reduce performance.
Aesthetics: The offset can also affect the overall appearance of your vehicle. A positive offset can make the wheels sit more flush with the fenders, while a negative offset can create a more aggressive, staggered look.

Incorrect offset can lead to various issues, including poor handling, uneven tire wear, and potential damage to the vehicle. Therefore, it is crucial to consult a Rim Offset Chart before making any changes to your wheels.

Common Rim Offset Measurements

Here is a table of common rim offset measurements for various wheel sizes:

Wheel Diameter (inches)	Wheel Width (inches)	Offset (mm)
15	6.5	45
16	7.0	40
17	7.5	35
18	8.0	30
20	8.5	25

These measurements are just examples and can vary depending on the make and model of your vehicle. Always refer to a Rim Offset Chart specific to your vehicle for the most accurate information.

Steps to Determine the Correct Rim Offset

Determining the correct rim offset involves several steps. Here’s a detailed guide to help you through the process:

Measure Your Current Wheels: Use a tape measure to determine the diameter and width of your current wheels. Note down these measurements.
Check the Offset: Look for the offset measurement on your current wheels. This is usually stamped on the back of the wheel.
Consult the Rim Offset Chart: Use a Rim Offset Chart to find compatible wheels with the desired offset. Make sure to consider the tire size and width as well.
Consider Clearance: Ensure that the new wheels have enough clearance to avoid rubbing against the suspension or body panels.
Test Fit: If possible, test fit the new wheels on your vehicle to ensure they align correctly with the suspension and brakes.

By following these steps, you can ensure that your new wheels are correctly aligned with your vehicle, providing optimal performance and safety.

🔍 Note: Always double-check the measurements and consult a professional if you are unsure about any aspect of the process.

Common Mistakes to Avoid

When selecting new wheels, it’s essential to avoid common mistakes that can lead to poor performance and potential damage. Here are some pitfalls to watch out for:

Ignoring Clearance: Not considering the clearance between the wheels and the suspension or body panels can result in rubbing and damage.
Incorrect Offset: Choosing the wrong offset can affect handling, stability, and tire wear. Always consult a Rim Offset Chart to ensure the correct offset.
Mismatched Tire Sizes: Using tires that are not compatible with your new wheels can lead to poor performance and safety issues.
Skipping Test Fits: Always test fit the new wheels to ensure they align correctly with the vehicle’s suspension and brakes.

By avoiding these mistakes, you can ensure that your new wheels provide the best possible performance and safety for your vehicle.

In summary, understanding and using a Rim Offset Chart is essential for selecting the right wheels for your vehicle. It helps ensure proper fitment, handling, and safety, making it a valuable tool for any vehicle enthusiast or professional mechanic. By following the steps outlined in this guide and avoiding common mistakes, you can confidently choose the perfect wheels for your vehicle.
