In the realm of wireless communication technologies, two terms often come up: RFID and NFC. Both are used for short-range communication and identification, but they have distinct differences that make them suitable for different applications. Understanding the RFID vs NFC debate can help you choose the right technology for your needs. This post will delve into the intricacies of both technologies, comparing their features, applications, and limitations.
Understanding RFID
Radio Frequency Identification (RFID) is a technology that uses radio waves to identify and track objects. It consists of three main components: the RFID tag (or transponder), the RFID reader (or interrogator), and the antenna. The RFID tag contains a microchip and an antenna, which allows it to communicate with the reader.
RFID tags can be passive, active, or battery-assisted passive:
- Passive RFID tags do not have their own power source and rely on the reader's electromagnetic field to power the tag and transmit data.
- Active RFID tags have their own power source, usually a battery, which allows them to transmit data over longer distances.
- Battery-Assisted Passive (BAP) RFID tags have a battery that is only used to power the tag's circuitry, not to transmit data.
RFID technology operates at various frequencies, including low frequency (LF), high frequency (HF), and ultra-high frequency (UHF). Each frequency range has its own advantages and limitations, making them suitable for different applications.
Understanding NFC
Near Field Communication (NFC) is a subset of RFID technology that operates at a high frequency (13.56 MHz). It is designed for short-range communication, typically within a few centimeters. NFC technology is widely used in mobile devices for contactless payments, data exchange, and access control.
NFC operates in three modes:
- Reader/Writer mode: The NFC device reads data from or writes data to an NFC tag.
- Peer-to-Peer (P2P) mode: Two NFC devices exchange data with each other.
- Card Emulation mode: The NFC device acts like a smart card, allowing it to be used for contactless payments and access control.
NFC technology is standardized and interoperable, meaning that NFC devices from different manufacturers can communicate with each other seamlessly. This makes NFC a popular choice for applications that require interoperability and ease of use.
RFID vs NFC: Key Differences
While both RFID and NFC are used for short-range communication and identification, they have several key differences:
| Feature | RFID | NFC |
|---|---|---|
| Frequency | LF, HF, UHF | HF (13.56 MHz) |
| Range | Up to 100 meters (depending on the type of tag and reader) | Up to 10 centimeters |
| Data Transfer Rate | Slow to moderate (depending on the frequency) | Fast (up to 424 kbps) |
| Power Source | Passive, active, or battery-assisted passive | Passive (powered by the reader's electromagnetic field) |
| Applications | Inventory management, asset tracking, supply chain management, access control | Contactless payments, data exchange, access control, mobile ticketing |
These differences make RFID and NFC suitable for different applications. For example, RFID is often used for inventory management and asset tracking due to its longer range and ability to read multiple tags simultaneously. On the other hand, NFC is commonly used for contactless payments and data exchange due to its short range and fast data transfer rate.

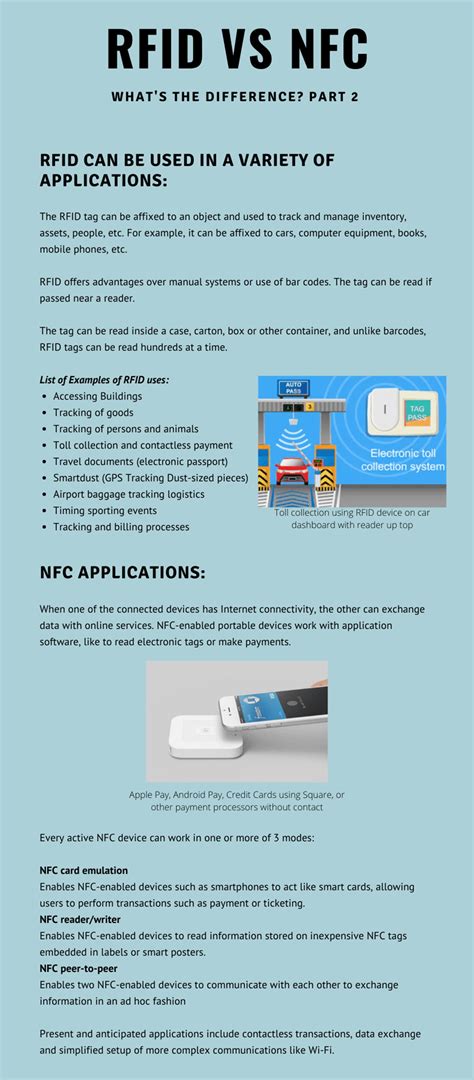

Applications of RFID
RFID technology has a wide range of applications across various industries. Some of the most common applications include:
- Inventory Management: RFID tags can be attached to products to track their movement and location in real-time, improving inventory accuracy and reducing stockouts.
- Asset Tracking: RFID tags can be used to track assets such as equipment, vehicles, and tools, helping organizations to manage their assets more efficiently.
- Supply Chain Management: RFID technology can be used to track goods as they move through the supply chain, improving visibility and reducing delays.
- Access Control: RFID cards or tags can be used to control access to buildings, rooms, or other secure areas.
- Animal Tracking: RFID tags can be implanted in animals to track their movement and monitor their health.
RFID technology is also used in libraries to track books, in retail to prevent theft, and in healthcare to track medical equipment and patients.
Applications of NFC
NFC technology is widely used in mobile devices for a variety of applications. Some of the most common applications include:
- Contactless Payments: NFC is used in mobile payment systems such as Apple Pay, Google Pay, and Samsung Pay, allowing users to make payments by tapping their phone on a payment terminal.
- Data Exchange: NFC can be used to exchange data between two devices, such as sharing contact information or transferring files.
- Access Control: NFC cards or tags can be used to control access to buildings, rooms, or other secure areas.
- Mobile Ticketing: NFC is used in mobile ticketing systems, allowing users to store and validate tickets on their mobile device.
- Loyalty Programs: NFC can be used to store and redeem loyalty points, allowing users to earn rewards and discounts.
NFC technology is also used in smart posters, allowing users to tap their phone on a poster to access additional information or content.
Security Considerations
Both RFID and NFC technologies have security considerations that need to be addressed. RFID tags can be read from a distance, making them vulnerable to eavesdropping and cloning. To mitigate these risks, encryption and authentication mechanisms can be used to protect the data stored on RFID tags.
NFC technology, due to its short range, is generally considered more secure than RFID. However, it is still vulnerable to relay attacks, where an attacker intercepts and relays the communication between two NFC devices. To prevent relay attacks, NFC devices can use secure element technology, which stores sensitive data in a tamper-resistant environment.
đź”’ Note: It is important to implement appropriate security measures to protect the data stored on RFID and NFC devices and to prevent unauthorized access.
Future Trends
The future of RFID and NFC technologies looks promising, with several trends emerging:
- Internet of Things (IoT): RFID and NFC technologies are expected to play a key role in the IoT, enabling objects to be connected and communicate with each other.
- Blockchain Integration: Integrating RFID and NFC with blockchain technology can enhance security and transparency, making it easier to track and verify the authenticity of goods.
- Enhanced Security: As security threats evolve, RFID and NFC technologies will need to adapt with more robust encryption and authentication mechanisms.
- Wider Adoption in Retail: RFID and NFC technologies are expected to see wider adoption in retail, improving inventory management, customer experience, and supply chain efficiency.
These trends highlight the ongoing evolution of RFID and NFC technologies, making them more versatile and secure for a wide range of applications.
In summary, RFID and NFC are both powerful technologies with distinct advantages and limitations. Understanding the differences between RFID vs NFC can help you choose the right technology for your specific needs, whether it’s for inventory management, contactless payments, or access control. Both technologies are poised to play a crucial role in the future of wireless communication and identification, driving innovation and efficiency across various industries.
