Rey Osterrieth Complex Figure

The Rey-Osterrieth Complex Figure Test (ROCFT) is a widely used neuropsychological assessment tool designed to evaluate various cognitive functions, including visual-spatial construction, visual memory, and planning. Developed by André Rey in 1941 and later modified by Paul Osterrieth, this test has become a staple in clinical and research settings for assessing cognitive impairments and developmental disorders.

Table of Contents

Understanding the Rey-Osterrieth Complex Figure Test

The ROCFT involves two main tasks: copying a complex figure and then recalling it from memory after a delay. The test figure is a complex geometric design that participants are asked to reproduce as accurately as possible. This process is divided into two phases:

Copy Phase: Participants are given the complex figure and asked to draw it exactly as it appears. This phase assesses visual-spatial construction abilities and planning skills.
Recall Phase: After a delay (usually 30 minutes), participants are asked to draw the figure from memory. This phase evaluates visual memory and retention.

The Rey-Osterrieth Complex Figure is particularly useful in diagnosing conditions such as Alzheimer's disease, traumatic brain injury, and developmental disorders like autism. The test provides insights into how well an individual can process and retain visual information, which is crucial for understanding various cognitive impairments.

Administration and Scoring

The administration of the ROCFT is straightforward but requires careful attention to detail. Here are the steps involved:

Preparation: Ensure the testing environment is quiet and free from distractions. Provide the participant with a blank sheet of paper and a pencil.
Copy Phase: Present the complex figure to the participant and instruct them to copy it as accurately as possible. Allow ample time for completion, typically around 5 minutes.
Delay Phase: After the copy phase, engage the participant in a distracting activity for 30 minutes. This can include simple tasks like answering questions or solving puzzles.
Recall Phase: After the delay, ask the participant to draw the figure from memory. Again, allow ample time for completion.

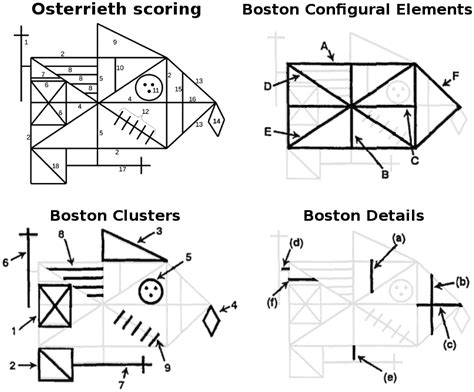

The scoring of the ROCFT involves evaluating both the copy and recall phases. The most commonly used scoring system is the Boston Qualitative Scoring System, which assesses various aspects of the drawing, including:

Accuracy of the overall structure
Placement and organization of elements
Detail and precision
Sequential planning and strategy

Each aspect is scored on a scale, and the total score provides a comprehensive assessment of the participant's cognitive abilities.

Interpreting the Results

Interpreting the results of the Rey-Osterrieth Complex Figure Test requires a thorough understanding of the scoring system and the cognitive functions being assessed. Here are some key points to consider:

Copy Phase: A low score in the copy phase may indicate difficulties with visual-spatial construction, planning, and attention to detail. This could be indicative of conditions like traumatic brain injury or developmental disorders.
Recall Phase: A low score in the recall phase suggests impairments in visual memory and retention. This is often seen in conditions like Alzheimer's disease or other forms of dementia.
Comparative Analysis: Comparing the copy and recall scores can provide insights into the specific nature of the cognitive impairment. For example, a significant drop in recall score compared to the copy score may indicate a memory deficit rather than a constructional deficit.

It is important to note that the ROCFT should be used in conjunction with other neuropsychological tests and clinical assessments to provide a comprehensive evaluation of cognitive functioning.

📝 Note: The Rey-Osterrieth Complex Figure Test is just one tool among many in the neuropsychological assessment toolkit. It should be interpreted in the context of a broader evaluation that includes other tests and clinical observations.

Clinical Applications

The Rey-Osterrieth Complex Figure Test has numerous clinical applications, making it a valuable tool for neuropsychologists and clinicians. Some of the key areas where the ROCFT is commonly used include:

Dementia Assessment: The ROCFT is particularly useful in assessing the progression of dementia, including Alzheimer's disease. The recall phase is especially sensitive to memory impairments associated with dementia.
Traumatic Brain Injury: Individuals who have suffered traumatic brain injuries often exhibit difficulties in visual-spatial construction and planning. The ROCFT can help identify these deficits and guide rehabilitation efforts.
Developmental Disorders: The test is also used to assess cognitive functioning in children with developmental disorders such as autism and attention deficit hyperactivity disorder (ADHD). It can provide insights into visual-spatial abilities and memory retention.
Neuropsychological Research: The ROCFT is widely used in research studies to investigate various aspects of cognitive functioning, including the effects of aging, neurological disorders, and interventions aimed at improving cognitive abilities.

In addition to these applications, the ROCFT can be used to monitor the effectiveness of cognitive rehabilitation programs and to track changes in cognitive functioning over time.

Case Studies and Examples

To illustrate the practical use of the Rey-Osterrieth Complex Figure Test, let's consider a few case studies:

Case Study 1: Alzheimer's Disease

An 70-year-old patient with suspected Alzheimer's disease underwent the ROCFT. During the copy phase, the patient was able to reproduce the figure with reasonable accuracy, scoring 25 out of 36. However, during the recall phase, the patient's score dropped significantly to 10 out of 36. This discrepancy suggested a severe memory impairment, consistent with the diagnosis of Alzheimer's disease.

Case Study 2: Traumatic Brain Injury

A 35-year-old patient who had suffered a traumatic brain injury was assessed using the ROCFT. The patient's copy phase score was 18 out of 36, indicating difficulties with visual-spatial construction and planning. The recall phase score was 12 out of 36, suggesting additional memory impairments. This information was used to develop a targeted rehabilitation program focusing on both constructional and memory skills.

Case Study 3: Developmental Disorder

A 10-year-old child with suspected autism was evaluated using the ROCFT. The child's copy phase score was 15 out of 36, indicating challenges with visual-spatial abilities. The recall phase score was 10 out of 36, suggesting memory retention issues. These findings were used to tailor educational interventions aimed at improving the child's cognitive functioning.

These case studies highlight the versatility of the Rey-Osterrieth Complex Figure Test in assessing a wide range of cognitive impairments and guiding clinical interventions.

Limitations and Considerations

While the Rey-Osterrieth Complex Figure Test is a valuable tool, it is not without limitations. Some considerations to keep in mind include:

Cultural and Educational Factors: Performance on the ROCFT can be influenced by cultural and educational backgrounds. Individuals from different cultural backgrounds or with varying levels of education may have different baseline performances, which can affect the interpretation of results.
Motor Skills: The test requires fine motor skills to draw the figure accurately. Individuals with motor impairments may struggle with the task, leading to lower scores that do not necessarily reflect cognitive deficits.
Practice Effects: Repeated administration of the ROCFT can lead to practice effects, where individuals improve their scores due to familiarity with the test rather than actual cognitive improvements. It is important to consider this when interpreting results from repeated assessments.

To mitigate these limitations, clinicians should use the ROCFT in conjunction with other neuropsychological tests and consider the individual's background and context when interpreting the results.

📝 Note: The Rey-Osterrieth Complex Figure Test should be administered by trained professionals who are familiar with the scoring system and the potential limitations of the test.

Future Directions

The Rey-Osterrieth Complex Figure Test continues to be a valuable tool in neuropsychological assessment, but there are always opportunities for improvement and innovation. Some future directions for the ROCFT include:

Digital Adaptations: Developing digital versions of the ROCFT that can be administered on tablets or computers. This could make the test more accessible and convenient for both clinicians and participants.
Enhanced Scoring Systems: Refining the scoring system to provide more detailed and nuanced assessments of cognitive functioning. This could include the development of new scoring criteria or the use of advanced statistical methods to analyze performance data.
Cross-Cultural Validation: Conducting studies to validate the ROCFT across different cultural and linguistic groups. This would help ensure that the test is culturally sensitive and applicable to diverse populations.

By addressing these areas, the Rey-Osterrieth Complex Figure Test can continue to evolve and remain a valuable tool in the field of neuropsychology.

In conclusion, the Rey-Osterrieth Complex Figure Test is a comprehensive and versatile tool for assessing visual-spatial construction, visual memory, and planning abilities. Its applications range from diagnosing cognitive impairments to guiding rehabilitation efforts and monitoring cognitive changes over time. While it has some limitations, the ROCFT remains a cornerstone of neuropsychological assessment, providing valuable insights into cognitive functioning and guiding clinical interventions. Its continued use and development will ensure that it remains a vital tool in the field of neuropsychology for years to come.
