Retaining walls are essential structures designed to hold back soil and prevent erosion, especially in areas with significant elevation changes. One critical aspect of retaining wall construction that often goes overlooked is the retaining wall drain. Proper drainage is crucial for the longevity and stability of any retaining wall. This post will delve into the importance of retaining wall drains, the types available, installation processes, and maintenance tips to ensure your retaining wall remains robust and functional.
Understanding the Importance of Retaining Wall Drains
A retaining wall drain is a system designed to manage water flow behind the wall, preventing hydrostatic pressure from building up. This pressure can cause the wall to crack, lean, or even collapse if not properly managed. Effective drainage ensures that water is directed away from the wall, maintaining its structural integrity.
Here are some key reasons why a retaining wall drain is essential:
- Prevents Water Buildup: Water can accumulate behind the wall, leading to increased pressure and potential failure.
- Reduces Soil Erosion: Proper drainage helps to keep the soil behind the wall stable, reducing the risk of erosion.
- Protects the Wall Structure: By directing water away, a drain system protects the wall from water damage, such as cracking and crumbling.
- Enhances Longevity: A well-drained retaining wall will last longer, saving you from costly repairs and replacements.
Types of Retaining Wall Drains
There are several types of retaining wall drains available, each suited to different situations and wall designs. Understanding the options can help you choose the best system for your needs.
Perforated Pipes
Perforated pipes are one of the most common types of retaining wall drains. These pipes have small holes that allow water to enter and flow through, directing it away from the wall. They are typically installed at the base of the wall and covered with gravel to facilitate water flow.
Drainage Mats
Drainage mats are thin, flexible sheets with a dimpled surface that allows water to flow freely. They are often used in conjunction with perforated pipes and are placed against the wall to collect and direct water away. Drainage mats are particularly useful in areas with limited space.
French Drains
A French drain is a trench filled with gravel or rock that contains a perforated pipe. Water seeps into the trench, flows through the gravel, and is collected by the pipe, which then directs it away from the wall. French drains are effective for larger areas and can handle significant water flow.
Geotextile Fabrics
Geotextile fabrics are permeable materials used to filter water and prevent soil from clogging the drainage system. They are often wrapped around perforated pipes or placed behind the wall to enhance drainage efficiency. Geotextile fabrics are particularly useful in areas with fine-grained soils.
Installing a Retaining Wall Drain
Installing a retaining wall drain involves several steps, each crucial for ensuring the system functions correctly. Here’s a detailed guide to help you through the process:
Step 1: Planning and Preparation
Before beginning, assess the site to determine the best type of drain system. Consider factors such as soil type, water flow, and the wall’s design. Gather the necessary materials, including perforated pipes, gravel, geotextile fabric, and any other required components.
Step 2: Excavation
Excavate a trench at the base of the retaining wall. The trench should be wide enough to accommodate the drain pipe and gravel. Ensure the trench slopes away from the wall to facilitate water flow.

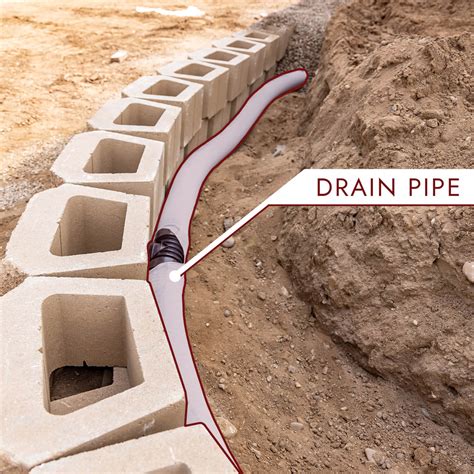

Step 3: Installing the Drain Pipe

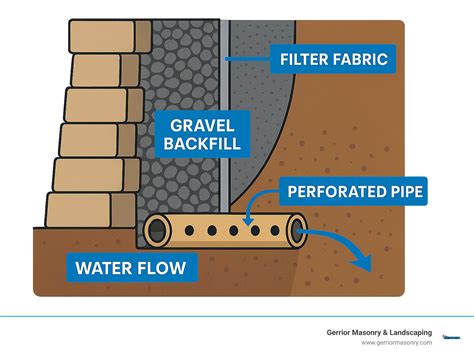

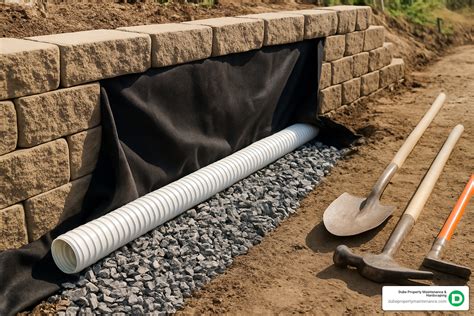

Place the perforated pipe in the trench, ensuring it slopes away from the wall. Cover the pipe with a layer of gravel to create a bed for water to flow through. Wrap the pipe in geotextile fabric to prevent soil from clogging the perforations.
Step 4: Backfilling

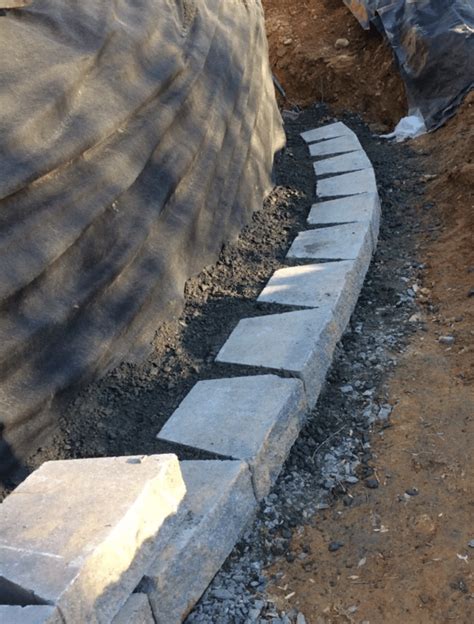

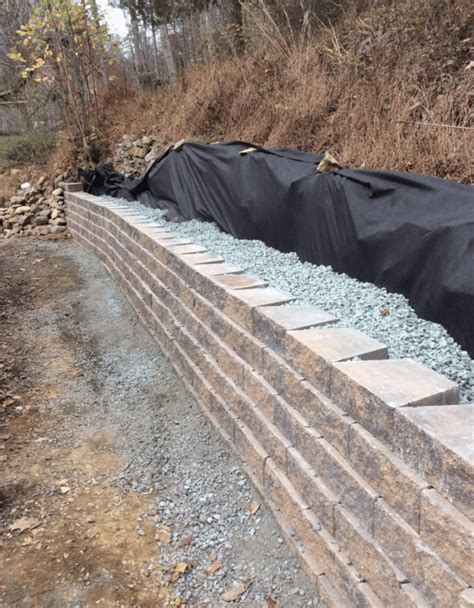

Backfill the trench with gravel, ensuring it surrounds the pipe completely. This layer of gravel will help filter water and direct it into the pipe. Continue backfilling with soil, compacting it as you go to prevent settling.
Step 5: Final Touches
Install any additional drainage components, such as drainage mats or French drains, as needed. Ensure all connections are secure and that the system is functioning correctly before covering it with soil or landscaping.
🔧 Note: Always check local building codes and regulations before installing a retaining wall drain to ensure compliance with safety standards.
Maintaining Your Retaining Wall Drain
Maintaining your retaining wall drain is essential for its long-term effectiveness. Regular inspections and maintenance can prevent issues before they become significant problems. Here are some tips for keeping your drain system in top condition:
Regular Inspections
Inspect your drain system regularly, especially after heavy rainfall or during spring thaw. Look for signs of clogging, such as water pooling behind the wall or slow drainage. Check the pipe for any damage or blockages.
Cleaning the Drain
Clean the drain system as needed to remove debris and prevent clogging. Use a high-pressure water jet to clear out the pipe and gravel bed. Ensure that any geotextile fabric is free of debris and in good condition.
Repairing Damage
If you notice any damage to the drain system, such as cracks in the pipe or tears in the geotextile fabric, repair it promptly. Replace any damaged components to maintain the system’s effectiveness.
Landscaping Considerations
Be mindful of landscaping around the retaining wall. Avoid planting trees or shrubs too close to the wall, as their roots can damage the drain system. Ensure that any water features or irrigation systems do not direct water towards the wall.
🌱 Note: Regularly check the soil behind the wall for signs of erosion or settling, which can indicate drainage issues.
Common Issues with Retaining Wall Drains
Even with proper installation and maintenance, issues can arise with retaining wall drains. Being aware of common problems can help you address them quickly and effectively.
Clogging
Clogging is one of the most common issues with retaining wall drains. Debris, soil, and plant roots can block the perforations in the pipe, preventing water from flowing through. Regular cleaning and inspections can help prevent clogging.
Pipe Damage
Perforated pipes can become damaged over time due to soil movement, freezing temperatures, or physical impact. Inspect the pipe regularly for signs of damage, such as cracks or breaks, and replace it if necessary.
Inadequate Slope
If the drain pipe does not slope away from the wall correctly, water may not flow through the system efficiently. Ensure the pipe is installed with the proper slope to facilitate water flow.
Soil Erosion
Soil erosion behind the wall can compromise the stability of the retaining wall and the drain system. Regularly check the soil for signs of erosion and address any issues promptly to maintain the wall’s integrity.
🛠️ Note: If you encounter persistent issues with your retaining wall drain, consider consulting a professional for a thorough assessment and repair.
Case Studies: Successful Retaining Wall Drain Installations
To illustrate the importance of a well-designed retaining wall drain, let’s look at a couple of case studies where proper drainage played a crucial role in the success of the retaining wall.
Residential Retaining Wall
A homeowner in a hilly area installed a retaining wall to create a level yard for landscaping. The wall was designed to hold back a significant amount of soil, and proper drainage was essential to prevent water buildup. The homeowner installed a perforated pipe with a gravel bed and geotextile fabric. After several years, the wall remains stable, and the drainage system effectively manages water flow.
Commercial Retaining Wall
A commercial property with a steep slope required a retaining wall to support a parking lot. The wall was designed with a French drain system to handle the substantial water flow from rainfall and snowmelt. The French drain, combined with a drainage mat, ensured that water was directed away from the wall, preventing any structural issues. The wall has withstood heavy use and weather conditions, thanks to the effective drainage system.
These case studies highlight the importance of a well-designed retaining wall drain in maintaining the stability and longevity of retaining walls in various settings.
In conclusion, a retaining wall drain is a critical component of any retaining wall system. Proper drainage ensures the wall’s structural integrity, prevents water damage, and enhances its longevity. By understanding the types of drains available, following proper installation procedures, and maintaining the system regularly, you can ensure your retaining wall remains robust and functional for years to come. Regular inspections and prompt repairs can address common issues, keeping your drain system in top condition. Whether for residential or commercial use, investing in a well-designed drainage system is essential for the success of your retaining wall project.
