Understanding the principles of electrical resistance is fundamental for anyone working with electronics or electrical systems. Resistance is measured in ohms, a unit named after the German physicist Georg Simon Ohm. This measurement is crucial for designing circuits, troubleshooting electrical issues, and ensuring the safety and efficiency of electrical systems.
What is Electrical Resistance?
Electrical resistance is a measure of the opposition to the flow of electric current in a circuit. It is a fundamental property of materials and is influenced by factors such as the material’s composition, temperature, and physical dimensions. Resistance is measured in ohms (Ω), and it plays a critical role in determining the behavior of electrical circuits.
How Resistance is Measured In Ohms
Resistance is measured in ohms, a unit that quantifies the opposition to the flow of electric current. The ohm is defined as the resistance between two points in a conductor when a constant potential difference of one volt, applied to these points, produces a current of one ampere. This relationship is described by Ohm’s Law, which states that the current (I) flowing through a conductor is directly proportional to the voltage (V) applied across it, and inversely proportional to the resistance ®. Mathematically, this is expressed as:
V = IR
Factors Affecting Resistance
Several factors influence the resistance of a material. Understanding these factors is essential for designing and troubleshooting electrical circuits. The key factors include:
- Material Composition: Different materials have different resistivities. For example, copper is a good conductor with low resistivity, while materials like rubber are insulators with high resistivity.
- Temperature: The resistance of most materials changes with temperature. For metals, resistance increases with temperature, while for semiconductors, resistance decreases with temperature.
- Length: The longer the conductor, the higher the resistance. This is because a longer path provides more opportunities for collisions between electrons and atoms.
- Cross-Sectional Area: The resistance is inversely proportional to the cross-sectional area of the conductor. A thicker wire has less resistance than a thinner wire of the same material and length.
Measuring Resistance

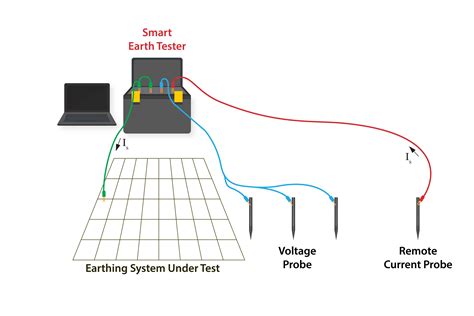

Measuring resistance accurately is crucial for ensuring the proper functioning of electrical circuits. There are several methods and tools used to measure resistance:

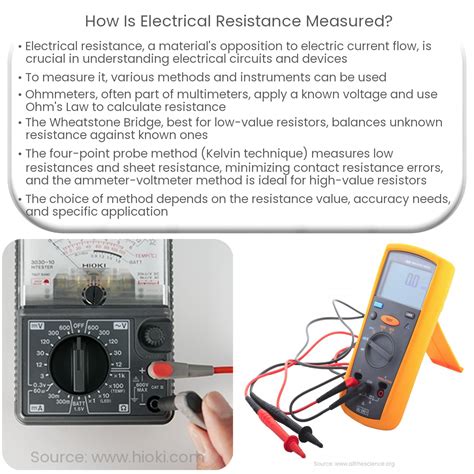

Using a Multimeter
A multimeter is a versatile tool that can measure voltage, current, and resistance. To measure resistance using a multimeter, follow these steps:
- Set the multimeter to the resistance (Ω) setting.
- Ensure the circuit is de-energized to avoid damaging the multimeter.
- Connect the multimeter probes to the two points where you want to measure the resistance.
- Read the resistance value displayed on the multimeter.
🔍 Note: Always ensure the circuit is turned off before measuring resistance to avoid inaccurate readings and potential damage to the multimeter.
Using Ohm’s Law
Ohm’s Law can be used to calculate resistance when the voltage and current are known. The formula for resistance is:
R = V / I
For example, if you have a voltage of 12 volts and a current of 3 amperes, the resistance can be calculated as:
R = 12V / 3A = 4Ω
Using a Resistance Bridge
A resistance bridge, such as the Wheatstone bridge, is a more precise method for measuring resistance. It compares an unknown resistance to a known resistance and adjusts until the bridge is balanced. This method is often used in laboratory settings for high-precision measurements.
Applications of Resistance Measurement
Measuring resistance is essential in various applications, including:
Electronics Design
In electronics design, accurate resistance measurement is crucial for ensuring that components function as intended. Designers use resistance values to calculate voltage drops, current flows, and power dissipation in circuits.
Troubleshooting Electrical Issues
When troubleshooting electrical issues, measuring resistance can help identify faulty components. For example, a short circuit or an open circuit can be detected by measuring the resistance across the suspected component.
Quality Control
In manufacturing, resistance measurement is used for quality control to ensure that components meet specified standards. This is particularly important in industries where precision is critical, such as aerospace and automotive.
Common Resistance Values
Resistors come in various standard values, which are often used in electronic circuits. These values are typically based on the E-series, which provides a range of standard resistor values. The most common series are the E6, E12, E24, E48, E96, and E192 series. The E6 series, for example, includes the following values:
| Value | Tolerance |
|---|---|
| 1.0 | ±20% |
| 1.5 | ±20% |
| 2.2 | ±20% |
| 3.3 | ±20% |
| 4.7 | ±20% |
| 6.8 | ±20% |
Resistance in Series and Parallel Circuits
Understanding how resistance behaves in series and parallel circuits is essential for designing and analyzing electrical systems.
Series Circuits
In a series circuit, the total resistance is the sum of the individual resistances. This can be expressed as:
R_total = R1 + R2 + R3 + … + Rn
For example, if you have three resistors with values of 10Ω, 20Ω, and 30Ω in series, the total resistance would be:
R_total = 10Ω + 20Ω + 30Ω = 60Ω
Parallel Circuits
In a parallel circuit, the total resistance is calculated using the reciprocal of the sum of the reciprocals of the individual resistances. This can be expressed as:
1/R_total = 1/R1 + 1/R2 + 1/R3 + … + 1/Rn
For example, if you have three resistors with values of 10Ω, 20Ω, and 30Ω in parallel, the total resistance would be:
1/R_total = 1/10Ω + 1/20Ω + 1/30Ω = 0.1 + 0.05 + 0.033 = 0.183
R_total = 1⁄0.183 ≈ 5.46Ω
Safety Considerations
When measuring resistance, it is important to follow safety guidelines to avoid injury and damage to equipment. Some key safety considerations include:
- Always ensure the circuit is de-energized before measuring resistance.
- Use insulated tools and wear appropriate personal protective equipment (PPE).
- Avoid measuring resistance in live circuits, as this can damage the multimeter and pose a risk of electric shock.
- Regularly calibrate your measuring instruments to ensure accurate readings.
🛡️ Note: Never measure resistance in a live circuit. Always turn off the power and discharge any capacitors before taking measurements.
Understanding how resistance is measured in ohms and the factors that affect it is crucial for anyone working with electrical systems. By following the guidelines and methods outlined above, you can ensure accurate measurements and safe practices in your electrical work. Whether you are designing circuits, troubleshooting issues, or conducting quality control, a solid understanding of resistance is essential for success.
