Understanding the concepts of resistance and resistivity is fundamental in the field of electronics and electrical engineering. These concepts are crucial for designing and analyzing electrical circuits, as they help determine how electrical components behave under different conditions. This post will delve into the definitions, formulas, and practical applications of resistance and resistivity, providing a comprehensive guide for both beginners and experienced professionals.
What is Resistance?
Resistance is a measure of the opposition to the flow of electric current in a circuit. It is denoted by the symbol R and is measured in ohms (Ω). The resistance of a material depends on several factors, including its length, cross-sectional area, and the material’s resistivity.
Factors Affecting Resistance
Several factors influence the resistance of a conductor:
- Length of the Conductor: The longer the conductor, the higher the resistance.
- Cross-Sectional Area: A larger cross-sectional area results in lower resistance.
- Material: Different materials have different resistivities, which affect the overall resistance.
- Temperature: The resistance of most materials increases with temperature.
Ohm’s Law
Ohm’s Law is a fundamental principle in electronics that relates voltage (V), current (I), and resistance (R). The law states that the current through a conductor between two points is directly proportional to the voltage across the two points. Mathematically, it is expressed as:
V = IR
This equation can be rearranged to solve for current or resistance:
I = V/R
R = V/I

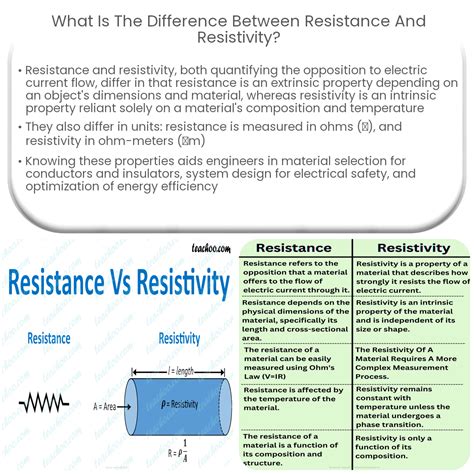

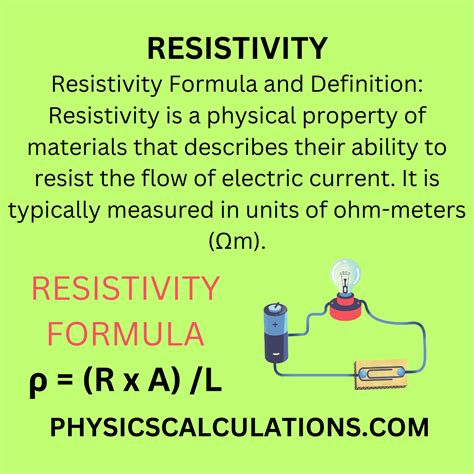

Resistivity
Resistivity, denoted by the symbol ρ (rho), is a material property that quantifies how strongly a given material opposes the flow of electric current. It is measured in ohm-meters (Ω·m). Resistivity is defined as the resistance of a unit cube of the material, where the length of each side is 1 meter.

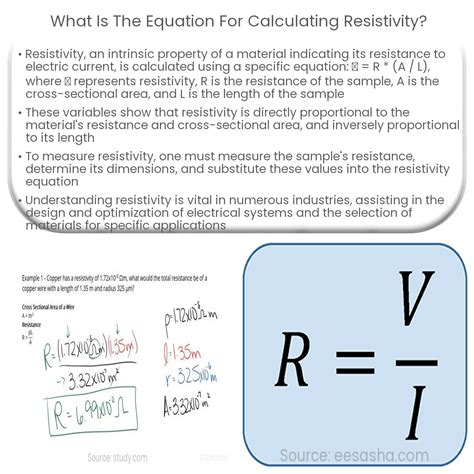

Formula for Resistivity
The formula for resistivity is derived from the resistance formula and is given by:
ρ = RA/L
Where:
- ρ is the resistivity
- R is the resistance
- A is the cross-sectional area
- L is the length of the conductor
Resistance and Resistivity in Different Materials
Different materials have varying resistivities, which makes them suitable for different applications. Here is a table showing the resistivity of some common materials:
| Material | Resistivity (Ω·m) |
|---|---|
| Silver | 1.59 × 10-8 |
| Copper | 1.68 × 10-8 |
| Aluminum | 2.65 × 10-8 |
| Gold | 2.44 × 10-8 |
| Iron | 9.71 × 10-8 |
| Nickel | 6.99 × 10-8 |
| Tungsten | 5.6 × 10-8 |
| Glass | 1010 to 1014 |
| Rubber | 1013 to 1016 |
Practical Applications of Resistance and Resistivity
Understanding resistance and resistivity is essential for various practical applications in electronics and electrical engineering. Some key applications include:
- Electrical Wiring: Conductors with low resistivity, such as copper and aluminum, are used for electrical wiring to minimize energy loss.
- Resistors: Components with specific resistance values are used to control current flow in circuits. These are made from materials with known resistivities.
- Heating Elements: Materials with high resistivity, such as nichrome, are used in heating elements because they generate heat when current passes through them.
- Sensors: Resistive sensors, such as thermistors and strain gauges, change their resistance in response to environmental changes, making them useful for measurement and control applications.
Temperature Dependence of Resistance
The resistance of a material can change with temperature. This temperature dependence is crucial in applications where temperature stability is important. The relationship between resistance and temperature is often described by the temperature coefficient of resistance (α), which is defined as:
α = (ΔR/R₀) / ΔT
Where:
- ΔR is the change in resistance
- R₀ is the initial resistance
- ΔT is the change in temperature
For most metals, the resistance increases with temperature, making α positive. However, for semiconductors, the resistance typically decreases with temperature, making α negative.
💡 Note: The temperature coefficient of resistance is an important parameter to consider when designing circuits that operate over a wide temperature range.
Superconductors and Zero Resistance
Superconductors are materials that exhibit zero electrical resistance below a certain critical temperature. This property makes them ideal for applications requiring high current densities and minimal energy loss. Some common superconductors include:
- Niobium-titanium (NbTi)
- Niobium-tin (Nb₃Sn)
- Yttrium barium copper oxide (YBCO)
Superconductors have revolutionized fields such as magnetic resonance imaging (MRI), particle accelerators, and high-speed trains.
Resistance in Series and Parallel Circuits
In electrical circuits, resistors can be connected in series or parallel, and the total resistance of the circuit depends on the configuration.
Series Circuits
In a series circuit, the total resistance (Rtotal) is the sum of the individual resistances:
Rtotal = R₁ + R₂ + R₃ + … + Rn
Parallel Circuits
In a parallel circuit, the total resistance is given by the reciprocal of the sum of the reciprocals of the individual resistances:
1/Rtotal = 1/R₁ + 1/R₂ + 1/R₃ + … + 1/Rn
This can be simplified to:
Rtotal = 1 / (1/R₁ + 1/R₂ + 1/R₃ + … + 1/Rn)
💡 Note: Understanding how to calculate total resistance in series and parallel circuits is essential for designing and analyzing complex electrical systems.
Measuring Resistance
Resistance can be measured using various instruments, with the most common being the multimeter. A multimeter is a versatile tool that can measure voltage, current, and resistance. To measure resistance:
- Set the multimeter to the resistance (Ω) setting.
- Connect the probes to the component whose resistance you want to measure.
- Read the resistance value displayed on the multimeter.
It is important to ensure that the component is not connected to any power source while measuring its resistance, as this can affect the accuracy of the reading.
💡 Note: Always follow safety guidelines when using electrical measurement tools to avoid potential hazards.
Conclusion
Understanding resistance and resistivity is crucial for anyone working in the field of electronics and electrical engineering. These concepts form the foundation for designing and analyzing electrical circuits, ensuring efficient and reliable performance. By grasping the factors that affect resistance, the relationship between resistance and resistivity, and the practical applications of these principles, professionals can create innovative solutions for a wide range of applications. Whether dealing with simple circuits or complex systems, a solid understanding of resistance and resistivity is essential for success in the field.
