Electrical systems are the backbone of modern infrastructure, powering everything from homes to industrial facilities. Ensuring the safety and efficiency of these systems is paramount, and one crucial component in this regard is the circuit breaker. Circuit breakers protect electrical circuits from damage caused by overloads or short circuits. Over time, these devices may need to be replaced due to wear and tear, malfunction, or upgrades to the electrical system. This guide will walk you through the process of Replacing A Circuit Breaker, ensuring that you can maintain the safety and reliability of your electrical system.
Understanding Circuit Breakers
Before diving into the replacement process, it’s essential to understand what circuit breakers are and their role in electrical systems. Circuit breakers are automatic switches designed to protect an electrical circuit from damage caused by excess current from an overload or short circuit. They interrupt the current flow when a fault is detected, preventing overheating and potential fires.
Types of Circuit Breakers
There are several types of circuit breakers, each designed for specific applications:
- Standard Circuit Breakers: These are commonly used in residential settings to protect individual circuits.
- Ground Fault Circuit Interrupters (GFCIs): These are designed to protect against electrical shocks and are often used in areas with water, such as bathrooms and kitchens.
- Arc Fault Circuit Interrupters (AFCIs): These protect against electrical fires caused by arcing faults and are required in many modern residential electrical systems.
- Miniature Circuit Breakers (MCBs): These are compact and used in low-voltage applications, commonly found in residential and commercial settings.
- Molded Case Circuit Breakers (MCCBs): These are larger and used in industrial settings to protect high-current circuits.
When to Replace a Circuit Breaker
Knowing when to replace a circuit breaker is crucial for maintaining electrical safety. Here are some signs that indicate it’s time for a replacement:
- Frequent tripping without an apparent cause.
- Burning smell or visible signs of burning around the breaker.
- Discoloration or charring on the breaker or panel.
- Breaker feels hot to the touch.
- Visible damage or corrosion on the breaker.
- Breaker does not stay in the “on” position.
Tools and Materials Needed
Before you begin the process of Replacing A Circuit Breaker, gather the necessary tools and materials:
- New circuit breaker (ensure it matches the specifications of the old one).
- Screwdriver (flathead or Phillips, depending on your panel).
- Non-contact voltage tester.
- Safety glasses.
- Insulated gloves.
Safety Precautions
Safety is paramount when working with electrical systems. Follow these precautions:
- Turn off the main power supply to the electrical panel.
- Use a non-contact voltage tester to ensure the circuit is dead.
- Wear safety glasses and insulated gloves.
- Avoid working in damp or wet conditions.
- Keep a fire extinguisher nearby.
Step-by-Step Guide to Replacing a Circuit Breaker
Follow these steps to safely replace a circuit breaker:
Step 1: Turn Off the Main Power
Locate the main power switch in your electrical panel and turn it off. This will cut power to the entire panel, ensuring safety during the replacement process.
Step 2: Test the Circuit
Use a non-contact voltage tester to verify that the circuit is dead. Touch the tester to the terminals of the breaker you plan to replace. If the tester does not indicate any voltage, it is safe to proceed.

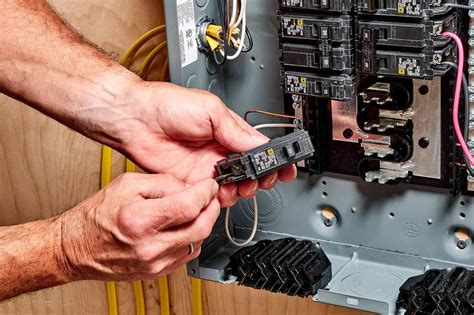

Step 3: Remove the Old Breaker
Open the electrical panel door and locate the breaker you need to replace. Use a screwdriver to loosen the screw holding the breaker in place. Gently pull the breaker out of the panel, being careful not to touch any live wires.
Step 4: Inspect the Wiring
Once the old breaker is removed, inspect the wiring for any signs of damage or corrosion. If the wires are damaged, they may need to be replaced or repaired before installing the new breaker.
Step 5: Install the New Breaker
Insert the new breaker into the panel, ensuring it is properly aligned with the bus bars. Push the breaker firmly into place and tighten the screw to secure it.
Step 6: Restore Power
Close the electrical panel door and turn the main power switch back on. Use the non-contact voltage tester to verify that the new breaker is functioning correctly and that power has been restored to the circuit.
🔧 Note: Always ensure that the new breaker matches the specifications of the old one, including amperage and type.
Troubleshooting Common Issues
Even with careful installation, issues can arise. Here are some common problems and their solutions:
Breaker Keeps Tripping
If the new breaker keeps tripping, it may be due to an overload or short circuit. Check the circuit for any devices or appliances that may be drawing too much power. If the problem persists, consult a licensed electrician.
No Power to the Circuit
If there is no power to the circuit after replacing the breaker, ensure that the breaker is properly installed and that the main power supply is on. Use a non-contact voltage tester to check for any issues with the wiring.
Burning Smell
If you detect a burning smell after replacing the breaker, immediately turn off the main power supply and inspect the panel for any signs of damage or overheating. If necessary, consult a licensed electrician.
Maintaining Your Electrical System
Regular maintenance of your electrical system can prevent the need for frequent Replacing A Circuit Breaker. Here are some tips for maintaining your electrical system:
- Inspect your electrical panel regularly for any signs of damage or wear.
- Keep the panel area clear of debris and flammable materials.
- Avoid overloading circuits by distributing electrical devices evenly.
- Use surge protectors to safeguard against power surges.
- Schedule regular inspections by a licensed electrician.
By following these maintenance tips, you can extend the lifespan of your circuit breakers and ensure the safety and reliability of your electrical system.
Common Mistakes to Avoid
When Replacing A Circuit Breaker, it’s essential to avoid common mistakes that can lead to safety hazards or system malfunctions. Here are some pitfalls to watch out for:
Using the Wrong Breaker
Ensure that the new breaker matches the specifications of the old one. Using a breaker with the wrong amperage or type can lead to overheating, fires, or electrical shocks.
Improper Installation
Follow the installation steps carefully to ensure the breaker is properly secured and aligned with the bus bars. Improper installation can cause the breaker to malfunction or trip frequently.
Ignoring Safety Precautions
Always turn off the main power supply and use a non-contact voltage tester to ensure the circuit is dead before working on the panel. Ignoring safety precautions can result in electrical shocks or fires.
Overloading the Circuit
After replacing the breaker, avoid overloading the circuit by distributing electrical devices evenly. Overloading can cause the breaker to trip frequently or lead to electrical fires.
Conclusion
Replacing a circuit breaker is a crucial task that ensures the safety and reliability of your electrical system. By understanding the types of circuit breakers, recognizing when to replace them, and following the step-by-step guide, you can safely and effectively replace a circuit breaker. Regular maintenance and avoiding common mistakes will help extend the lifespan of your electrical components and prevent potential hazards. Always prioritize safety and consult a licensed electrician if you encounter any issues beyond your expertise.
