Replace Oil Pan Gasket

Maintaining your vehicle's engine is crucial for its longevity and performance. One of the essential components that often requires attention is the oil pan gasket. This small but vital part seals the oil pan to the engine block, preventing oil leaks that can lead to significant engine damage if left unaddressed. Replacing the oil pan gasket is a task that many car enthusiasts and DIY mechanics can handle with the right tools and knowledge. This guide will walk you through the process of replacing the oil pan gasket, ensuring your engine stays in top condition.

Table of Contents

Understanding the Oil Pan Gasket

The oil pan gasket is a critical seal that prevents engine oil from leaking out of the oil pan. Over time, this gasket can degrade due to heat, pressure, and the natural aging of the material. When the gasket fails, it can cause oil leaks, which not only waste oil but also risk contaminating other engine components. Regular inspections and timely replacement of the oil pan gasket can prevent these issues and keep your engine running smoothly.

Signs That You Need to Replace the Oil Pan Gasket

Identifying the need to replace the oil pan gasket involves recognizing specific symptoms. Here are some common signs:

Oil Leaks: The most obvious sign is visible oil leaks underneath your vehicle. These leaks are often noticed as puddles of oil on the ground where the car has been parked.
Low Oil Pressure: A failing oil pan gasket can cause a drop in oil pressure, which may trigger the oil pressure warning light on your dashboard.
Burning Oil Smell: If you notice a burning oil smell, it could indicate that oil is leaking onto hot engine components.
Engine Overheating: In severe cases, a significant oil leak can lead to engine overheating, as the oil is crucial for cooling the engine.

Tools and Materials Needed

Before you start the replacement process, gather the necessary tools and materials:

Socket set
Wrenches
Screwdriver set
Jack and jack stands
Drain pan

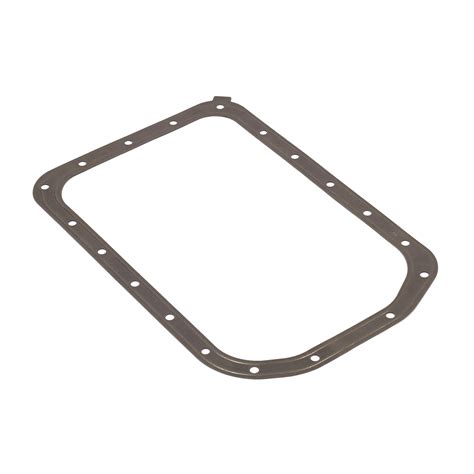

New oil pan gasket
Gasket sealant
Rags or towels
Engine degreaser
Safety glasses
Gloves

Step-by-Step Guide to Replace Oil Pan Gasket

Replacing the oil pan gasket involves several steps. Follow this guide carefully to ensure a successful replacement.

Step 1: Prepare Your Vehicle

Begin by parking your vehicle on a flat surface and allowing the engine to cool down. Safety is paramount, so ensure the engine is not hot to the touch before proceeding.

Step 2: Drain the Engine Oil

Locate the oil drain plug underneath the vehicle. Place a drain pan beneath the plug and use a socket wrench to loosen and remove it. Allow all the oil to drain completely. This step is crucial as it prevents oil from spilling during the gasket replacement process.

Step 3: Remove the Oil Pan

With the oil drained, use a socket set to remove the bolts securing the oil pan to the engine block. Start from the center and work your way out to ensure even pressure release. Once all bolts are removed, carefully tap the oil pan with a rubber mallet to break the seal and remove it.

Step 4: Clean the Surfaces

Use an engine degreaser and rags to clean the mating surfaces of the oil pan and engine block. Remove any old gasket material, dirt, or debris. Ensure the surfaces are completely clean and dry before proceeding.

Step 5: Inspect the Oil Pan

Inspect the oil pan for any signs of damage, such as cracks or warping. If the oil pan is damaged, it may need to be replaced. If it is in good condition, you can proceed with the gasket replacement.

Step 6: Apply Gasket Sealant

Apply a thin layer of gasket sealant to the new oil pan gasket. This helps create a stronger seal and prevents leaks. Follow the manufacturer’s instructions for the specific sealant you are using.

Step 7: Install the New Gasket

Place the new gasket onto the oil pan, ensuring it is properly aligned. Carefully position the oil pan back onto the engine block, aligning the bolt holes. Apply even pressure to ensure the gasket is seated correctly.

Step 8: Secure the Oil Pan

Reinstall the bolts in a crisscross pattern to ensure even pressure distribution. Tighten the bolts to the manufacturer’s specified torque settings. Avoid overtightening, as this can warp the oil pan or damage the gasket.

Step 9: Refill the Engine Oil

Refill the engine with the recommended type and amount of oil. Check the oil level using the dipstick and add more oil if necessary. Dispose of the old oil and filter responsibly.

Step 10: Test the Engine

Start the engine and let it run for a few minutes. Check for any signs of leaks around the oil pan. If everything is in order, turn off the engine and allow it to cool down before checking the oil level again.

🛠️ Note: Always refer to your vehicle's owner manual for specific instructions and torque specifications.

🛠️ Note: If you notice any leaks after the replacement, double-check the gasket and bolts for proper installation.

Common Mistakes to Avoid

When replacing the oil pan gasket, it’s essential to avoid common mistakes that can lead to leaks or other issues:

Incomplete Drainage: Ensure all oil is drained before removing the oil pan to prevent spills.
Improper Cleaning: Thoroughly clean the mating surfaces to remove all old gasket material and debris.
Incorrect Gasket Installation: Ensure the new gasket is properly aligned and seated before reinstalling the oil pan.
Overtightening Bolts: Follow the manufacturer’s torque specifications to avoid damaging the oil pan or gasket.

Maintenance Tips

Regular maintenance can help extend the life of your oil pan gasket and prevent future leaks. Here are some tips to keep your engine in top condition:

Regular Oil Changes: Follow the recommended oil change intervals to keep your engine lubricated and clean.
Inspect for Leaks: Periodically check for oil leaks and address any issues promptly.
Use High-Quality Oil: Choose a high-quality engine oil that meets your vehicle’s specifications.
Avoid Overheating: Ensure your engine does not overheat, as high temperatures can degrade the gasket.

Replacing the oil pan gasket is a crucial maintenance task that can save you from costly engine repairs. By following this guide and taking the necessary precautions, you can successfully replace the oil pan gasket and keep your engine running smoothly. Regular inspections and timely replacements will ensure your vehicle remains reliable and efficient.
