Register Transfer Logic

In the realm of digital design and computer architecture, Register Transfer Logic (RTL) stands as a fundamental concept that underpins the functionality of modern processors and digital systems. RTL is a high-level abstraction used to describe the behavior of synchronous digital circuits. It focuses on the transfer of data between registers and the operations performed on that data, providing a clear and structured way to design and verify digital systems.

Table of Contents

Understanding Register Transfer Logic

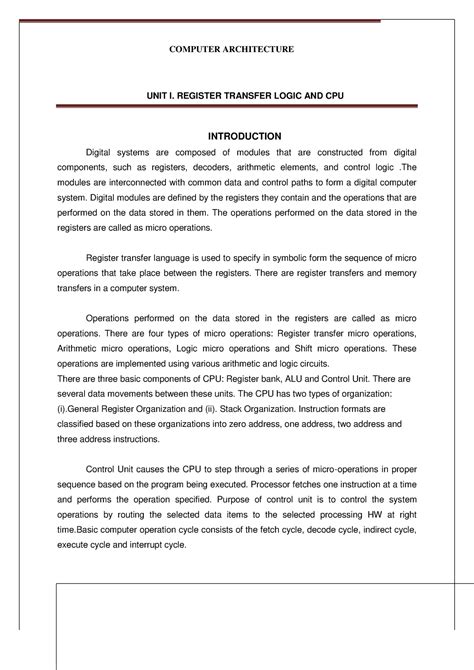

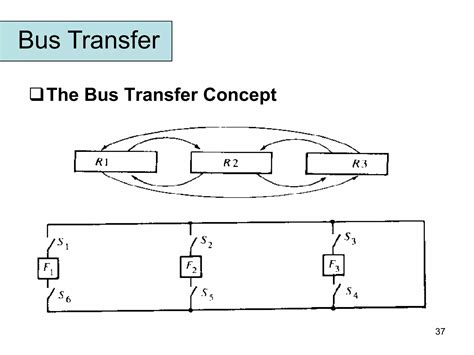

Register Transfer Logic (RTL) is a design methodology that describes the flow of data between registers in a digital system. It is a crucial step in the design process of digital circuits, bridging the gap between high-level design specifications and low-level hardware implementation. RTL design involves creating a model of the system that specifies how data moves from one register to another, including the operations performed on the data during these transfers.

RTL design is typically represented using Hardware Description Languages (HDLs) such as VHDL or Verilog. These languages allow designers to describe the behavior of digital circuits in a textual format, which can then be synthesized into actual hardware. The RTL description focuses on the following key aspects:

Registers: Storage elements that hold data.
Operations: The computations or transformations performed on the data.
Control Signals: Signals that dictate the flow of data and the timing of operations.

The Importance of Register Transfer Logic in Digital Design

Register Transfer Logic (RTL) plays a pivotal role in the design of digital systems for several reasons:

Abstraction Level: RTL provides a higher level of abstraction compared to gate-level design, making it easier to understand and manage complex systems.
Design Verification: RTL descriptions can be simulated to verify the correctness of the design before it is implemented in hardware, reducing the risk of errors.
Reusability: RTL modules can be reused across different projects, saving time and effort in the design process.
Optimization: RTL design allows for optimization at a higher level, enabling designers to focus on performance, power consumption, and area efficiency.

Key Components of Register Transfer Logic

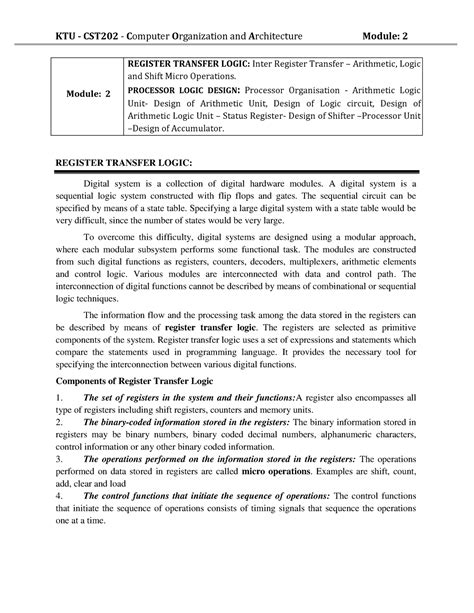

To understand Register Transfer Logic (RTL) better, it is essential to familiarize oneself with its key components. These components work together to define the behavior of a digital system:

Registers: These are storage elements that hold data temporarily. Registers are crucial for storing intermediate results and controlling the flow of data in a digital system.

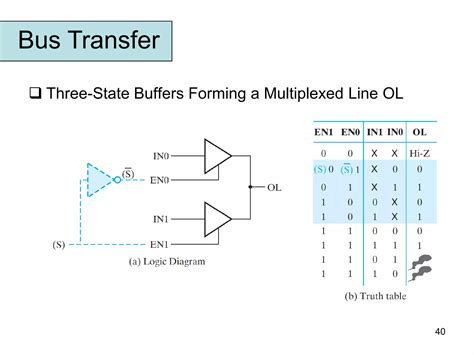

Combinational Logic: This refers to the logic circuits that perform operations on the data. Combinational logic does not have memory and produces outputs based solely on the current inputs.
Control Signals: These signals dictate the timing and sequence of operations in the system. Control signals are essential for synchronizing the transfer of data between registers and ensuring that operations are performed in the correct order.

Designing with Register Transfer Logic

Designing a digital system using Register Transfer Logic (RTL) involves several steps. Here is a high-level overview of the process:

Specification: Define the requirements and specifications of the digital system. This includes identifying the inputs, outputs, and the operations that need to be performed.

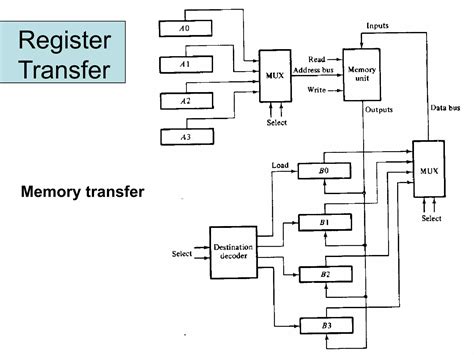

Architecture Design: Create a high-level architecture of the system, including the registers, combinational logic, and control signals. This step involves deciding on the structure and organization of the system.
RTL Description: Write the RTL description using an HDL such as VHDL or Verilog. This involves specifying the behavior of the system in terms of data transfers and operations.
Simulation: Simulate the RTL description to verify its correctness. This step involves testing the design with various input scenarios to ensure that it behaves as expected.
Synthesis: Convert the RTL description into a gate-level netlist. This step involves optimizing the design for performance, power, and area.
Verification: Verify the synthesized design to ensure that it meets the original specifications. This step may involve additional simulation and testing.
Implementation: Implement the design in hardware, such as an FPGA or ASIC. This step involves mapping the gate-level netlist to the physical resources of the target device.

📝 Note: The design process may involve iterative steps, where the design is refined and optimized based on simulation and verification results.

Example of Register Transfer Logic Design

To illustrate the concept of Register Transfer Logic (RTL), let's consider a simple example of a digital system: a 4-bit counter. A 4-bit counter increments its value by 1 on each clock cycle. The RTL description for this counter can be written in Verilog as follows:

Module	Description
module counter_4bit (	clock, reset, count);
input clock, reset;	output reg [3:0] count;
always @(posedge clock or posedge reset) begin	if (reset) begin
count <= 4'b0;	end else begin
count <= count + 1;	end
endmodule

In this example, the counter module has two inputs: clock and reset, and one output: count. The count register is a 4-bit register that holds the current value of the counter. The always block describes the behavior of the counter. On each positive edge of the clock or reset signal, the counter increments its value by 1, unless the reset signal is asserted, in which case the counter is reset to 0.

Challenges in Register Transfer Logic Design

While Register Transfer Logic (RTL) provides a powerful framework for designing digital systems, it also presents several challenges:

Complexity: As the complexity of digital systems increases, so does the complexity of the RTL design. Managing and verifying large RTL designs can be challenging.
Timing Constraints: Ensuring that the design meets timing constraints is crucial for the correct operation of the system. Timing analysis and optimization are essential steps in the design process.
Power Consumption: Power consumption is a critical concern in modern digital systems. RTL design must consider power optimization techniques to minimize energy consumption.
Verification: Verifying the correctness of the RTL design is a complex task. Simulation and formal verification techniques are used to ensure that the design behaves as expected.

Addressing these challenges requires a combination of design expertise, advanced tools, and rigorous verification processes.

One of the key challenges in Register Transfer Logic (RTL) design is ensuring that the design meets the specified timing constraints. Timing constraints define the required timing relationships between signals in the system. For example, the setup and hold times of registers must be met to ensure correct data transfer. Timing analysis tools are used to verify that the design meets these constraints and to identify any potential timing violations.

Power consumption is another critical concern in modern digital systems. RTL design must consider power optimization techniques to minimize energy consumption. This includes techniques such as clock gating, power gating, and low-power design methodologies. Power analysis tools are used to estimate the power consumption of the design and to identify areas for optimization.

Verification is a crucial step in the RTL design process. It involves testing the design with various input scenarios to ensure that it behaves as expected. Simulation is a common verification technique that involves running the RTL description with test vectors to observe the outputs. Formal verification techniques, such as model checking, are also used to mathematically prove the correctness of the design.

Addressing these challenges requires a combination of design expertise, advanced tools, and rigorous verification processes. Designers must have a deep understanding of digital design principles and be proficient in using HDLs and design tools. Advanced tools, such as synthesis tools, timing analysis tools, and power analysis tools, are essential for optimizing and verifying the design. Rigorous verification processes, including simulation and formal verification, are crucial for ensuring the correctness of the design.

In conclusion, Register Transfer Logic (RTL) is a fundamental concept in digital design that provides a structured and systematic approach to designing digital systems. It enables designers to create complex systems with high levels of abstraction, making it easier to manage and verify the design. However, RTL design also presents several challenges, including complexity, timing constraints, power consumption, and verification. Addressing these challenges requires a combination of design expertise, advanced tools, and rigorous verification processes. By mastering RTL design, designers can create efficient, reliable, and high-performance digital systems that meet the demands of modern applications.
