Reflect Across X Axis

Understanding geometric transformations is fundamental in various fields, including mathematics, computer graphics, and engineering. One of the most basic yet crucial transformations is reflecting an object across an axis. In this post, we will delve into the concept of reflecting across the x-axis, exploring its mathematical foundations, applications, and practical examples.

Table of Contents

Understanding Reflection Across the X-Axis

Reflection across the x-axis is a transformation that flips a geometric figure over the x-axis, resulting in a mirror image. This transformation is essential in understanding symmetry and is widely used in various applications. To grasp this concept, let's start with the basic principles.

Mathematical Foundation

In a Cartesian coordinate system, reflecting a point across the x-axis involves changing the sign of the y-coordinate while keeping the x-coordinate the same. Mathematically, if a point is given by (x, y), its reflection across the x-axis will be (x, -y).

For example, if you have a point (3, 4), reflecting it across the x-axis will give you the point (3, -4). This simple rule applies to all points on a graph, making it straightforward to visualize the transformation.

Graphical Representation

To better understand the reflection across the x-axis, let's consider a simple graph of a function. Suppose we have the function y = x. The graph of this function is a straight line passing through the origin with a slope of 1.

When we reflect this graph across the x-axis, the resulting graph will be the line y = -x. This new line is the mirror image of the original line, flipped over the x-axis.

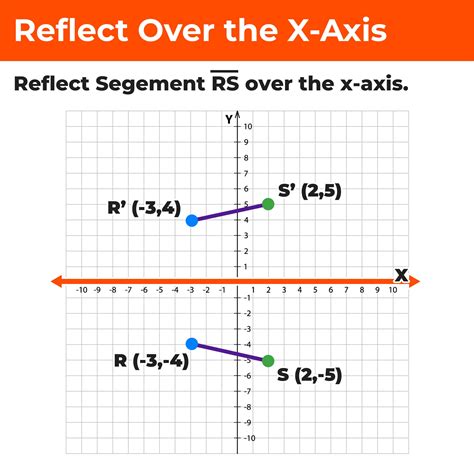

Here is a visual representation of the reflection:

Applications in Real Life

The concept of reflecting across the x-axis has numerous applications in real life. Some of the key areas where this transformation is used include:

Computer Graphics: In computer graphics, reflections are used to create realistic images and animations. Reflecting objects across axes helps in creating symmetrical designs and mirror effects.
Engineering: Engineers use reflections to design symmetrical structures, such as bridges and buildings. Understanding how to reflect objects across axes is crucial for ensuring structural integrity and aesthetic appeal.
Mathematics: In mathematics, reflections are fundamental in understanding symmetry and transformations. They are used in various proofs and theorems related to geometry and algebra.
Art and Design: Artists and designers use reflections to create symmetrical patterns and designs. Reflecting across the x-axis can help in creating balanced and visually appealing artwork.

Practical Examples

To further illustrate the concept of reflecting across the x-axis, let's consider a few practical examples.

Example 1: Reflecting a Point

Consider the point (2, 3). To reflect this point across the x-axis, we change the sign of the y-coordinate:

Original point: (2, 3)
Reflected point: (2, -3)

This transformation flips the point from above the x-axis to below it, maintaining the same x-coordinate.

Example 2: Reflecting a Line

Consider the line y = 2x + 1. To reflect this line across the x-axis, we replace y with -y:

Original equation: y = 2x + 1
Reflected equation: -y = 2x + 1

Solving for y, we get:

Reflected equation: y = -2x - 1

This new equation represents the line that is the mirror image of the original line, reflected across the x-axis.

Example 3: Reflecting a Parabola

Consider the parabola y = x^2. To reflect this parabola across the x-axis, we replace y with -y:

Original equation: y = x^2
Reflected equation: -y = x^2

Solving for y, we get:

Reflected equation: y = -x^2

This new equation represents the parabola that is the mirror image of the original parabola, reflected across the x-axis.

Reflecting Across the X-Axis in Different Coordinate Systems

While we have primarily discussed reflection across the x-axis in the Cartesian coordinate system, it is also important to understand how this transformation applies to other coordinate systems.

Polar Coordinates

In polar coordinates, a point is represented by (r, θ), where r is the radius and θ is the angle. Reflecting a point across the x-axis in polar coordinates involves changing the angle θ to -θ. This transformation flips the point to the opposite side of the x-axis while maintaining the same radius.

For example, if a point is given by (3, π/4), reflecting it across the x-axis will give you the point (3, -π/4).

Complex Numbers

In the complex plane, a point is represented by a complex number z = x + iy, where x and y are the real and imaginary parts, respectively. Reflecting a point across the x-axis in the complex plane involves changing the sign of the imaginary part. This transformation flips the point to the opposite side of the x-axis while maintaining the same real part.

For example, if a point is given by 3 + 4i, reflecting it across the x-axis will give you the point 3 - 4i.

Reflecting Across the X-Axis in Programming

In programming, reflecting an object across the x-axis can be achieved using various programming languages and libraries. Below are examples in Python and JavaScript.

Python Example

In Python, you can use the matplotlib library to reflect a graph across the x-axis. Here is a simple example:


import matplotlib.pyplot as plt
import numpy as np

# Original function
x = np.linspace(-10, 10, 400)
y = x

# Reflected function
y_reflected = -y

# Plotting the original and reflected functions
plt.plot(x, y, label='Original')
plt.plot(x, y_reflected, label='Reflected')
plt.axhline(0, color='black',linewidth=0.5)
plt.axvline(0, color='black',linewidth=0.5)
plt.grid(color = 'gray', linestyle = '--', linewidth = 0.5)
plt.legend()
plt.show()

💡 Note: Make sure to install the matplotlib library using pip install matplotlib before running the code.

JavaScript Example

In JavaScript, you can use the canvas API to reflect a graph across the x-axis. Here is a simple example:

💡 Note: This example assumes a basic understanding of the canvas API in JavaScript. Adjust the function definitions as needed for your specific use case.

Reflecting Across the X-Axis in 3D

Reflecting across the x-axis in three-dimensional space involves flipping an object over the x-axis while keeping the x-coordinate the same and changing the signs of the y and z coordinates. This transformation is crucial in 3D graphics and computer vision.

Mathematical Representation

In a 3D Cartesian coordinate system, reflecting a point (x, y, z) across the x-axis results in the point (x, -y, -z). This transformation flips the point to the opposite side of the x-axis while maintaining the same x-coordinate.

For example, if you have a point (3, 4, 5), reflecting it across the x-axis will give you the point (3, -4, -5).

Applications in 3D Graphics

In 3D graphics, reflecting across the x-axis is used to create symmetrical objects and scenes. This transformation is essential in game development, animation, and virtual reality. By reflecting objects across the x-axis, developers can create realistic and immersive environments.

Here is a table summarizing the reflection transformations in 2D and 3D:

Dimension	Original Point	Reflected Point
2D	(x, y)	(x, -y)
3D	(x, y, z)	(x, -y, -z)

Understanding these transformations is crucial for working with 3D graphics and computer vision.

Reflecting across the x-axis is a fundamental concept in geometry and has wide-ranging applications in various fields. By understanding the mathematical foundations and practical examples of this transformation, you can apply it to solve real-world problems and create innovative solutions. Whether you are a student, engineer, or artist, mastering the concept of reflecting across the x-axis will enhance your skills and broaden your horizons.
