Recessed Lighting Layout

Recessed lighting is a popular choice for modern homes and commercial spaces due to its sleek design and ability to provide ample illumination without taking up much space. One of the critical aspects of installing recessed lighting is planning the recessed lighting layout. A well-thought-out layout can enhance the aesthetics of a room, improve functionality, and create a comfortable ambiance. This guide will walk you through the essential steps and considerations for designing an effective recessed lighting layout.

Table of Contents

Understanding Recessed Lighting

Recessed lighting, also known as can lighting or downlights, is installed into the ceiling, creating a flush and seamless look. These fixtures are versatile and can be used in various settings, from living rooms and kitchens to offices and retail spaces. The key to a successful recessed lighting layout is understanding the different types of recessed lights and their applications.

Types of Recessed Lights

There are several types of recessed lights, each suited for different purposes:

New Construction Lights: Designed for installation during the construction phase, these lights are typically larger and more robust.
Remodel Lights: Ideal for retrofitting into existing ceilings, these lights are smaller and easier to install.
IC-Rated Lights: These lights are insulated contact-rated, meaning they can be covered with insulation without risk of overheating.
Non-IC-Rated Lights: These lights require a clearance of at least 3 inches from insulation to prevent overheating.
Air-Tight Lights: Designed to prevent air leakage, these lights are essential for energy-efficient buildings.

Planning Your Recessed Lighting Layout

Before you start installing recessed lights, it's crucial to plan your recessed lighting layout carefully. Here are the steps to follow:

Assess the Room

Begin by assessing the room where you plan to install the recessed lights. Consider the following factors:

The size and shape of the room.
The ceiling height.
The existing lighting and electrical setup.
The room's primary functions and activities.

Determine Lighting Needs

Identify the specific lighting needs for the room. Different areas may require different types of lighting:

General Lighting: Provides overall illumination for the entire room.
Task Lighting: Focuses on specific areas where tasks are performed, such as kitchen counters or workspaces.
Accent Lighting: Highlights specific features or objects, such as artwork or architectural details.

Choose the Right Fixtures

Select recessed light fixtures that match your lighting needs and aesthetic preferences. Consider factors such as:

The size and shape of the fixtures.
The type of bulb (LED, halogen, incandescent).
The color temperature of the light.
The beam spread (narrow, medium, wide).

Create a Layout Plan

Draw a detailed layout plan of the room, including the placement of recessed lights. Use graph paper or a digital tool to map out the positions of the fixtures. Here are some tips for creating an effective layout:

Space the lights evenly to ensure uniform illumination.
Place lights in a grid pattern for a balanced look.
Consider the room's dimensions and ceiling height to determine the optimal spacing between lights.
Use a combination of general, task, and accent lighting to create layers of light.

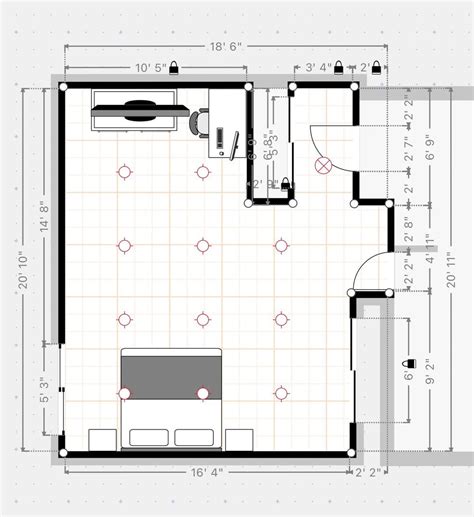

Here is an example of a simple recessed lighting layout plan:

Room Dimension	Ceiling Height	Light Spacing	Number of Lights
10 ft x 12 ft	8 ft	4 ft	6
12 ft x 15 ft	9 ft	4.5 ft	8
15 ft x 20 ft	10 ft	5 ft	12

💡 Note: Adjust the spacing and number of lights based on the specific needs and dimensions of your room. Consult with a professional if you are unsure about the layout.

Consider Energy Efficiency

Opt for energy-efficient recessed lights to reduce electricity costs and environmental impact. LED lights are a popular choice due to their longevity and energy efficiency. Look for fixtures with the ENERGY STAR rating to ensure they meet high standards of efficiency.

Safety and Building Codes

Ensure that your recessed lighting layout complies with local building codes and safety regulations. Key considerations include:

Proper clearance from combustible materials.
Correct wiring and electrical connections.
Use of appropriate fixtures for wet or damp locations.

🛠️ Note: Always consult with a licensed electrician to ensure compliance with safety standards and building codes.

Installing Recessed Lights

Once you have planned your recessed lighting layout, the next step is installation. Here are the general steps for installing recessed lights:

Gather Tools and Materials

Before you begin, gather the necessary tools and materials:

Recessed light fixtures.
Light bulbs.
Electrical wire and connectors.
Screwdriver.
Drill and drill bits.
Tape measure.
Safety glasses.
Ladder or scaffolding.

Turn Off Power

Before starting any electrical work, turn off the power to the circuit you will be working on. Use a non-contact voltage tester to ensure the power is off.

Mark the Locations

Using your layout plan, mark the locations for the recessed lights on the ceiling. Use a pencil and a tape measure to ensure accurate placement.

Cut Holes for Fixtures

Cut holes in the ceiling drywall or plaster at the marked locations. Use a drywall saw or a reciprocating saw to create the openings. Ensure the holes are the correct size for your fixtures.

Install the Fixtures

Follow the manufacturer's instructions to install the recessed light fixtures. Typically, this involves:

Connecting the electrical wires.
Securing the fixture to the ceiling joists.
Attaching the trim ring to the fixture.

Test the Lights

After installing all the fixtures, turn the power back on and test each light to ensure they are working correctly. Adjust any wiring or connections as needed.

⚠️ Note: If you are not comfortable with electrical work, hire a licensed electrician to install the recessed lights.

Maintaining Recessed Lights

Regular maintenance is essential to keep your recessed lights in good working condition. Here are some tips for maintaining recessed lights:

Clean the fixtures regularly to remove dust and debris.
Replace bulbs as needed, following the manufacturer's recommendations.
Inspect the wiring and connections periodically to ensure they are secure and free of damage.
Check for any signs of overheating or malfunctioning fixtures.

💡 Note: Always turn off the power before performing any maintenance on recessed lights.

Recessed lighting can transform the look and feel of any space, providing both functional and aesthetic benefits. By carefully planning your recessed lighting layout, choosing the right fixtures, and following proper installation and maintenance practices, you can create a well-lit and inviting environment. Whether you are renovating a home or designing a commercial space, recessed lighting offers a versatile and elegant solution for all your lighting needs.
