Understanding the intricacies of engine maintenance is crucial for any vehicle owner. One of the most critical components to monitor is the spark plug. Reading Spark Plugs can provide valuable insights into the health of your engine and help you identify potential issues before they become major problems. This guide will walk you through the process of reading spark plugs, interpreting their condition, and taking appropriate actions to ensure your engine runs smoothly.
Understanding Spark Plugs
Spark plugs are essential components in internal combustion engines. They ignite the air-fuel mixture in the engine’s cylinders, initiating the combustion process that powers your vehicle. Over time, spark plugs can wear out or become fouled, affecting engine performance. Regularly inspecting and reading spark plugs can help you maintain optimal engine health.
Why Reading Spark Plugs is Important
Reading Spark Plugs is a diagnostic tool that can reveal a lot about your engine’s condition. By examining the spark plugs, you can detect issues such as:
- Incorrect fuel mixture
- Engine misfires
- Oil leaks
- Worn-out engine components
- Ignition system problems
Regularly inspecting your spark plugs can help you catch these issues early, preventing more significant and costly repairs down the line.
How to Read Spark Plugs
To effectively read spark plugs, follow these steps:
- Allow the engine to cool down before removing the spark plugs. This ensures safety and prevents burns.
- Locate the spark plugs. They are typically found at the top of the engine, connected to the spark plug wires or coils.
- Use a spark plug socket to remove the spark plugs. Ensure you have the correct size socket to avoid damaging the plugs.

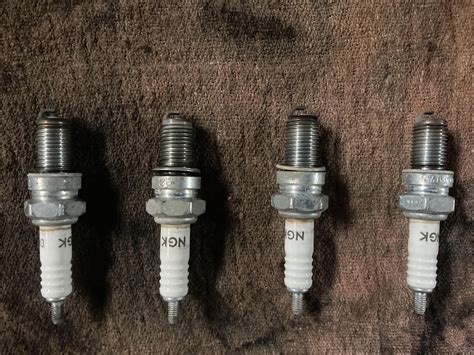

- Inspect the spark plugs for signs of wear or fouling. Look for the following indicators:
Normal Wear: A light tan or grayish color on the electrode indicates normal wear. This is a sign that the spark plug is functioning correctly.
Oil Fouling: A black, oily coating on the spark plug indicates oil is leaking into the combustion chamber. This can be caused by worn valve guides, piston rings, or a faulty PCV valve.
Carbon Fouling: A dry, black soot on the spark plug indicates a rich fuel mixture or weak ignition. This can be caused by a clogged air filter, faulty fuel injectors, or a malfunctioning oxygen sensor.
Overheating: A blistered or melted electrode indicates the spark plug is overheating. This can be caused by a lean fuel mixture, incorrect spark plug heat range, or engine overheating.
Detonation: Small, rounded pits on the electrode indicate detonation or pre-ignition. This can be caused by incorrect ignition timing, low-octane fuel, or engine overheating.
Worn Electrode: A rounded or eroded electrode indicates the spark plug is worn out and needs replacement.
Interpreting Spark Plug Conditions
Once you have removed and inspected the spark plugs, it’s time to interpret their condition. Here is a guide to help you understand what each condition means:
| Condition | Description | Possible Causes |
|---|---|---|
| Normal Wear | Light tan or grayish color on the electrode | Normal operation |
| Oil Fouling | Black, oily coating | Worn valve guides, piston rings, or faulty PCV valve |
| Carbon Fouling | Dry, black soot | Rich fuel mixture, weak ignition, clogged air filter, faulty fuel injectors, or malfunctioning oxygen sensor |
| Overheating | Blistered or melted electrode | Lean fuel mixture, incorrect spark plug heat range, or engine overheating |
| Detonation | Small, rounded pits on the electrode | Incorrect ignition timing, low-octane fuel, or engine overheating |
| Worn Electrode | Rounded or eroded electrode | Normal wear and tear, needs replacement |
By understanding these conditions, you can take appropriate actions to address any issues detected during the reading spark plugs process.
🔧 Note: Always refer to your vehicle's owner manual for specific instructions on removing and inspecting spark plugs, as procedures can vary between different makes and models.
Taking Action Based on Spark Plug Conditions
After interpreting the condition of your spark plugs, the next step is to take appropriate actions to address any issues. Here are some common actions based on the conditions you might encounter:
- Normal Wear: If the spark plugs show normal wear, continue with regular maintenance and replace them according to the manufacturer’s recommendations.
- Oil Fouling: If you detect oil fouling, check for oil leaks and address any worn engine components. This may involve replacing valve guides, piston rings, or the PCV valve.
- Carbon Fouling: If carbon fouling is present, check the air filter and fuel injectors. Replace the air filter if it is clogged and clean or replace the fuel injectors if necessary. Also, ensure the oxygen sensor is functioning correctly.
- Overheating: If the spark plugs show signs of overheating, check the fuel mixture and ensure the correct spark plug heat range is being used. Address any engine overheating issues promptly.
- Detonation: If detonation is detected, check the ignition timing and ensure you are using the correct octane fuel. Address any engine overheating issues to prevent further damage.
- Worn Electrode: If the electrode is worn out, replace the spark plugs with new ones. Follow the manufacturer’s recommendations for the correct type and heat range of spark plugs.
Maintaining Spark Plug Health
Regular maintenance is key to keeping your spark plugs in good condition. Here are some tips to ensure your spark plugs last longer and perform optimally:
- Follow the Maintenance Schedule: Replace your spark plugs according to the manufacturer’s recommended intervals. This ensures they are replaced before they wear out completely.
- Use High-Quality Spark Plugs: Invest in high-quality spark plugs that are designed for your specific engine. Cheaper alternatives may not last as long or perform as well.
- Check for Proper Gapping: Ensure the spark plugs are gapped correctly before installation. Incorrect gapping can affect engine performance and fuel efficiency.
- Inspect Regularly: Regularly inspect your spark plugs as part of your routine maintenance. This can help you catch issues early and prevent more significant problems.
- Address Issues Promptly: If you detect any issues during the reading spark plugs process, address them promptly to prevent further damage to your engine.
By following these tips, you can maintain the health of your spark plugs and ensure your engine runs smoothly.
🔧 Note: Always use the correct tools and follow safety procedures when working on your vehicle. Improper handling can lead to injuries or further damage to your engine.
Regularly reading spark plugs is a crucial part of engine maintenance. By understanding the condition of your spark plugs, you can identify potential issues early and take appropriate actions to keep your engine running smoothly. Whether you are a DIY enthusiast or a professional mechanic, mastering the art of reading spark plugs can save you time, money, and headaches in the long run.
In conclusion, reading spark plugs is an essential skill for any vehicle owner. By inspecting and interpreting the condition of your spark plugs, you can detect issues such as incorrect fuel mixture, engine misfires, oil leaks, and worn-out engine components. Regular maintenance and prompt action based on the condition of your spark plugs can help you maintain optimal engine health and prevent costly repairs. Whether you are a seasoned mechanic or a novice, understanding the intricacies of reading spark plugs can make a significant difference in the performance and longevity of your engine.
