Precision measurement is a critical aspect of various industries, from manufacturing to engineering. One of the essential tools used for precise measurements is the Vernier caliper. However, reading a Vernier gauge accurately requires a good understanding of its components and how to interpret the measurements. This guide will walk you through the process of reading a Vernier gauge, ensuring you can take accurate measurements every time.
Understanding the Vernier Caliper

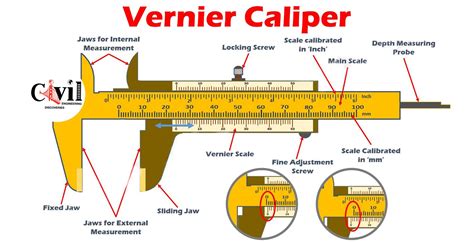

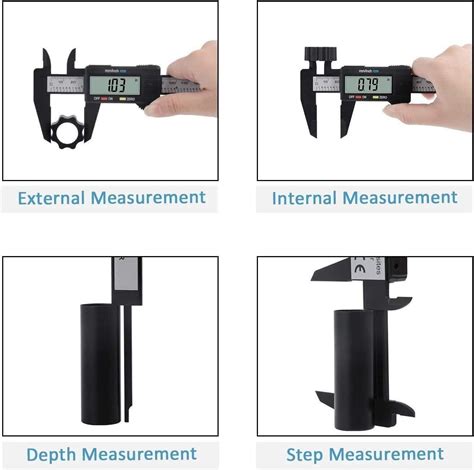

A Vernier caliper is a versatile measuring tool that combines the functions of a ruler, a depth gauge, and an inside and outside caliper. It consists of several key components:
- Main Scale: This is the fixed ruler with graduations, usually in millimeters or inches.
- Vernier Scale: This is the sliding scale that moves along the main scale and has finer graduations.
- Jaws: These are the parts that measure the outside and inside dimensions of an object.
- Depth Probe: This is used to measure the depth of holes or recesses.
- Lock Screw: This secures the Vernier scale in place once the measurement is taken.
Reading the Main Scale
The main scale is the primary ruler on the Vernier caliper. It is divided into larger units, typically millimeters or inches. To read the main scale:
- Identify the largest whole number on the main scale that is visible before the zero mark on the Vernier scale.
- Note this number as the whole number part of your measurement.
For example, if the zero mark on the Vernier scale is just past the 30 mm mark on the main scale, your whole number is 30.
Reading the Vernier Scale
The Vernier scale provides the fractional part of the measurement. It is divided into smaller units than the main scale, allowing for more precise readings. To read the Vernier scale:
- Identify the first line on the Vernier scale that aligns perfectly with a line on the main scale.
- Note the number on the Vernier scale where this alignment occurs.
For example, if the fifth line on the Vernier scale aligns with a line on the main scale, and each division on the Vernier scale represents 0.1 mm, your fractional part is 0.5 mm.
Combining the Readings
To get the total measurement, combine the readings from the main scale and the Vernier scale. The formula is:
Main Scale Reading + Vernier Scale Reading = Total Measurement
For example, if the main scale reading is 30 mm and the Vernier scale reading is 0.5 mm, the total measurement is 30.5 mm.
Practical Steps for Reading a Vernier Gauge
Here are the step-by-step instructions for reading a Vernier gauge:
- Place the object to be measured between the jaws of the Vernier caliper.
- Gently tighten the jaws until they are firmly against the object.
- Lock the Vernier scale in place using the lock screw.
- Read the main scale to get the whole number part of the measurement.
- Read the Vernier scale to get the fractional part of the measurement.
- Combine the readings to get the total measurement.
🔍 Note: Ensure the jaws are clean and free of debris for accurate measurements.
Common Mistakes to Avoid
When reading a Vernier gauge, it’s essential to avoid common mistakes that can lead to inaccurate measurements:
- Parallax Error: Ensure you are viewing the scales perpendicularly to avoid parallax error, which can lead to incorrect readings.
- Improper Alignment: Make sure the jaws are properly aligned and the object is securely placed between them.
- Incorrect Locking: Always lock the Vernier scale in place before taking the reading to prevent movement.
Calculating Measurements
To calculate the measurement accurately, follow these steps:
- Identify the main scale reading.
- Identify the Vernier scale reading.
- Add the two readings together to get the total measurement.
For example, if the main scale reading is 25 mm and the Vernier scale reading is 0.7 mm, the total measurement is 25.7 mm.
Practice Examples
Let’s go through a few practice examples to solidify your understanding of reading a Vernier gauge.
Example 1:
| Main Scale Reading | Vernier Scale Reading | Total Measurement |
|---|---|---|
| 15 mm | 0.3 mm | 15.3 mm |
Example 2:
| Main Scale Reading | Vernier Scale Reading | Total Measurement |
|---|---|---|
| 40 mm | 0.8 mm | 40.8 mm |
Example 3:
| Main Scale Reading | Vernier Scale Reading | Total Measurement |
|---|---|---|
| 20 mm | 0.5 mm | 20.5 mm |
Advanced Techniques for Reading a Vernier Gauge
For more advanced measurements, you might need to consider additional techniques:
- Zero Error Adjustment: Some Vernier calipers may have a zero error, where the zero mark on the Vernier scale does not align with the zero mark on the main scale. To adjust for this, subtract the zero error from your total measurement.
- Depth Measurements: Use the depth probe to measure the depth of holes or recesses. Ensure the probe is perpendicular to the surface for accurate readings.
- Inside Measurements: For inside measurements, use the inside jaws of the Vernier caliper. Ensure the jaws are fully open before taking the measurement.
Maintaining Your Vernier Caliper
To ensure the longevity and accuracy of your Vernier caliper, follow these maintenance tips:
- Clean the jaws and scales regularly to remove any debris or dirt.
- Store the caliper in a dry, cool place to prevent rusting.
- Avoid dropping or mishandling the caliper to prevent damage.
- Periodically check the zero error and adjust if necessary.
🛠️ Note: Regular calibration is essential to maintain the accuracy of your Vernier caliper.
Reading a Vernier gauge accurately is a skill that improves with practice. By understanding the components of the Vernier caliper and following the steps outlined in this guide, you can ensure precise measurements every time. Whether you are a professional in the field or a hobbyist, mastering the art of reading a Vernier gauge will enhance your measurement capabilities and contribute to the success of your projects.
