Understanding the intricacies of chemical reactions is a fundamental aspect of chemistry, and one of the most powerful tools for visualizing these processes is the Reaction Coordinate Diagram. This diagram provides a graphical representation of the energy changes that occur during a chemical reaction, offering insights into the stability of reactants, products, and transition states. By examining the energy profile along the reaction coordinate, chemists can gain valuable information about the kinetics and thermodynamics of a reaction.
What is a Reaction Coordinate Diagram?

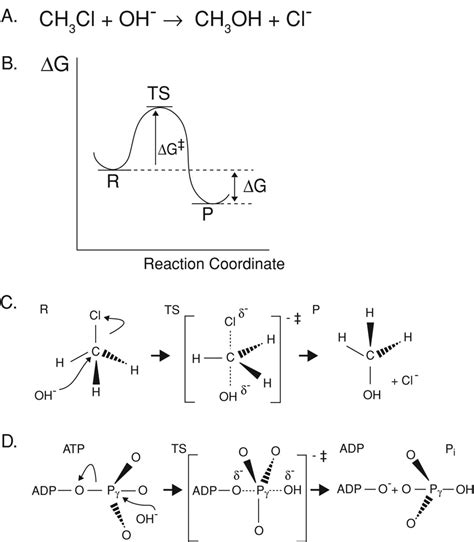

A Reaction Coordinate Diagram is a plot that shows the energy of a system as a function of the reaction coordinate, which is a measure of the progress of the reaction. The diagram typically includes several key features:
- Reactants: The starting materials of the reaction, represented at the beginning of the diagram.
- Products: The final substances formed after the reaction, represented at the end of the diagram.
- Transition State: The highest energy point along the reaction coordinate, representing the most unstable state during the reaction.
- Activation Energy: The energy barrier that must be overcome for the reaction to proceed from reactants to products.
- Reaction Coordinate: The horizontal axis representing the progress of the reaction.
- Energy: The vertical axis representing the energy of the system.
By analyzing these components, chemists can determine the feasibility and rate of a reaction, as well as the stability of the intermediates involved.
Components of a Reaction Coordinate Diagram
The Reaction Coordinate Diagram is composed of several critical components that provide a comprehensive view of the energy changes during a reaction. Let's delve into each component in detail:
Reactants
The reactants are the starting materials of the reaction. On the diagram, they are represented at the leftmost point, indicating the initial state of the system. The energy level of the reactants is crucial as it sets the baseline for the energy changes that will occur during the reaction.
Products
The products are the final substances formed after the reaction. They are represented at the rightmost point on the diagram. The energy level of the products relative to the reactants determines whether the reaction is exothermic (releases energy) or endothermic (absorbs energy).
Transition State
The transition state is the highest energy point along the reaction coordinate. It represents the most unstable state during the reaction, where the reactants are in the process of converting into products. The energy required to reach this state from the reactants is known as the activation energy.
Activation Energy
Activation energy is the energy barrier that must be overcome for the reaction to proceed. It is the difference in energy between the reactants and the transition state. A higher activation energy indicates that the reaction will proceed more slowly, as more energy is required to reach the transition state.
Reaction Coordinate
The reaction coordinate is the horizontal axis of the diagram, representing the progress of the reaction from reactants to products. It is a measure of the changes in the molecular geometry and bond lengths as the reaction proceeds.
Energy
The energy axis is the vertical axis of the diagram, representing the energy of the system at different points along the reaction coordinate. It provides a visual representation of the energy changes that occur during the reaction.
Interpreting a Reaction Coordinate Diagram
Interpreting a Reaction Coordinate Diagram involves understanding the energy profile of the reaction and how it relates to the kinetics and thermodynamics of the process. Here are some key points to consider:

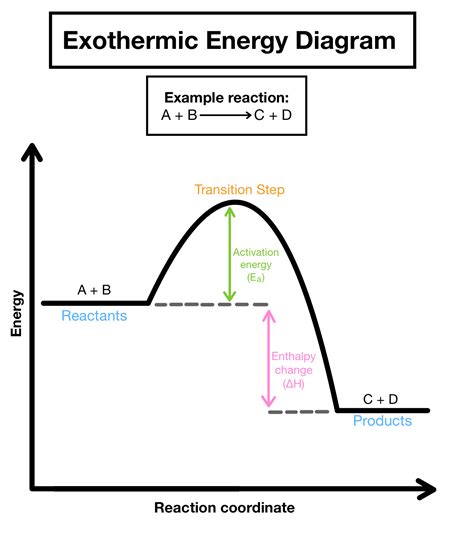

- Exothermic Reactions: In an exothermic reaction, the products have a lower energy than the reactants. The energy released during the reaction is often represented as a downward slope from the transition state to the products.
- Endothermic Reactions: In an endothermic reaction, the products have a higher energy than the reactants. The energy absorbed during the reaction is represented as an upward slope from the transition state to the products.
- Activation Energy: The height of the energy barrier (activation energy) indicates the ease or difficulty of the reaction. A higher barrier means the reaction is slower, while a lower barrier means the reaction is faster.
- Transition State Stability: The stability of the transition state can provide insights into the reaction mechanism. A more stable transition state may indicate a more favorable reaction pathway.
By carefully analyzing these aspects, chemists can predict the behavior of a reaction under different conditions and design experiments to optimize reaction outcomes.
Applications of Reaction Coordinate Diagrams
The Reaction Coordinate Diagram is a versatile tool with numerous applications in chemistry. Some of the key areas where it is commonly used include:
Chemical Kinetics
In chemical kinetics, the diagram helps in understanding the rate of a reaction. By examining the activation energy and the stability of the transition state, chemists can predict how changes in temperature, pressure, and catalyst presence will affect the reaction rate.
Thermodynamics
In thermodynamics, the diagram provides insights into the energy changes during a reaction. It helps in determining whether a reaction is exothermic or endothermic and the overall energy balance of the system.

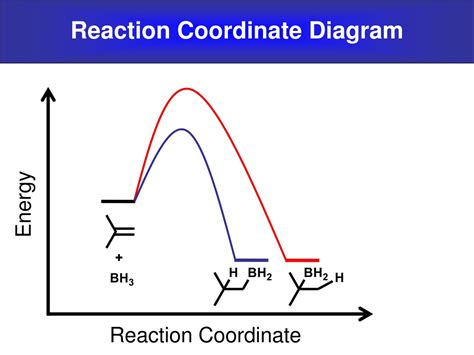

Catalysis
In catalysis, the diagram is used to study the effect of catalysts on reaction rates. Catalysts lower the activation energy, making it easier for the reaction to proceed. By comparing the diagrams with and without a catalyst, chemists can understand the mechanism of catalysis and design more effective catalysts.

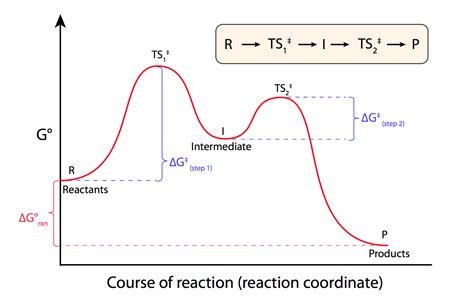

Mechanism Studies
In mechanism studies, the diagram helps in elucidating the steps involved in a complex reaction. By analyzing the energy profile at each step, chemists can propose plausible reaction mechanisms and identify key intermediates.
Constructing a Reaction Coordinate Diagram
Constructing a Reaction Coordinate Diagram involves several steps, including gathering experimental data and plotting the energy profile. Here is a step-by-step guide to creating a reaction coordinate diagram:
Step 1: Gather Experimental Data
Collect data on the energy changes during the reaction. This can be done through various experimental techniques such as calorimetry, spectroscopy, and computational chemistry.
Step 2: Identify Key Points
Identify the key points on the diagram, including the reactants, products, transition state, and activation energy. These points will serve as the basis for plotting the energy profile.
Step 3: Plot the Energy Profile
Plot the energy profile on a graph with the reaction coordinate on the x-axis and energy on the y-axis. Connect the key points with a smooth curve to represent the energy changes during the reaction.
Step 4: Analyze the Diagram
Analyze the diagram to gain insights into the kinetics and thermodynamics of the reaction. Look for patterns and trends that can help in understanding the reaction mechanism and optimizing reaction conditions.
📝 Note: It is important to ensure that the data used for constructing the diagram is accurate and reliable. Any errors in the data can lead to incorrect interpretations of the reaction profile.
Example of a Reaction Coordinate Diagram
To illustrate the concept, let's consider an example of a simple chemical reaction: the decomposition of hydrogen peroxide (H2O2) to water (H2O) and oxygen (O2). The reaction can be represented as:
2 H2O2 → 2 H2O + O2
The Reaction Coordinate Diagram for this reaction would show the energy changes as the hydrogen peroxide molecules decompose into water and oxygen. The diagram would include the following key points:
| Point | Description | Energy Level |
|---|---|---|
| Reactants | H2O2 | Ereactants |
| Transition State | Intermediate state during decomposition | Etransition |
| Products | H2O and O2 | Eproducts |
The diagram would show that the reaction is exothermic, as the products have a lower energy than the reactants. The activation energy would be the difference between the energy of the reactants and the transition state.
This example demonstrates how a Reaction Coordinate Diagram can provide a clear visual representation of the energy changes during a chemical reaction, helping chemists to understand the reaction mechanism and optimize reaction conditions.
In conclusion, the Reaction Coordinate Diagram is an invaluable tool in chemistry, offering deep insights into the energy profiles of chemical reactions. By analyzing the energy changes along the reaction coordinate, chemists can gain a comprehensive understanding of the kinetics and thermodynamics of a reaction. This knowledge is crucial for designing experiments, optimizing reaction conditions, and developing new chemical processes. Whether studying simple reactions or complex mechanisms, the Reaction Coordinate Diagram remains a fundamental tool for chemists, providing a clear and concise representation of the energy landscape of chemical reactions.
