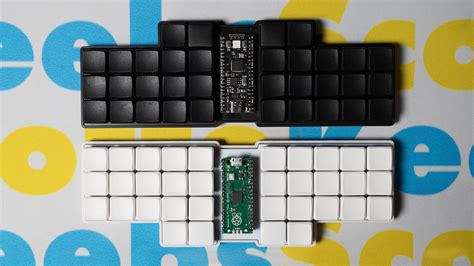

Raspberry Pi Keyboard

Embarking on a journey to build a custom Raspberry Pi keyboard can be an exciting and rewarding project for both beginners and experienced makers alike. The Raspberry Pi, a versatile and powerful single-board computer, offers endless possibilities for DIY projects. One of the most intriguing projects is creating a custom keyboard using a Raspberry Pi. This guide will walk you through the process of building a Raspberry Pi keyboard, from selecting the right components to programming the keyboard functions.

Table of Contents

Understanding the Raspberry Pi Keyboard Project

A Raspberry Pi keyboard is essentially a custom input device that allows you to interact with your Raspberry Pi or other computers. This project involves hardware assembly, wiring, and software programming. The key components you will need include:

A Raspberry Pi (any model with GPIO pins)
Keyboard matrix or individual switches
Microcontroller (optional, for more complex setups)
Wires and a breadboard
Power supply
Programming tools and libraries

Selecting the Right Components

Choosing the right components is crucial for the success of your Raspberry Pi keyboard project. Here are some key considerations:

Raspberry Pi Model: Any Raspberry Pi model with GPIO pins will work, but the Raspberry Pi 4 is recommended for its processing power and connectivity options.
Keyboard Matrix: A keyboard matrix is a grid of switches that allows you to detect key presses. You can use pre-made matrices or build your own using individual switches.
Microcontroller: For more complex setups, a microcontroller like the Arduino can be used to handle the keyboard matrix and communicate with the Raspberry Pi.
Wires and Breadboard: These are essential for prototyping and connecting your components.
Power Supply: Ensure you have a reliable power supply to power your Raspberry Pi and any additional components.

Setting Up the Hardware

Once you have your components, the next step is to set up the hardware. This involves connecting the keyboard matrix to the Raspberry Pi’s GPIO pins. Here’s a step-by-step guide:

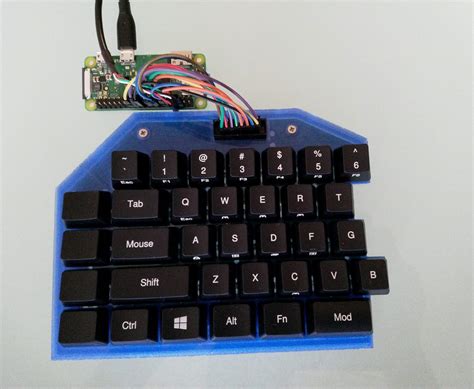

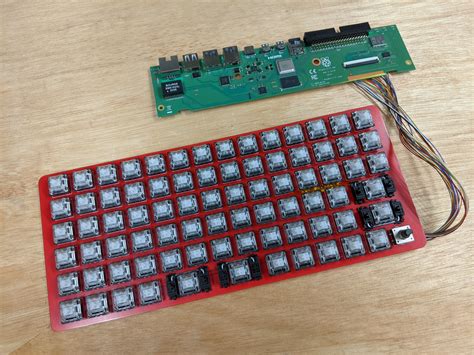

Connect the Keyboard Matrix: If you are using a pre-made keyboard matrix, connect the rows and columns to the GPIO pins on the Raspberry Pi. Ensure that each row and column is properly wired.
Power Supply: Connect the power supply to the Raspberry Pi and any additional components. Make sure the power supply is stable and sufficient to power all components.
Breadboard and Wires: Use a breadboard to prototype your connections. This allows you to easily make changes and test your setup.

Programming the Raspberry Pi Keyboard

After setting up the hardware, the next step is to program the Raspberry Pi to recognize key presses and send the corresponding inputs. This involves writing a script in Python, which is a popular language for Raspberry Pi projects. Here’s a basic example of how to program your Raspberry Pi keyboard:

First, install the necessary libraries:

sudo apt-get update
sudo apt-get install python3-rpi.gpio

Next, create a Python script to read key presses from the keyboard matrix:

import RPi.GPIO as GPIO
import time



rows = [17, 27, 22]
columns = [5, 6, 13, 19]



GPIO.setmode(GPIO.BCM)
for row in rows:
    GPIO.setup(row, GPIO.OUT)
    GPIO.output(row, GPIO.HIGH)
for column in columns:
    GPIO.setup(column, GPIO.IN, pull_up_down=GPIO.PUD_UP)



def read_keyboard():
    for row in rows:
        GPIO.output(row, GPIO.LOW)
        for column in columns:
            if GPIO.input(column) == GPIO.LOW:
                print(f”Key pressed at row {rows.index(row)} column {columns.index(column)}“)
                time.sleep(0.2)  # Debounce delay
        GPIO.output(row, GPIO.HIGH)



try:
    while True:
        read_keyboard()
except KeyboardInterrupt:
    GPIO.cleanup()

💡 Note: This script is a basic example and may need to be modified to fit your specific keyboard matrix and GPIO pin configuration.

Advanced Features and Customization

Once you have a basic Raspberry Pi keyboard up and running, you can explore advanced features and customizations. Here are some ideas:

Custom Key Layouts: Design your own key layouts and map them to specific functions or macros.
Backlighting: Add LED backlighting to your keyboard for a more professional look and better visibility.
Wireless Connectivity: Use a wireless module to connect your keyboard to the Raspberry Pi without wires.
Macros and Shortcuts: Program macros and shortcuts to automate repetitive tasks.

Troubleshooting Common Issues

Building a Raspberry Pi keyboard can be challenging, and you may encounter some issues along the way. Here are some common problems and solutions:

Key Presses Not Registered: Ensure that your wiring is correct and that the GPIO pins are properly configured. Check for any loose connections.
Debouncing Issues: Add a debounce delay in your script to prevent multiple key presses from being registered.
Power Supply Problems: Ensure that your power supply is stable and sufficient to power all components. Use a multimeter to check the voltage.

If you encounter any other issues, refer to the Raspberry Pi documentation and community forums for additional support.

Final Thoughts

Building a Raspberry Pi keyboard is a rewarding project that combines hardware assembly, wiring, and software programming. By following the steps outlined in this guide, you can create a custom keyboard tailored to your needs. Whether you’re a beginner or an experienced maker, this project offers a great opportunity to learn and experiment with the Raspberry Pi. Happy building!
