Rapid Ekg Interpretation

In the fast-paced world of healthcare, the ability to perform Rapid EKG Interpretation is a critical skill for medical professionals. An electrocardiogram (EKG) provides valuable insights into the heart's electrical activity, helping to diagnose a wide range of cardiac conditions. This blog post will guide you through the essential steps and considerations for rapid EKG interpretation, ensuring that you can quickly and accurately assess a patient's cardiac health.

Table of Contents

Understanding the Basics of EKG

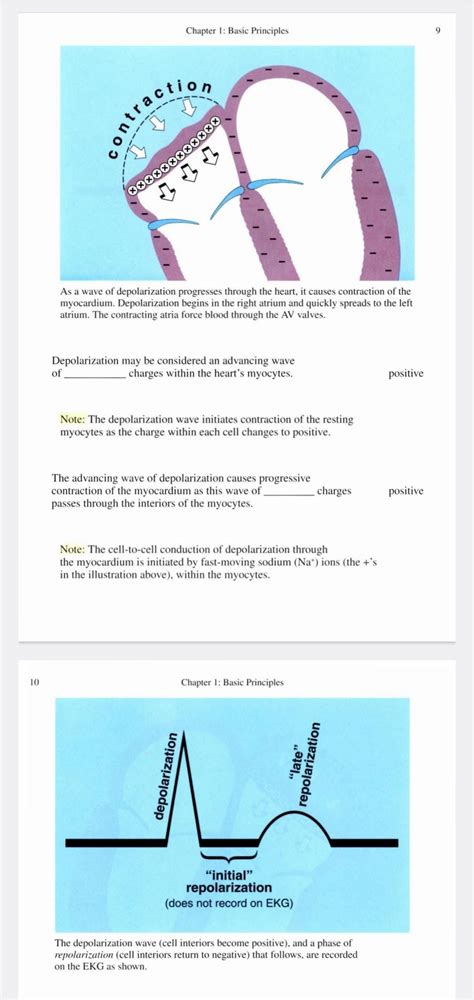

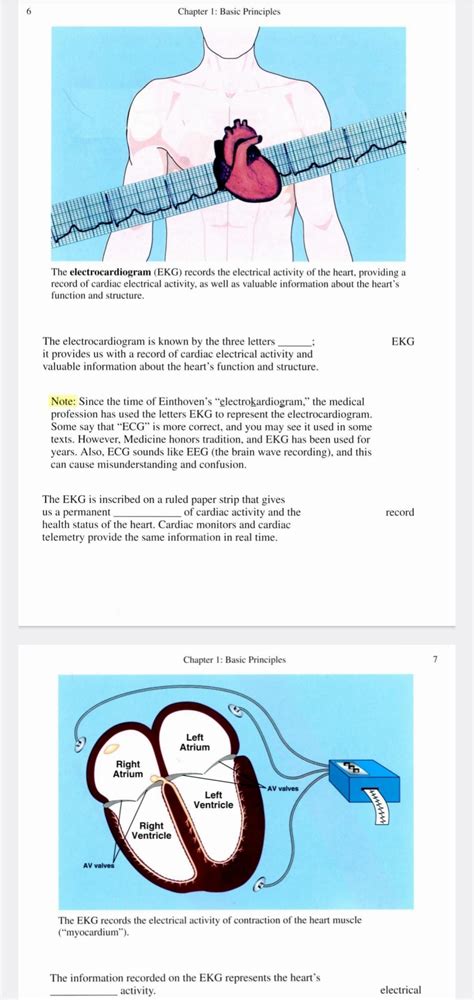

Before diving into Rapid EKG Interpretation, it’s essential to understand the basics of an EKG. An EKG records the electrical signals generated by the heart as it contracts and relaxes. These signals are represented as waves on a graph, with each wave corresponding to a specific phase of the cardiac cycle.

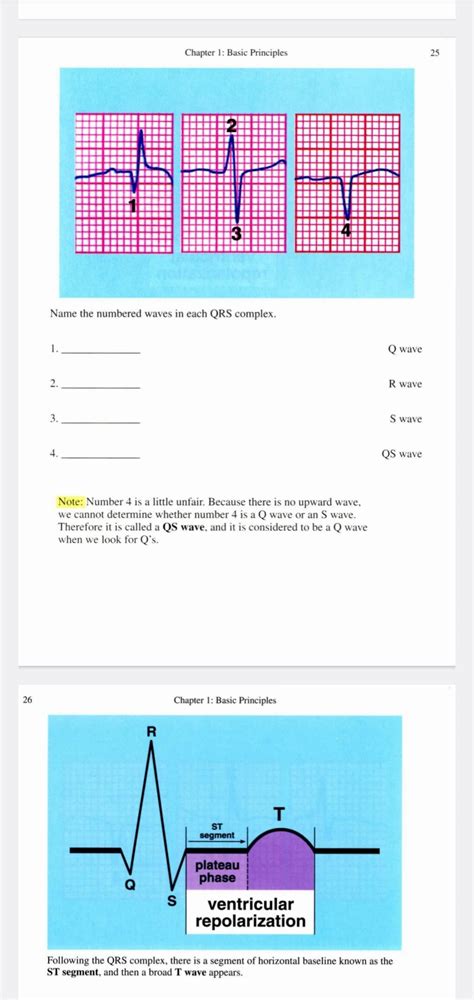

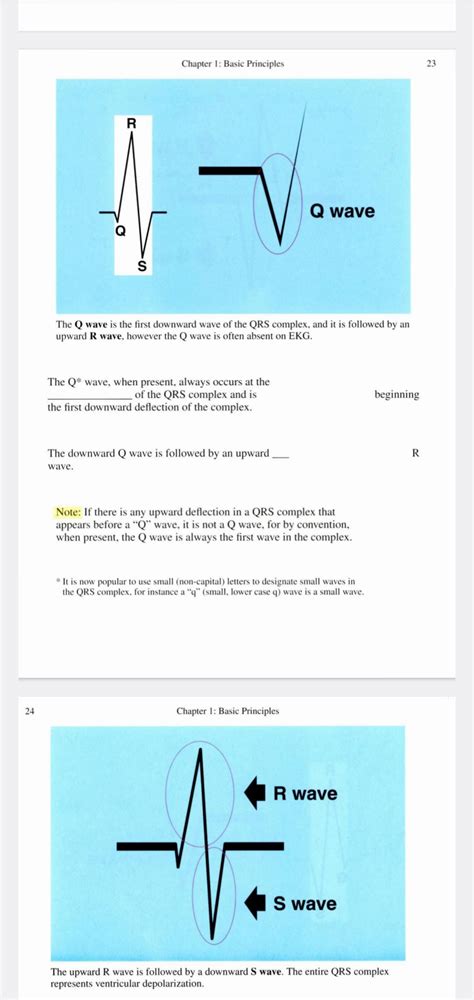

The key components of an EKG waveform include:

P Wave: Represents atrial depolarization.
QRS Complex: Represents ventricular depolarization.
T Wave: Represents ventricular repolarization.

Steps for Rapid EKG Interpretation

Rapid EKG interpretation involves a systematic approach to quickly assess the EKG for any abnormalities. Here are the key steps:

Step 1: Assess the Rhythm

The first step in Rapid EKG Interpretation is to determine the heart’s rhythm. Look for regularity in the R-R intervals and the presence of P waves. Common rhythms to identify include:

Normal Sinus Rhythm (NSR)
Atrial Fibrillation (AFib)
Atrial Flutter
Ventricular Tachycardia (VT)

Step 2: Evaluate the Rate

Next, calculate the heart rate. This can be done by counting the number of QRS complexes in a 6-second strip and multiplying by 10, or by using the “300, 150, 100, 75, 60, 50” method for each large box interval. Normal heart rates vary by age and activity level, but generally, a resting heart rate between 60 and 100 beats per minute (bpm) is considered normal for adults.

Step 3: Check the Axis

The axis refers to the overall direction of the heart’s electrical activity. A normal axis is between -30 and +90 degrees. Deviations from this range can indicate conditions such as left or right bundle branch block.

Step 4: Analyze the Intervals

Measure the intervals between the waves to identify any abnormalities. Key intervals to assess include:

PR Interval: Normally 120-200 ms, represents the time from the start of the P wave to the start of the QRS complex.
QRS Duration: Normally less than 120 ms, represents the time for ventricular depolarization.
QT Interval: Normally less than 440 ms in men and 460 ms in women, represents the time for ventricular depolarization and repolarization.

Step 5: Look for ST-Segment and T-Wave Changes

Assess the ST segment and T wave for any abnormalities, as these can indicate ischemia or other cardiac issues. Key points to look for include:

ST-segment elevation or depression
T-wave inversion
Peaked T waves

Common EKG Abnormalities

During Rapid EKG Interpretation, it’s crucial to recognize common abnormalities that may indicate underlying cardiac conditions. Some of the most frequently encountered abnormalities include:

Atrial Fibrillation

Atrial fibrillation is characterized by an irregularly irregular rhythm with no discernible P waves. The ventricular rate is often rapid and irregular.

Atrial Flutter

Atrial flutter presents with a regular, rapid atrial rate (usually around 300 bpm) and a variable ventricular response. The EKG shows saw-tooth flutter waves.

Ventricular Tachycardia

Ventricular tachycardia is a rapid heart rate originating from the ventricles, typically with a rate greater than 100 bpm. The QRS complexes are wide and bizarre in appearance.

ST-Elevation Myocardial Infarction (STEMI)

STEMI is characterized by ST-segment elevation in two or more contiguous leads, indicating acute myocardial infarction. Prompt recognition and treatment are crucial.

Practical Tips for Rapid EKG Interpretation

To enhance your skills in Rapid EKG Interpretation, consider the following practical tips:

Practice Regularly: Regular practice with a variety of EKG tracings will improve your speed and accuracy.
Use Mnemonic Devices: Mnemonic devices can help you remember the steps and key features of EKG interpretation.
Seek Feedback: Review your interpretations with experienced colleagues or mentors to gain insights and improve your skills.
Stay Updated: Keep up-to-date with the latest guidelines and research in EKG interpretation.

📝 Note: Always correlate EKG findings with the patient's clinical presentation and other diagnostic tests for a comprehensive assessment.

Challenges in Rapid EKG Interpretation

While Rapid EKG Interpretation is a valuable skill, it also presents several challenges. Some of the common difficulties include:

Artifact and Noise: Artifacts and noise can obscure the EKG tracing, making interpretation difficult.
Complex Abnormalities: Some EKG abnormalities are complex and require advanced knowledge and experience to interpret accurately.
Time Constraints: In emergency situations, the need for rapid interpretation can add pressure and increase the risk of errors.

To overcome these challenges, it's essential to maintain a systematic approach, stay calm under pressure, and seek assistance when needed.

Advanced Techniques in EKG Interpretation

For those looking to enhance their Rapid EKG Interpretation skills, advanced techniques can provide deeper insights into cardiac function. Some advanced techniques include:

12-Lead EKG Interpretation

The 12-lead EKG provides a more comprehensive view of the heart’s electrical activity by recording from multiple angles. This allows for more accurate localization of abnormalities and better assessment of cardiac conditions.

Computerized EKG Analysis

Computerized EKG analysis tools can assist in rapid interpretation by providing automated measurements and interpretations. However, it’s crucial to verify the computer’s findings with a manual review.

Serial EKG Monitoring

Serial EKG monitoring involves comparing multiple EKG tracings over time to detect changes and trends. This is particularly useful in monitoring patients with acute coronary syndromes or other dynamic cardiac conditions.

Case Studies in Rapid EKG Interpretation

To illustrate the practical application of Rapid EKG Interpretation, let’s consider a few case studies:

Case Study 1: Acute Myocardial Infarction

A 55-year-old male presents with chest pain and shortness of breath. The EKG shows ST-segment elevation in leads II, III, and aVF, indicative of an inferior wall myocardial infarction. Rapid recognition and treatment with thrombolytics or percutaneous coronary intervention (PCI) are crucial.

Case Study 2: Atrial Fibrillation

A 70-year-old female presents with palpitations and dizziness. The EKG shows an irregularly irregular rhythm with no discernible P waves, consistent with atrial fibrillation. Rate control and anticoagulation are essential components of management.

Case Study 3: Ventricular Tachycardia

A 60-year-old male with a history of coronary artery disease presents with syncope. The EKG shows a wide-complex tachycardia with a rate of 180 bpm, suggestive of ventricular tachycardia. Immediate cardioversion is necessary to restore a normal rhythm.

Conclusion

Rapid EKG Interpretation is a vital skill for medical professionals, enabling quick and accurate assessment of cardiac health. By following a systematic approach, recognizing common abnormalities, and staying updated with advanced techniques, you can enhance your interpretation skills and improve patient outcomes. Regular practice, seeking feedback, and staying calm under pressure are key to mastering this essential skill.
