When it comes to organizing and optimizing your data center or server room, one of the most critical considerations is the rack shelf size. The right rack shelf size can significantly impact the efficiency, accessibility, and overall management of your equipment. This guide will delve into the importance of selecting the appropriate rack shelf size, the various types available, and how to determine the best fit for your specific needs.
Understanding Rack Shelf Sizes
Rack shelves are essential components in any data center or server room. They provide a stable platform for mounting and organizing equipment, ensuring that everything is easily accessible and well-protected. The rack shelf size refers to the dimensions of the shelf, typically measured in terms of width, depth, and height. These dimensions are crucial as they determine what types of equipment can be accommodated and how efficiently the space can be utilized.
Standard Rack Shelf Sizes
Rack shelves come in various standard sizes to accommodate different types of equipment. The most common sizes are:

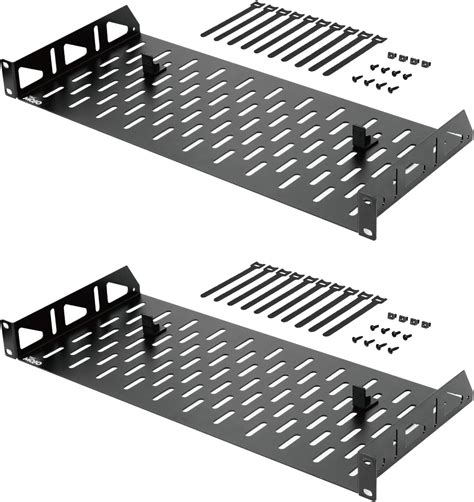

- 19-inch racks: These are the industry standard and are widely used in data centers and server rooms. The width is 19 inches, and the depth can vary but is typically between 12 and 42 inches.
- 23-inch racks: These are less common but are used in some specialized applications. The width is 23 inches, and the depth can also vary.
Within these standard widths, the depth and height of the shelves can be customized to fit specific needs. The depth is particularly important as it determines how far the equipment can extend into the rack, while the height is crucial for accommodating different types of equipment, such as servers, switches, and storage devices.
Factors to Consider When Choosing Rack Shelf Size
Selecting the right rack shelf size involves considering several factors to ensure optimal performance and efficiency. Here are some key considerations:
- Equipment Dimensions: Measure the dimensions of the equipment you plan to mount on the shelves. Ensure that the shelf size can accommodate the width, depth, and height of your equipment.
- Weight Capacity: Consider the weight of the equipment and ensure that the shelves can support it. Overloading shelves can lead to instability and potential damage to equipment.
- Accessibility: Ensure that the shelves are easily accessible for maintenance and upgrades. This may involve considering the placement of the shelves within the rack and the type of equipment that will be mounted on them.
- Cable Management: Proper cable management is crucial for maintaining a clean and efficient data center. Choose shelves that allow for easy cable routing and management.
- Future Expansion: Plan for future expansion by choosing shelves that can accommodate additional equipment. This may involve selecting shelves with adjustable heights or depths.
Types of Rack Shelves
Rack shelves come in various types, each designed to meet specific needs. Here are some of the most common types:
- Fixed Shelves: These are non-adjustable and are ideal for equipment with standard dimensions. They are simple to install and provide a stable platform for mounting equipment.
- Adjustable Shelves: These shelves can be adjusted to accommodate equipment of different heights. They are versatile and can be customized to fit specific needs.
- Cable Management Shelves: These shelves are designed with built-in cable management features, such as cable trays or cable management arms. They help keep cables organized and prevent clutter.
- Fan Trays: These are specialized shelves designed to house fans for cooling equipment. They are essential for maintaining optimal temperatures in data centers and server rooms.
Determining the Best Rack Shelf Size for Your Needs
To determine the best rack shelf size for your needs, follow these steps:
- Measure Your Equipment: Start by measuring the dimensions of the equipment you plan to mount on the shelves. This includes the width, depth, and height of each piece of equipment.
- Assess Your Space: Evaluate the available space in your rack or cabinet. Consider the width, depth, and height of the rack to ensure that the shelves will fit properly.
- Determine Weight Requirements: Calculate the total weight of the equipment that will be mounted on the shelves. Ensure that the shelves can support this weight without compromising stability.
- Consider Future Needs: Plan for future expansion by choosing shelves that can accommodate additional equipment. This may involve selecting adjustable shelves or shelves with extra capacity.
- Choose the Right Type: Based on your specific needs, choose the type of shelf that best fits your requirements. This may involve selecting fixed shelves, adjustable shelves, cable management shelves, or fan trays.
💡 Note: It's essential to consult with a professional if you're unsure about the best rack shelf size for your needs. They can provide expert advice and ensure that your equipment is properly mounted and secured.
Installing Rack Shelves
Once you've selected the appropriate rack shelf size, the next step is to install them. Here are the general steps for installing rack shelves:
- Prepare the Rack: Ensure that the rack is level and stable. Remove any existing shelves or equipment that may interfere with the installation.
- Measure and Mark: Measure the desired height for the shelves and mark the rack accordingly. Use a level to ensure that the marks are straight and even.
- Install the Mounting Brackets: Attach the mounting brackets to the rack at the marked positions. Ensure that the brackets are securely fastened and aligned properly.
- Attach the Shelves: Place the shelves on the mounting brackets and secure them in place. Ensure that the shelves are level and stable.
- Test the Installation: Place a piece of equipment on the shelf to test its stability and ensure that it is securely mounted.
💡 Note: Always follow the manufacturer's instructions for installing rack shelves. Improper installation can lead to instability and potential damage to equipment.
Maintaining Rack Shelves
Maintaining rack shelves is crucial for ensuring the longevity and efficiency of your data center or server room. Here are some tips for maintaining rack shelves:
- Regular Inspections: Conduct regular inspections of the shelves to check for any signs of wear or damage. Address any issues promptly to prevent further damage.
- Cleanliness: Keep the shelves clean and free of dust and debris. This helps maintain optimal performance and prevents overheating.
- Cable Management: Ensure that cables are properly managed and organized. This helps prevent clutter and makes it easier to access equipment for maintenance.
- Weight Distribution: Distribute the weight of the equipment evenly across the shelves to prevent overloading and instability.
By following these maintenance tips, you can ensure that your rack shelves remain in good condition and continue to provide a stable platform for your equipment.
Rack shelves are an essential component of any data center or server room. Choosing the right rack shelf size is crucial for optimizing space, ensuring accessibility, and maintaining efficiency. By considering factors such as equipment dimensions, weight capacity, accessibility, cable management, and future expansion, you can select the best rack shelves for your needs. Proper installation and maintenance are also essential for ensuring the longevity and performance of your rack shelves.
In conclusion, selecting the appropriate rack shelf size involves careful consideration of various factors and a thorough understanding of your specific needs. By following the guidelines outlined in this post, you can ensure that your data center or server room is well-organized, efficient, and ready to handle future expansions. Proper planning and maintenance will not only enhance the performance of your equipment but also contribute to the overall success of your operations.
