Electrocardiograms (ECGs) are essential tools in cardiology, providing critical insights into the heart's electrical activity. Among the various components of an ECG, Q waves ECG are particularly significant. Understanding Q waves ECG is crucial for diagnosing and managing cardiac conditions effectively. This post delves into the intricacies of Q waves ECG, their clinical significance, and how they are interpreted in medical practice.
Understanding Q Waves ECG
Q waves ECG refer to the initial downward deflection in the QRS complex of an ECG. The QRS complex represents the depolarization of the ventricles, and the Q wave is the first part of this complex. Normally, Q waves are small and narrow, but their presence and characteristics can indicate various cardiac conditions.
Anatomy of the QRS Complex
The QRS complex is composed of three waves: the Q wave, the R wave, and the S wave. The Q wave is the first negative deflection, followed by the R wave (the first positive deflection) and the S wave (the second negative deflection). The QRS complex is crucial for assessing ventricular depolarization and identifying abnormalities in the heart's electrical conduction system.
Clinical Significance of Q Waves ECG
Q waves ECG can provide valuable information about the heart's health. Abnormal Q waves, particularly those that are wide, deep, or present in multiple leads, can indicate myocardial infarction (heart attack). These changes occur because the infarcted myocardium does not depolarize normally, leading to altered electrical activity.

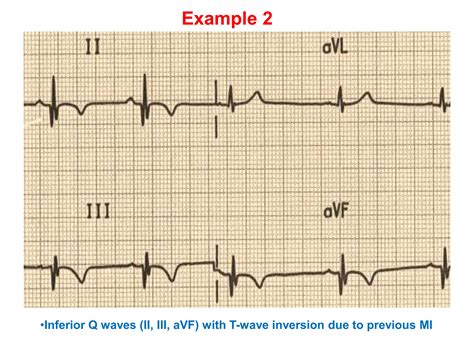

Q waves ECG are also important in differentiating between various types of myocardial infarctions. For example, Q waves in the anterior leads (V1-V4) may suggest an anterior wall infarction, while Q waves in the inferior leads (II, III, aVF) may indicate an inferior wall infarction. Understanding the location and extent of Q waves can help clinicians determine the affected area of the heart and plan appropriate treatment.
Interpreting Q Waves ECG
Interpreting Q waves ECG involves several key steps:
- Identify the Q Wave: Locate the Q wave within the QRS complex. It is the first downward deflection.
- Measure the Q Wave: Assess the duration and amplitude of the Q wave. Normal Q waves are typically less than 0.04 seconds in duration and less than 25% of the height of the subsequent R wave.
- Evaluate the Lead Distribution: Determine which leads show abnormal Q waves. This can help localize the area of the heart that is affected.
- Compare with Previous ECGs: If available, compare the current ECG with previous recordings to identify any new or evolving Q waves.
Q waves ECG interpretation requires a systematic approach to ensure accurate diagnosis. Clinicians must consider the patient's clinical history, symptoms, and other diagnostic tests to correlate the ECG findings with the overall clinical picture.
Pathological Q Waves
Pathological Q waves are those that deviate from normal parameters and indicate underlying cardiac pathology. These waves are often wider, deeper, and more prominent than normal Q waves. Pathological Q waves can be classified based on their characteristics and the leads in which they appear.
Pathological Q waves can be further categorized into:
- Wide Q Waves: Q waves that are greater than 0.04 seconds in duration.
- Deep Q Waves: Q waves that are more than 25% of the height of the subsequent R wave.
- Persistent Q Waves: Q waves that remain present over time, indicating chronic myocardial damage.
Pathological Q waves are often associated with conditions such as:
- Myocardial Infarction: The most common cause of pathological Q waves, where the infarcted myocardium does not depolarize normally.
- Hypertrophic Cardiomyopathy: A condition where the heart muscle thickens, leading to abnormal electrical activity.
- Left Ventricular Hypertrophy: Enlargement of the left ventricle, which can cause changes in the QRS complex.
Differential Diagnosis of Q Waves ECG
Interpreting Q waves ECG involves differentiating between normal variants and pathological findings. Several conditions can mimic pathological Q waves, making accurate diagnosis challenging. Some of these conditions include:
- Left Bundle Branch Block (LBBB): This condition can cause Q waves in the lateral leads (I, aVL, V5, V6), mimicking a lateral wall infarction.
- Right Bundle Branch Block (RBBB): This can cause Q waves in the right precordial leads (V1-V3), simulating an anterior wall infarction.
- Left Ventricular Hypertrophy: This condition can cause Q waves in the lateral leads, similar to those seen in a lateral wall infarction.
To differentiate between these conditions, clinicians must consider the patient's clinical history, symptoms, and other diagnostic tests. For example, echocardiography can provide valuable information about the heart's structure and function, helping to confirm or rule out specific diagnoses.
🔍 Note: Always correlate ECG findings with the patient's clinical presentation and other diagnostic tests to ensure accurate diagnosis.
Management of Pathological Q Waves
Management of pathological Q waves depends on the underlying cause. For myocardial infarction, immediate medical intervention is crucial. This may include:
- Thrombolytic Therapy: Medications that dissolve blood clots, restoring blood flow to the heart.
- Percutaneous Coronary Intervention (PCI): A procedure to open blocked coronary arteries using a balloon catheter or stent.
- Coronary Artery Bypass Grafting (CABG): Surgery to bypass blocked coronary arteries using grafts from other parts of the body.
For conditions such as hypertrophic cardiomyopathy or left ventricular hypertrophy, management may involve:
- Medications: Drugs to control symptoms and improve heart function, such as beta-blockers or calcium channel blockers.
- Lifestyle Modifications: Changes in diet, exercise, and stress management to improve overall cardiovascular health.
- Surgical Interventions: Procedures such as septal myectomy or alcohol septal ablation to reduce the thickness of the heart muscle.
Prevention and Monitoring
Preventing the development of pathological Q waves involves managing risk factors for cardiovascular disease. This includes:
- Healthy Lifestyle: Maintaining a balanced diet, regular exercise, and avoiding tobacco and excessive alcohol.
- Regular Check-ups: Regular medical check-ups to monitor cardiovascular health and detect any abnormalities early.
- Medication Management: Proper management of medications for conditions such as hypertension, diabetes, and high cholesterol.
Monitoring patients with known cardiovascular disease is essential for early detection of changes in Q waves ECG. Regular ECGs, along with other diagnostic tests, can help track the progression of the disease and guide treatment decisions.
Q waves ECG are a critical component of ECG interpretation, providing valuable insights into the heart's electrical activity. Understanding the significance of Q waves ECG and their clinical implications is essential for accurate diagnosis and effective management of cardiac conditions. By recognizing the characteristics of normal and pathological Q waves, clinicians can make informed decisions about patient care and improve outcomes.
Q waves ECG play a pivotal role in the diagnosis and management of various cardiac conditions. From identifying myocardial infarctions to differentiating between normal variants and pathological findings, Q waves ECG provide essential information for clinicians. By understanding the anatomy of the QRS complex, interpreting Q waves ECG accurately, and considering the differential diagnoses, healthcare providers can deliver optimal care to patients with cardiac issues. Regular monitoring and preventive measures are crucial for managing risk factors and detecting abnormalities early, ensuring better outcomes for patients.
