When it comes to plumbing, construction, and DIY projects, understanding the dimensions of PVC pipes is crucial. A PVC Pipe Dimension Chart serves as an essential reference guide, providing detailed measurements that ensure accurate fitting and installation. Whether you're a professional plumber or a homeowner tackling a renovation project, having access to a reliable PVC Pipe Dimension Chart can save time and prevent costly mistakes.
Understanding PVC Pipes
PVC (Polyvinyl Chloride) pipes are widely used in various applications due to their durability, resistance to corrosion, and cost-effectiveness. They are commonly used in plumbing systems, irrigation, and drainage projects. PVC pipes come in different sizes and types, each suited for specific purposes. The most common types include:
- Schedule 40 PVC Pipe: Suitable for general-purpose applications like water supply and drainage.
- Schedule 80 PVC Pipe: Designed for high-pressure applications and is thicker than Schedule 40.
- CPVC Pipe: Chlorinated Polyvinyl Chloride, used for hot and cold water distribution.
The Importance of a PVC Pipe Dimension Chart
A PVC Pipe Dimension Chart is an invaluable tool for anyone working with PVC pipes. It provides detailed information on the outer diameter (OD), inner diameter (ID), and wall thickness of various pipe sizes. This information is essential for:
- Ensuring proper fitting of pipes and fittings.
- Calculating the flow rate and pressure requirements.
- Selecting the appropriate pipe size for a specific application.
Reading a PVC Pipe Dimension Chart
To effectively use a PVC Pipe Dimension Chart, it’s important to understand the key measurements:
- Outer Diameter (OD): The external measurement of the pipe.
- Inner Diameter (ID): The internal measurement of the pipe.
- Wall Thickness: The difference between the outer and inner diameters.

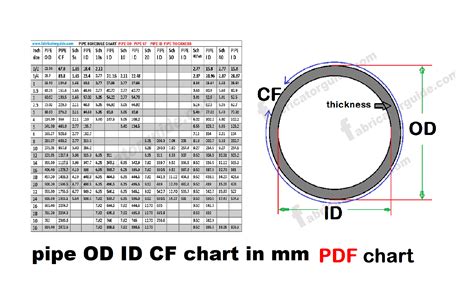

Here is an example of what a PVC Pipe Dimension Chart might look like:
| Nominal Size (inches) | Outer Diameter (OD) (inches) | Inner Diameter (ID) (inches) | Wall Thickness (inches) |
|---|---|---|---|
| 1⁄2 | 0.840 | 0.622 | 0.109 |
| 3⁄4 | 1.050 | 0.824 | 0.113 |
| 1 | 1.315 | 1.049 | 0.133 |
| 1 1⁄4 | 1.660 | 1.380 | 0.140 |
| 1 1⁄2 | 1.900 | 1.610 | 0.145 |
| 2 | 2.375 | 2.067 | 0.154 |
| 2 1⁄2 | 2.875 | 2.469 | 0.203 |
| 3 | 3.500 | 3.068 | 0.216 |
| 4 | 4.500 | 3.959 | 0.270 |
Selecting the Right PVC Pipe
Choosing the right PVC pipe for your project involves considering several factors:
- Application: Determine whether the pipe will be used for water supply, drainage, or another purpose.
- Pressure Requirements: Ensure the pipe can handle the required pressure. Schedule 80 pipes are suitable for high-pressure applications.
- Flow Rate: Calculate the flow rate needed for your system and select a pipe size that can accommodate it.
- Environmental Conditions: Consider the environmental factors such as temperature and chemical exposure.
Installation Tips for PVC Pipes
Proper installation of PVC pipes is crucial for their longevity and performance. Here are some tips to ensure a successful installation:
- Measure Accurately: Use a PVC Pipe Dimension Chart to measure and cut pipes accurately.
- Use Appropriate Fittings: Ensure that all fittings match the pipe size and type.
- Clean the Pipes: Clean the ends of the pipes before joining to ensure a tight seal.
- Apply Primer and Cement: Use PVC primer and cement to join the pipes securely.
- Allow for Curing: Allow the cement to cure properly before applying pressure or water.
🔧 Note: Always follow the manufacturer’s instructions for primer and cement application to ensure a strong bond.
Common Mistakes to Avoid
When working with PVC pipes, it’s easy to make mistakes that can compromise the integrity of your project. Here are some common errors to avoid:
- Incorrect Measurements: Double-check your measurements using a PVC Pipe Dimension Chart to avoid cutting pipes too short or too long.
- Improper Fittings: Using the wrong type or size of fittings can lead to leaks and poor performance.
- Inadequate Cleaning: Failing to clean the pipe ends can result in a weak bond and potential leaks.
- Insufficient Curing Time: Rushing the curing process can weaken the joint and cause failures over time.
Maintenance and Care
Proper maintenance and care of PVC pipes can extend their lifespan and ensure optimal performance. Here are some tips for maintaining your PVC pipes:
- Regular Inspections: Inspect your pipes regularly for signs of wear, cracks, or leaks.
- Avoid Chemical Exposure: Keep PVC pipes away from harsh chemicals that can degrade the material.
- Protect from Extreme Temperatures: Extreme heat or cold can affect the performance of PVC pipes.
- Clean Periodically: Clean the pipes periodically to remove any buildup or debris.
In summary, a PVC Pipe Dimension Chart is an essential tool for anyone working with PVC pipes. It provides the necessary measurements to ensure accurate fitting and installation, making it easier to select the right pipe for your project. By understanding the key measurements and following proper installation and maintenance practices, you can ensure the longevity and performance of your PVC pipes. Whether you’re a professional plumber or a DIY enthusiast, having access to a reliable PVC Pipe Dimension Chart can make your projects more efficient and successful.
