Pump Affinity Laws

Understanding the intricacies of fluid dynamics and pump performance is crucial for engineers and technicians working with pumps. One of the fundamental concepts in this field is the Pump Affinity Laws. These laws provide a straightforward way to predict how changes in pump speed, impeller diameter, and other parameters affect the pump's performance. By mastering these laws, professionals can optimize pump systems for efficiency, cost-effectiveness, and reliability.

Table of Contents

What are the Pump Affinity Laws?

The Pump Affinity Laws are a set of empirical relationships that describe how changes in pump speed and impeller diameter affect key performance parameters such as flow rate, head, and power. These laws are particularly useful for scaling pump performance from one set of operating conditions to another. The three primary parameters affected by these laws are:

Flow rate (Q)
Head (H)
Power (P)

The Basic Pump Affinity Laws

The basic Pump Affinity Laws can be summarized as follows:

Flow rate (Q) is directly proportional to the pump speed (N)
Head (H) is directly proportional to the square of the pump speed (N²)
Power (P) is directly proportional to the cube of the pump speed (N³)

These relationships can be expressed mathematically as:

Q₁/Q₂ = N₁/N₂

H₁/H₂ = (N₁/N₂)²

P₁/P₂ = (N₁/N₂)³

Where:

Q₁ and Q₂ are the flow rates at speeds N₁ and N₂, respectively.
H₁ and H₂ are the heads at speeds N₁ and N₂, respectively.
P₁ and P₂ are the powers at speeds N₁ and N₂, respectively.

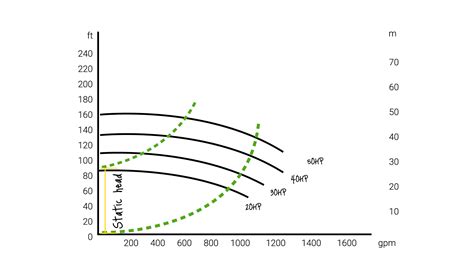

Applying the Pump Affinity Laws

To apply the Pump Affinity Laws, you need to understand how changes in pump speed affect the performance parameters. Let's go through an example to illustrate this:

Suppose you have a pump operating at 1750 RPM with a flow rate of 100 GPM and a head of 50 feet. You want to determine the new flow rate and head if the pump speed is increased to 1800 RPM.

Using the Pump Affinity Laws:

Q₂ = Q₁ * (N₂/N₁)

H₂ = H₁ * (N₂/N₁)²

Substituting the given values:

Q₂ = 100 GPM * (1800 RPM / 1750 RPM) = 102.86 GPM

H₂ = 50 feet * (1800 RPM / 1750 RPM)² = 53.76 feet

Therefore, at 1800 RPM, the new flow rate is approximately 102.86 GPM, and the new head is approximately 53.76 feet.

💡 Note: These calculations assume that the pump operates within its efficient range and that the fluid properties remain constant.

Impact of Impeller Diameter on Pump Performance

In addition to pump speed, the impeller diameter also significantly affects pump performance. The Pump Affinity Laws can be extended to account for changes in impeller diameter. The relationships are as follows:

Flow rate (Q) is directly proportional to the impeller diameter (D)
Head (H) is directly proportional to the square of the impeller diameter (D²)
Power (P) is directly proportional to the cube of the impeller diameter (D³)

These relationships can be expressed mathematically as:

Q₁/Q₂ = D₁/D₂

H₁/H₂ = (D₁/D₂)²

P₁/P₂ = (D₁/D₂)³

Where:

D₁ and D₂ are the impeller diameters.

For example, if you have a pump with an impeller diameter of 8 inches and you want to determine the new flow rate and head if the impeller diameter is increased to 10 inches, you can use the following calculations:

Q₂ = Q₁ * (D₂/D₁)

H₂ = H₁ * (D₂/D₁)²

Substituting the given values:

Q₂ = 100 GPM * (10 inches / 8 inches) = 125 GPM

H₂ = 50 feet * (10 inches / 8 inches)² = 78.125 feet

Therefore, with a 10-inch impeller, the new flow rate is 125 GPM, and the new head is 78.125 feet.

💡 Note: Changing the impeller diameter can affect the pump's efficiency and may require adjustments to the pump's design or operating conditions.

Combining Speed and Impeller Diameter Changes

In many practical scenarios, both the pump speed and impeller diameter may change. The Pump Affinity Laws can be combined to account for these simultaneous changes. The combined relationships are:

Q₂ = Q₁ * (N₂/N₁) * (D₂/D₁)

H₂ = H₁ * (N₂/N₁)² * (D₂/D₁)²

P₂ = P₁ * (N₂/N₁)³ * (D₂/D₁)³

For example, if you have a pump operating at 1750 RPM with an 8-inch impeller, and you want to determine the new flow rate and head if the speed is increased to 1800 RPM and the impeller diameter is increased to 10 inches, you can use the following calculations:

Q₂ = 100 GPM * (1800 RPM / 1750 RPM) * (10 inches / 8 inches) = 128.57 GPM

H₂ = 50 feet * (1800 RPM / 1750 RPM)² * (10 inches / 8 inches)² = 97.66 feet

Therefore, with the new speed and impeller diameter, the new flow rate is approximately 128.57 GPM, and the new head is approximately 97.66 feet.

💡 Note: When combining speed and impeller diameter changes, ensure that the pump operates within its safe and efficient range to avoid potential issues such as cavitation or excessive wear.

Practical Applications of the Pump Affinity Laws

The Pump Affinity Laws have numerous practical applications in various industries. Some of the key areas where these laws are applied include:

Process Control: In chemical and manufacturing processes, pumps are often used to transfer fluids at specific flow rates and pressures. The Pump Affinity Laws help engineers adjust pump speeds and impeller diameters to meet process requirements.
HVAC Systems: In heating, ventilation, and air conditioning (HVAC) systems, pumps are used to circulate water or other fluids. The Pump Affinity Laws enable technicians to optimize pump performance for energy efficiency and comfort.
Water Treatment: In water treatment plants, pumps are essential for moving water through various treatment stages. The Pump Affinity Laws assist in designing and operating pumps to ensure efficient water treatment processes.
Agriculture: In irrigation systems, pumps are used to distribute water to crops. The Pump Affinity Laws help farmers and engineers select and operate pumps that provide the necessary flow rates and pressures for effective irrigation.

Limitations of the Pump Affinity Laws

While the Pump Affinity Laws are powerful tools for predicting pump performance, they do have limitations. Some of these limitations include:

Efficiency: The laws assume that the pump's efficiency remains constant, which may not be the case in practice. Changes in speed and impeller diameter can affect efficiency, especially if the pump operates outside its optimal range.
Cavitation: High speeds and large impeller diameters can increase the risk of cavitation, which can damage the pump and reduce its lifespan. Engineers must ensure that the pump operates within safe parameters to avoid cavitation.
Fluid Properties: The laws assume that the fluid properties remain constant. Changes in fluid viscosity, density, or temperature can affect pump performance and may require adjustments to the calculations.

To mitigate these limitations, engineers should use the Pump Affinity Laws as a starting point and validate the results with empirical data or simulations. Regular maintenance and monitoring of pump performance can also help ensure that the pump operates efficiently and reliably.

💡 Note: Always consider the specific operating conditions and fluid properties when applying the Pump Affinity Laws to ensure accurate predictions and safe operation.

Conclusion

The Pump Affinity Laws are essential tools for engineers and technicians working with pumps. By understanding how changes in pump speed and impeller diameter affect flow rate, head, and power, professionals can optimize pump systems for efficiency, cost-effectiveness, and reliability. Whether in process control, HVAC systems, water treatment, or agriculture, the Pump Affinity Laws provide a straightforward way to predict and adjust pump performance. However, it is crucial to consider the limitations of these laws and validate the results with empirical data or simulations to ensure accurate and safe operation.
