Psig Vs Psia

Understanding the difference between Psig vs Psia is crucial for anyone working in fields that involve pressure measurements, such as engineering, manufacturing, and scientific research. Both terms refer to units of pressure, but they have distinct meanings and applications. This blog post will delve into the definitions, conversions, and practical uses of Psig and Psia, providing a comprehensive guide to help you navigate these essential pressure units.

Table of Contents

What is Psig?

Psig stands for pounds per square inch gauge. It is a unit of pressure relative to atmospheric pressure. In other words, Psig measures the pressure above or below the current atmospheric pressure. This makes it a useful unit for many industrial and engineering applications where the relative pressure is more relevant than the absolute pressure.

For example, when you check the tire pressure of a car, you are typically looking at the Psig reading. This is because the tire pressure gauge measures the pressure inside the tire relative to the surrounding atmospheric pressure. If the gauge reads 32 Psig, it means the pressure inside the tire is 32 pounds per square inch higher than the atmospheric pressure.

What is Psia?

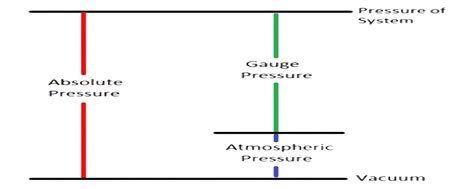

Psia stands for pounds per square inch absolute. Unlike Psig, Psia measures the total pressure, including atmospheric pressure. This means that Psia provides an absolute value of pressure, which is essential in applications where the total pressure is critical.

For instance, in aerospace engineering, the pressure inside a sealed cabin must be maintained at a specific absolute pressure to ensure the safety of passengers and crew. In this context, Psia is the appropriate unit because it accounts for the total pressure, including the atmospheric pressure outside the cabin.

Converting Between Psig and Psia

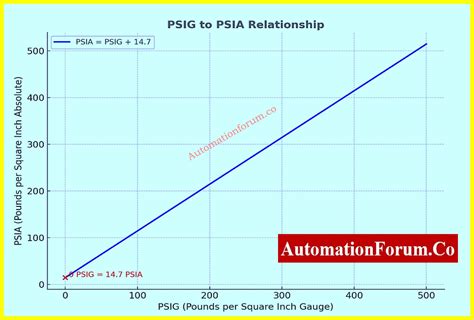

Converting between Psig and Psia is a common task in many industries. The conversion is straightforward once you understand the relationship between the two units. The formula to convert Psig to Psia is:

Psia = Psig + Atmospheric Pressure

Atmospheric pressure at sea level is approximately 14.7 Psia. Therefore, the conversion formula can be simplified to:

Psia = Psig + 14.7

Conversely, to convert Psia to Psig, you subtract the atmospheric pressure from the absolute pressure:

Psig = Psia - 14.7

Here is a table to illustrate the conversion between Psig and Psia:

Psig	Psia
0	14.7
10	24.7
20	34.7
30	44.7
40	54.7

It's important to note that atmospheric pressure can vary slightly depending on altitude and weather conditions. However, for most practical purposes, using 14.7 Psia as the standard atmospheric pressure is sufficient.

📝 Note: Always verify the atmospheric pressure value if working in environments with significant altitude variations or extreme weather conditions.

Practical Applications of Psig and Psia

Understanding when to use Psig vs Psia is essential for accurate pressure measurements in various applications. Here are some practical examples:

Tire Pressure: Tire pressure gauges typically display readings in Psig. This is because the relative pressure inside the tire compared to the surrounding atmosphere is what affects the tire's performance and safety.
Aerospace Engineering: In aerospace, Psia is used to ensure that the pressure inside aircraft cabins is maintained at a safe level. This is crucial for the health and safety of passengers and crew.
Industrial Processes: Many industrial processes, such as manufacturing and chemical production, require precise pressure control. Psig is often used to monitor and control the relative pressure in these processes.
Scientific Research: In scientific experiments, Psia is used to measure absolute pressure, which is essential for accurate data collection and analysis.

Importance of Accurate Pressure Measurements

Accurate pressure measurements are vital in many industries and applications. Incorrect pressure readings can lead to:

Safety Hazards: Inaccurate pressure measurements can result in equipment failure, explosions, or other safety hazards.
Efficiency Losses: Incorrect pressure readings can lead to inefficiencies in industrial processes, resulting in increased costs and reduced productivity.
Data Inaccuracy: In scientific research, inaccurate pressure measurements can compromise the validity of experimental data.

Therefore, it is crucial to understand the difference between Psig and Psia and to use the appropriate unit for your specific application.

📝 Note: Always double-check your pressure measurements and ensure that you are using the correct unit for your application.

Common Mistakes and How to Avoid Them

When working with pressure measurements, it's easy to make mistakes, especially when converting between Psig and Psia. Here are some common mistakes and how to avoid them:

Incorrect Conversion: Ensure you are using the correct conversion formula. Remember, Psia = Psig + 14.7 and Psig = Psia - 14.7.
Ignoring Atmospheric Pressure: Always account for atmospheric pressure when converting between Psig and Psia. Ignoring this can lead to significant errors.
Using the Wrong Unit: Make sure you are using the correct unit for your application. Psig is suitable for relative pressure measurements, while Psia is used for absolute pressure measurements.

By being aware of these common mistakes and taking the necessary precautions, you can ensure accurate pressure measurements and avoid potential issues.

📝 Note: Regularly calibrate your pressure gauges and instruments to maintain accuracy.

In summary, understanding the difference between Psig vs Psia is essential for accurate pressure measurements in various applications. Psig measures relative pressure, while Psia measures absolute pressure. Converting between these units is straightforward with the correct formulas, and using the appropriate unit for your application is crucial for safety, efficiency, and data accuracy. By following best practices and avoiding common mistakes, you can ensure reliable pressure measurements in your work.
