Understanding the intersection of different events is a fundamental concept in probability theory. One of the most effective tools for visualizing these intersections is the Probability Venn Diagram. This diagram helps in illustrating the relationships between multiple sets and their probabilities, making complex probability problems more accessible and easier to solve.
What is a Probability Venn Diagram?

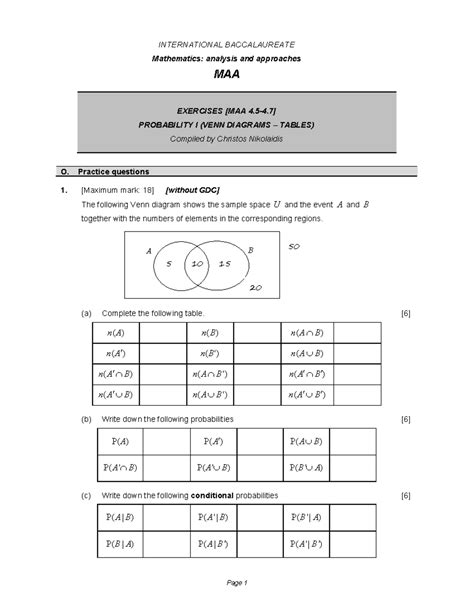

A Probability Venn Diagram is a graphical representation used to show the relationships between different sets and their probabilities. It consists of overlapping circles or other shapes, each representing a set. The areas where these shapes overlap represent the intersections of the sets, and the areas outside the shapes represent the complements of the sets.
Basic Components of a Probability Venn Diagram
The basic components of a Probability Venn Diagram include:
- Sets: Each circle or shape represents a set of elements.
- Intersections: The overlapping areas between circles represent the intersection of sets.
- Complements: The areas outside the circles represent the complements of the sets.
- Probabilities: The areas within the circles and their intersections are often labeled with probabilities.
Constructing a Probability Venn Diagram
Constructing a Probability Venn Diagram involves several steps. Here’s a step-by-step guide to creating one:
- Identify the Sets: Determine the sets you want to represent. For example, if you are dealing with two sets A and B, you will need two circles.
- Draw the Circles: Draw overlapping circles to represent the sets. The area where the circles overlap represents the intersection of the sets.
- Label the Areas: Label the different regions of the diagram with the appropriate probabilities. This includes the areas inside each circle, the overlapping area, and the area outside both circles.
- Assign Probabilities: Use the given probabilities to fill in the labeled areas. Ensure that the sum of all probabilities equals 1.
📝 Note: When constructing a Probability Venn Diagram, it’s important to ensure that the sum of all probabilities in the diagram equals 1. This is because the total probability of all possible outcomes must be 1.

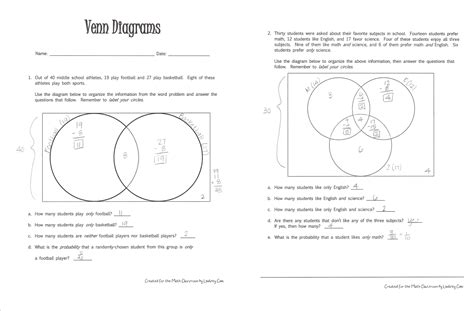

Example of a Probability Venn Diagram
Let’s consider an example to illustrate how a Probability Venn Diagram can be used. Suppose we have two sets, A and B, with the following probabilities:
- P(A) = 0.6
- P(B) = 0.5
- P(A ∩ B) = 0.3
To construct the Probability Venn Diagram, follow these steps:
- Draw two overlapping circles, one for set A and one for set B.
- Label the overlapping area with P(A ∩ B) = 0.3.
- Label the area inside circle A but outside circle B with P(A) - P(A ∩ B) = 0.6 - 0.3 = 0.3.
- Label the area inside circle B but outside circle A with P(B) - P(A ∩ B) = 0.5 - 0.3 = 0.2.
- Label the area outside both circles with 1 - P(A) - P(B) + P(A ∩ B) = 1 - 0.6 - 0.5 + 0.3 = 0.2.

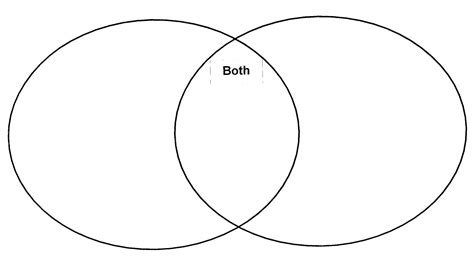

Here is a visual representation of the Probability Venn Diagram for this example:
Applications of Probability Venn Diagrams
Probability Venn Diagrams have a wide range of applications in various fields, including statistics, data analysis, and decision-making. Some of the key applications include:
- Data Analysis: Venn diagrams are used to analyze the overlap between different datasets, helping to identify common elements and unique features.
- Decision-Making: In business and finance, Venn diagrams help in visualizing the probabilities of different outcomes, aiding in informed decision-making.
- Educational Tools: In education, Venn diagrams are used to teach probability theory and set theory, making complex concepts more understandable.
- Research: In scientific research, Venn diagrams are used to visualize the relationships between different variables and their probabilities.
Advanced Probability Venn Diagrams
While the basic Probability Venn Diagram involves two or three sets, more complex diagrams can be created to represent multiple sets. These advanced diagrams can help in visualizing the relationships between a larger number of sets and their probabilities.
For example, consider a Probability Venn Diagram with three sets A, B, and C. The diagram would consist of three overlapping circles, with each intersection representing the probability of the intersection of two or three sets. The probabilities would be labeled in the respective areas, ensuring that the sum of all probabilities equals 1.
Here is a table summarizing the probabilities for a three-set Probability Venn Diagram:
| Region | Probability |
|---|---|
| A only | P(A) - P(A ∩ B) - P(A ∩ C) + P(A ∩ B ∩ C) |
| B only | P(B) - P(A ∩ B) - P(B ∩ C) + P(A ∩ B ∩ C) |
| C only | P(C) - P(A ∩ C) - P(B ∩ C) + P(A ∩ B ∩ C) |
| A ∩ B | P(A ∩ B) - P(A ∩ B ∩ C) |
| A ∩ C | P(A ∩ C) - P(A ∩ B ∩ C) |
| B ∩ C | P(B ∩ C) - P(A ∩ B ∩ C) |
| A ∩ B ∩ C | P(A ∩ B ∩ C) |
| None | 1 - P(A) - P(B) - P(C) + P(A ∩ B) + P(A ∩ C) + P(B ∩ C) - P(A ∩ B ∩ C) |
Advanced Probability Venn Diagrams can become quite complex, but they provide a powerful tool for visualizing and understanding the relationships between multiple sets and their probabilities.
📝 Note: When dealing with advanced Probability Venn Diagrams, it’s important to carefully label each region and ensure that the sum of all probabilities equals 1. This can help avoid errors and ensure the accuracy of the diagram.
Probability Venn Diagrams are a versatile and powerful tool for visualizing the relationships between different sets and their probabilities. By understanding how to construct and interpret these diagrams, you can gain valuable insights into complex probability problems and make more informed decisions. Whether you are a student, a researcher, or a professional, mastering the use of Probability Venn Diagrams can greatly enhance your ability to analyze and solve probability-related challenges.
