Electrolytic corrosion is a significant issue in various industries, particularly in marine, automotive, and industrial settings. This type of corrosion occurs when two dissimilar metals are in electrical contact in the presence of an electrolyte, leading to the degradation of one of the metals. Preventing electrolytic corrosion is crucial for maintaining the integrity and longevity of metal structures and components. This blog post will delve into the causes, effects, and most importantly, the strategies for preventing electrolytic corrosion.
Understanding Electrolytic Corrosion

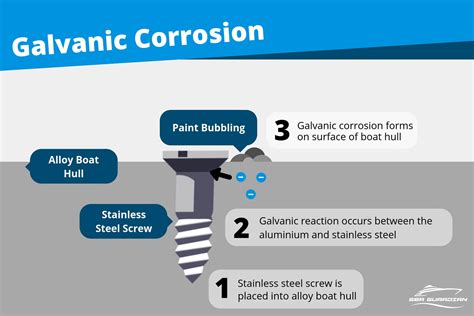

Electrolytic corrosion, also known as galvanic corrosion, happens when two different metals are connected in an electrolyte solution. The electrolyte can be any conductive liquid, such as seawater, acid rain, or even moisture in the air. In this setup, one metal acts as the anode and the other as the cathode. The anode corrodes preferentially, while the cathode is protected. This process can lead to rapid deterioration of the anode metal, compromising the structural integrity of the component.
Causes of Electrolytic Corrosion
Several factors contribute to electrolytic corrosion:
- Dissimilar Metals: The presence of two different metals in contact.
- Electrolyte: A conductive liquid that facilitates the flow of electric current between the metals.
- Electrical Contact: A direct or indirect electrical connection between the metals.
These factors create a galvanic cell, where the anode metal corrodes to protect the cathode metal. The rate of corrosion depends on the difference in electrochemical potential between the two metals and the conductivity of the electrolyte.
Effects of Electrolytic Corrosion
Electrolytic corrosion can have severe consequences, including:
- Structural Failure: Corrosion can weaken metal structures, leading to failures that can be catastrophic.
- Economic Losses: Replacement and repair costs can be significant, impacting budgets and operations.
- Safety Hazards: Corroded components can pose safety risks, especially in critical infrastructure like bridges and pipelines.
Preventing electrolytic corrosion is essential to mitigate these effects and ensure the safety and reliability of metal components.
Strategies for Preventing Electrolytic Corrosion
Several strategies can be employed to prevent electrolytic corrosion. These methods focus on breaking the galvanic cell by isolating the metals, using protective coatings, or selecting compatible materials.
Material Selection
Choosing metals with similar electrochemical potentials can minimize the risk of electrolytic corrosion. A table of standard electrode potentials can guide material selection:
| Metal | Standard Electrode Potential (V) |
|---|---|
| Magnesium | -2.37 |
| Aluminum | -1.66 |
| Zinc | -0.76 |
| Iron | -0.44 |
| Nickel | -0.25 |
| Tin | -0.14 |
| Lead | -0.13 |
| Hydrogen | 0.00 |
| Copper | +0.34 |
| Silver | +0.80 |
| Gold | +1.50 |
Metals with similar potentials are less likely to form a galvanic cell, reducing the risk of electrolytic corrosion.
Insulation and Isolation
Insulating the metals to prevent electrical contact can effectively prevent electrolytic corrosion. This can be achieved through:
- Physical Separation: Keeping the metals apart to avoid direct contact.
- Insulating Materials: Using non-conductive materials like rubber, plastic, or ceramic to separate the metals.
Ensuring that the insulating material is resistant to the electrolyte and maintains its insulating properties over time is crucial.
🔍 Note: Regular inspection of insulating materials is essential to ensure they remain effective.
Protective Coatings
Applying protective coatings to the metals can create a barrier between the metal and the electrolyte, preventing the formation of a galvanic cell. Common protective coatings include:
- Paint: Provides a physical barrier but may not be suitable for all environments.
- Galvanization: Coating with zinc to protect the underlying metal.
- Anodization: Creating a protective oxide layer on the metal surface.
The choice of coating depends on the specific application and the environment in which the metal will be used.
🔍 Note: Ensure that the coating is compatible with the metal and the electrolyte to avoid adverse reactions.
Sacrificial Anodes
Sacrificial anodes are made of a metal that is more anodic than the metal being protected. When placed in the same electrolyte, the sacrificial anode corrodes preferentially, protecting the more noble metal. Common sacrificial anodes include:
- Zinc: Often used to protect steel structures.
- Magnesium: Used in environments with high resistivity electrolytes.
- Aluminum: Effective in seawater and other conductive environments.
Sacrificial anodes are particularly useful in marine applications, where the electrolyte is highly conductive.
🔍 Note: Regular replacement of sacrificial anodes is necessary to maintain their protective effect.
Cathodic Protection
Cathodic protection involves applying an external electrical current to the metal to make it the cathode in the galvanic cell. This method can be achieved through:
- Impressed Current: Using an external power source to apply a current.
- Galvanic Anodes: Using sacrificial anodes to provide the current.
Cathodic protection is widely used in pipelines, storage tanks, and marine structures to prevent electrolytic corrosion.
🔍 Note: Proper design and maintenance of cathodic protection systems are crucial for their effectiveness.
Case Studies in Preventing Electrolytic Corrosion
Several real-world examples illustrate the effectiveness of these strategies in preventing electrolytic corrosion:
Marine Structures
Marine structures, such as ships and offshore platforms, are particularly susceptible to electrolytic corrosion due to the conductive nature of seawater. Sacrificial anodes and cathodic protection systems are commonly used to protect these structures. For example, offshore oil platforms often use impressed current cathodic protection to prevent corrosion of their steel structures.
Automotive Industry
In the automotive industry, electrolytic corrosion can occur in the electrical systems and body panels. Galvanization and protective coatings are widely used to prevent corrosion. For instance, car manufacturers often apply zinc coatings to steel body panels to protect them from corrosion caused by road salts and moisture.
Industrial Pipelines
Industrial pipelines, especially those carrying corrosive fluids, are at high risk of electrolytic corrosion. Cathodic protection and the use of corrosion-resistant alloys are common strategies. For example, oil and gas pipelines often use impressed current cathodic protection to prevent corrosion and ensure the integrity of the pipeline.
These case studies demonstrate the practical application of Preventing Electrolytic Corrosion strategies in various industries, highlighting their effectiveness in maintaining the integrity and longevity of metal components.
Preventing electrolytic corrosion is a multifaceted challenge that requires a comprehensive approach. By understanding the causes and effects of electrolytic corrosion and implementing effective prevention strategies, industries can mitigate the risks and ensure the safety and reliability of their metal components. Regular inspection, maintenance, and the use of advanced materials and technologies are key to successful corrosion prevention.
