Ventilatory support is a critical component of modern medical care, particularly in intensive care units (ICUs) where patients often require assistance to breathe. One of the advanced modes of ventilation is Pressure Support Ventilation (PSV). This mode is designed to augment the patient's own breathing efforts by providing a set level of pressure support during inspiration. Understanding PSV, its applications, and its benefits can significantly enhance the quality of care provided to patients in need of respiratory support.
Understanding Pressure Support Ventilation
Pressure Support Ventilation (PSV) is a mode of mechanical ventilation that delivers a predetermined level of pressure support during the inspiratory phase of the breathing cycle. Unlike other modes of ventilation that control the volume or pressure delivered to the patient, PSV allows the patient to determine the tidal volume and respiratory rate. This mode is particularly useful for patients who are capable of initiating their own breaths but require additional support to overcome the resistance of the ventilator circuit and the work of breathing.
Mechanism of Pressure Support Ventilation

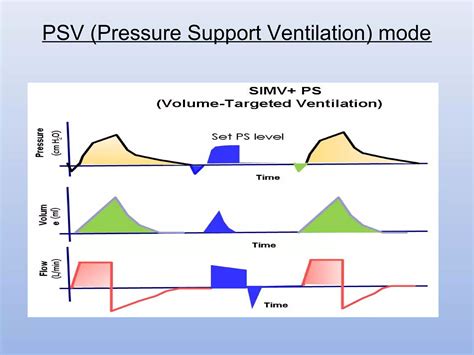

PSV operates by providing a constant level of pressure above the baseline pressure (usually positive end-expiratory pressure, or PEEP) during the inspiratory phase. The ventilator triggers inspiration when the patient initiates a breath, and the pressure support is maintained until the patient's inspiratory flow decreases to a predetermined threshold, at which point the ventilator cycles to expiration. This mechanism ensures that the patient receives the necessary support to breathe comfortably while maintaining control over their respiratory pattern.
Indications for Pressure Support Ventilation
PSV is indicated in various clinical scenarios where patients require respiratory support but are capable of initiating their own breaths. Some common indications include:
- Weaning from mechanical ventilation: PSV is often used during the weaning process to gradually reduce the level of support as the patient's respiratory function improves.
- Acute respiratory failure: Patients with acute respiratory failure who are capable of initiating breaths but require additional support to overcome the work of breathing.
- Chronic obstructive pulmonary disease (COPD): Patients with COPD often benefit from PSV as it helps to reduce the work of breathing and improve gas exchange.
- Post-operative respiratory support: Patients recovering from surgery who require temporary respiratory support to overcome the effects of anesthesia and postoperative pain.
Benefits of Pressure Support Ventilation
PSV offers several benefits that make it a preferred mode of ventilation in many clinical settings. Some of the key advantages include:
- Patient Comfort: PSV allows patients to determine their own respiratory rate and tidal volume, which can enhance comfort and reduce the sensation of dyspnea.
- Reduced Work of Breathing: By providing pressure support during inspiration, PSV helps to reduce the work of breathing, making it easier for patients to breathe.
- Improved Synchrony: PSV improves patient-ventilator synchrony by allowing the patient to control the timing and depth of breaths, reducing the risk of patient-ventilator asynchrony.
- Enhanced Weaning: PSV is an effective tool for weaning patients from mechanical ventilation, as it allows for a gradual reduction in support as the patient's respiratory function improves.
Setting Up Pressure Support Ventilation
Setting up PSV involves several key steps to ensure optimal ventilation and patient comfort. The following guidelines outline the process:
- Initial Assessment: Evaluate the patient's respiratory status, including respiratory rate, tidal volume, and oxygen saturation.
- Selecting Pressure Support Level: Choose an initial pressure support level based on the patient's respiratory effort and the desired tidal volume. A common starting point is 5-10 cm H2O, which can be adjusted based on the patient's response.
- Setting PEEP: Determine the appropriate level of PEEP to maintain alveolar recruitment and improve oxygenation. Typical PEEP levels range from 5-10 cm H2O, but this can vary based on the patient's condition.
- Monitoring and Adjustment: Continuously monitor the patient's respiratory parameters, including tidal volume, respiratory rate, and oxygen saturation. Adjust the pressure support level and PEEP as needed to maintain optimal ventilation and patient comfort.
🔍 Note: It is crucial to monitor the patient closely during PSV to ensure that the pressure support level is adequate and that the patient is not experiencing respiratory distress.
Challenges and Considerations
While PSV offers numerous benefits, there are also challenges and considerations that clinicians must be aware of. Some of the key points to consider include:
- Patient-ventilator Asynchrony: Despite the improved synchrony offered by PSV, patient-ventilator asynchrony can still occur, particularly if the pressure support level is not appropriately set.
- Hypoventilation: Inadequate pressure support can lead to hypoventilation, resulting in elevated carbon dioxide levels and respiratory acidosis.
- Hyperventilation: Excessive pressure support can cause hyperventilation, leading to respiratory alkalosis and potential complications.
- Airway Pressure: High levels of pressure support can increase airway pressure, which may be detrimental to patients with certain respiratory conditions, such as COPD or asthma.
Comparing Pressure Support Ventilation with Other Modes
PSV is just one of several modes of mechanical ventilation available to clinicians. Understanding how PSV compares to other modes can help in selecting the most appropriate ventilation strategy for a given patient. Here is a comparison of PSV with other common modes of ventilation:
| Mode of Ventilation | Control Variable | Patient Control | Typical Use |
|---|---|---|---|
| Pressure Support Ventilation (PSV) | Pressure | High | Weaning, acute respiratory failure, COPD |
| Volume-Controlled Ventilation (VCV) | Volume | Low | Acute respiratory distress syndrome (ARDS), postoperative support |
| Pressure-Controlled Ventilation (PCV) | Pressure | Low | ARDS, postoperative support |
| Synchronized Intermittent Mandatory Ventilation (SIMV) | Volume or Pressure | Moderate | Weaning, acute respiratory failure |
Each mode of ventilation has its own advantages and disadvantages, and the choice of mode depends on the patient's specific needs and clinical condition. PSV is particularly useful for patients who require respiratory support but are capable of initiating their own breaths, making it a valuable tool in the management of various respiratory conditions.
Future Directions in Pressure Support Ventilation
As medical technology continues to advance, so too does the field of mechanical ventilation. Future developments in PSV may include:
- Adaptive Pressure Support: Systems that automatically adjust the pressure support level based on the patient's respiratory effort and needs, enhancing comfort and efficiency.
- Non-Invasive PSV: Advances in non-invasive ventilation techniques that allow for the delivery of PSV without the need for intubation, reducing the risk of complications and improving patient comfort.
- Integrated Monitoring: Enhanced monitoring systems that provide real-time feedback on the patient's respiratory status, allowing for more precise adjustments to the pressure support level and PEEP.
These advancements hold the potential to further improve the effectiveness and comfort of PSV, making it an even more valuable tool in the management of respiratory conditions.
In conclusion, Pressure Support Ventilation (PSV) is a critical mode of mechanical ventilation that offers numerous benefits for patients requiring respiratory support. By providing a set level of pressure support during inspiration, PSV enhances patient comfort, reduces the work of breathing, and improves patient-ventilator synchrony. Understanding the indications, benefits, and challenges of PSV is essential for clinicians to optimize its use and provide the best possible care for their patients. As medical technology continues to evolve, future developments in PSV hold the promise of even greater improvements in respiratory care, ensuring that patients receive the support they need to breathe comfortably and effectively.
