Understanding the intricacies of pressure gauge pressure is crucial for anyone working in industries that rely on accurate pressure measurements. Whether you are a professional in the field of engineering, manufacturing, or even a hobbyist working on DIY projects, knowing how to measure and interpret pressure gauge pressure can significantly impact the success and safety of your endeavors. This guide will delve into the fundamentals of pressure gauge pressure, its applications, and how to ensure accurate readings.
Understanding Pressure Gauge Pressure
Pressure gauge pressure refers to the measurement of pressure exerted by a fluid (liquid or gas) within a confined space. This measurement is essential in various industries, including automotive, aerospace, manufacturing, and HVAC systems. Understanding the basics of pressure gauge pressure is the first step in ensuring accurate and reliable measurements.
Pressure gauges are instruments designed to measure the pressure of fluids. They come in various types, each suited for different applications. The most common types include:

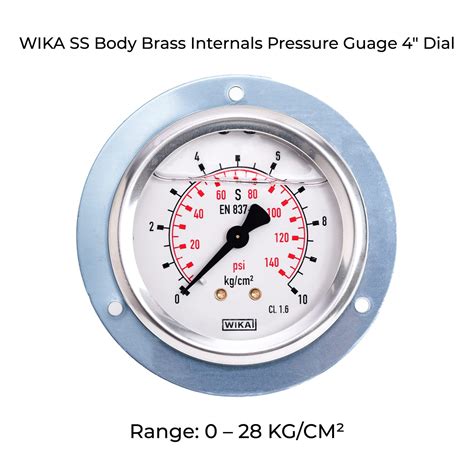

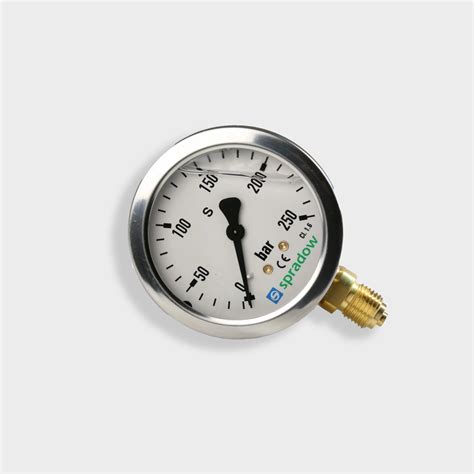

- Bourdon Tube Gauges: These are the most widely used pressure gauges. They operate on the principle of a curved tube that straightens under pressure, moving a pointer on a dial.
- Diaphragm Gauges: These gauges use a flexible diaphragm that deflects under pressure, converting the deflection into a readable measurement.
- Piezoresistive Gauges: These are electronic gauges that use a sensor to measure pressure changes and convert them into an electrical signal.
Applications of Pressure Gauge Pressure
Pressure gauge pressure is utilized in a wide array of applications across different industries. Some of the key areas where pressure gauge pressure is crucial include:
- Automotive Industry: Pressure gauges are used to monitor tire pressure, oil pressure, and fuel pressure, ensuring the vehicle operates efficiently and safely.
- Aerospace Industry: In aircraft, pressure gauges are essential for monitoring cabin pressure, fuel pressure, and hydraulic systems.
- Manufacturing: Pressure gauges are used in various manufacturing processes to monitor and control pressure in machinery, ensuring consistent product quality.
- HVAC Systems: In heating, ventilation, and air conditioning systems, pressure gauges help monitor refrigerant pressure, ensuring the system operates efficiently.
Ensuring Accurate Pressure Gauge Pressure Readings
Accurate pressure gauge pressure readings are vital for the safety and efficiency of various systems. Here are some steps to ensure accurate readings:
- Calibration: Regular calibration of pressure gauges is essential to maintain accuracy. Calibration involves comparing the gauge's readings to a known standard and adjusting it if necessary.
- Environmental Factors: Environmental conditions such as temperature and humidity can affect pressure gauge readings. Ensure the gauge is used within its specified operating conditions.
- Proper Installation: Incorrect installation can lead to inaccurate readings. Ensure the gauge is installed in a location where it can accurately measure the pressure without interference.
- Maintenance: Regular maintenance of pressure gauges, including cleaning and checking for leaks, can help ensure accurate readings.
📝 Note: Always refer to the manufacturer's guidelines for specific calibration and maintenance procedures.
Types of Pressure Gauges
Different types of pressure gauges are designed to measure various ranges and types of pressure. Understanding the different types can help you choose the right gauge for your specific application.
Here is a table that outlines the different types of pressure gauges and their typical applications:
| Type of Pressure Gauge | Typical Applications |
|---|---|
| Bourdon Tube Gauges | Industrial machinery, HVAC systems, automotive |
| Diaphragm Gauges | Low-pressure applications, medical devices, food and beverage industry |
| Piezoresistive Gauges | Electronic devices, aerospace, automotive |
| Capacitive Gauges | High-precision applications, scientific research, semiconductor manufacturing |
| Strain Gauge Pressure Transducers | Industrial automation, process control, aerospace |
Calibrating Pressure Gauges
Calibration is a critical process that ensures the accuracy of pressure gauge pressure readings. Here are the steps to calibrate a pressure gauge:
- Prepare the Equipment: Gather the necessary equipment, including a calibration standard, pressure source, and any required adapters.
- Connect the Gauge: Connect the pressure gauge to the calibration standard using the appropriate adapters.
- Apply Pressure: Gradually apply pressure to the gauge, starting from the lowest measurement range and increasing to the highest.
- Compare Readings: Compare the gauge’s readings to the calibration standard. Note any discrepancies.
- Adjust the Gauge: If necessary, adjust the gauge to match the calibration standard. This may involve turning an adjustment screw or using a calibration tool.
- Repeat the Process: Repeat the calibration process at multiple points within the gauge’s measurement range to ensure accuracy.
📝 Note: Always follow the manufacturer's instructions for calibrating your specific pressure gauge model.
Maintaining Pressure Gauges
Maintaining pressure gauges is essential for ensuring their longevity and accuracy. Regular maintenance can help prevent failures and ensure reliable pressure gauge pressure readings. Here are some maintenance tips:
- Regular Inspections: Inspect pressure gauges regularly for signs of wear, damage, or leaks. Replace any damaged components immediately.
- Cleaning: Clean pressure gauges regularly to remove dirt, dust, and other contaminants that can affect their performance.
- Lubrication: Lubricate moving parts as recommended by the manufacturer to ensure smooth operation.
- Storage: Store pressure gauges in a clean, dry environment when not in use to prevent damage from moisture or contaminants.
📝 Note: Always refer to the manufacturer's guidelines for specific maintenance procedures and recommended intervals.
Troubleshooting Common Issues
Even with proper maintenance, pressure gauges can encounter issues that affect their accuracy. Here are some common problems and their solutions:
- Inaccurate Readings: If the gauge is providing inaccurate readings, it may need calibration. Follow the calibration steps outlined earlier to ensure accuracy.
- Leaks: If you notice leaks around the gauge, check for damaged seals or connections. Replace any damaged components and ensure all connections are tight.
- Damaged Dial: If the gauge’s dial is damaged or difficult to read, it may need replacement. Contact the manufacturer for a replacement dial or gauge.
- Stuck Pointer: If the gauge’s pointer is stuck, it may be due to dirt or debris. Clean the gauge thoroughly and ensure all moving parts are lubricated.
📝 Note: Always consult the manufacturer's guidelines for troubleshooting specific issues with your pressure gauge model.
Advanced Pressure Gauge Technologies
Advancements in technology have led to the development of more sophisticated pressure gauges that offer enhanced accuracy and functionality. Some of the latest technologies in pressure gauge pressure measurement include:

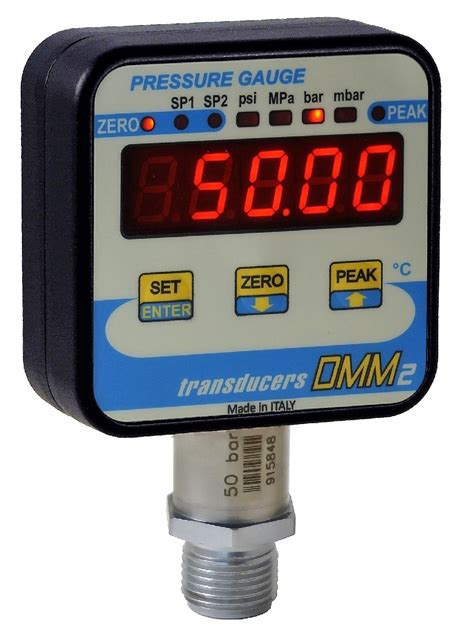

- Digital Pressure Gauges: These gauges use electronic sensors to measure pressure and display the readings on a digital screen. They offer high accuracy and can be easily integrated with other electronic systems.
- Smart Pressure Gauges: Smart pressure gauges are equipped with wireless connectivity and can transmit data to a central monitoring system. They are ideal for applications that require real-time monitoring and data logging.
- High-Precision Pressure Gauges: These gauges are designed for applications that require extremely accurate pressure measurements, such as scientific research and semiconductor manufacturing. They use advanced sensors and calibration techniques to ensure high precision.
📝 Note: Always ensure that the advanced pressure gauge technology you choose is compatible with your specific application and meets your accuracy requirements.
Understanding pressure gauge pressure is essential for anyone working in industries that rely on accurate pressure measurements. From the basics of pressure gauge pressure to the latest technologies, this guide has covered the key aspects of pressure gauge pressure measurement. By following the steps outlined for calibration, maintenance, and troubleshooting, you can ensure accurate and reliable pressure gauge pressure readings. Whether you are a professional or a hobbyist, mastering the art of pressure gauge pressure measurement can significantly impact the success and safety of your projects.
