In the realm of modern technology, the Pressure Detection Sensor plays a pivotal role in various applications, from industrial automation to consumer electronics. These sensors are designed to measure the force exerted by a physical object or fluid, converting this pressure into an electrical signal that can be read and interpreted by other devices. Understanding the intricacies of Pressure Detection Sensors is crucial for anyone involved in engineering, manufacturing, or even everyday gadget use.
Understanding Pressure Detection Sensors

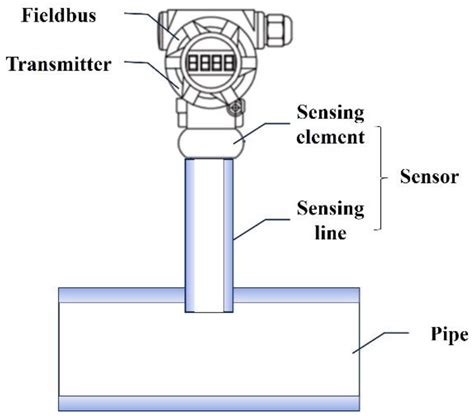

A Pressure Detection Sensor is a device that converts pressure into an analog electrical signal. This signal can then be measured, displayed, or transmitted to other devices for further processing. The basic principle behind these sensors involves the use of a diaphragm or piston that deforms under pressure, which in turn changes the electrical properties of the sensor.
There are several types of Pressure Detection Sensors, each suited to different applications:
- Piezoelectric Sensors: These sensors generate an electrical charge in response to applied pressure. They are highly sensitive and are often used in dynamic measurements.
- Strain Gauge Sensors: These sensors use a flexible backing that deforms under pressure, changing the electrical resistance of the gauge. They are commonly used in industrial applications.
- Capacitive Sensors: These sensors measure changes in capacitance caused by the deformation of a diaphragm under pressure. They are known for their high accuracy and stability.

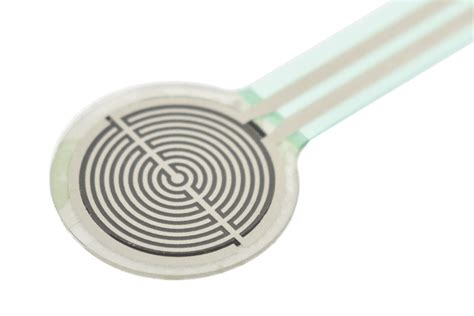

- Resistive Sensors: These sensors change their resistance in response to pressure. They are simple and cost-effective, making them suitable for a wide range of applications.
Applications of Pressure Detection Sensors
The versatility of Pressure Detection Sensors makes them indispensable in numerous fields. Some of the key applications include:
- Industrial Automation: In manufacturing, Pressure Detection Sensors are used to monitor and control processes such as hydraulic systems, pneumatic systems, and fluid flow.
- Automotive Industry: These sensors are crucial for monitoring tire pressure, engine oil pressure, and fuel pressure, ensuring the safety and efficiency of vehicles.
- Medical Devices: In healthcare, Pressure Detection Sensors are used in blood pressure monitors, respiratory equipment, and other medical devices to ensure accurate measurements.
- Consumer Electronics: From smartwatches that monitor blood pressure to home appliances that regulate water pressure, these sensors enhance the functionality and reliability of everyday devices.
Key Features of Pressure Detection Sensors
When selecting a Pressure Detection Sensor, several key features should be considered to ensure it meets the specific requirements of the application:
- Range: The range of pressure that the sensor can measure, typically specified in units such as Pascals (Pa), bars, or pounds per square inch (psi).
- Accuracy: The precision of the sensor's measurements, often expressed as a percentage of the full-scale output.
- Response Time: The time it takes for the sensor to respond to a change in pressure, crucial for dynamic applications.
- Temperature Compensation: The ability of the sensor to maintain accuracy over a range of temperatures, ensuring reliable performance in varying environmental conditions.
- Durability: The sensor's ability to withstand harsh conditions, including exposure to chemicals, moisture, and mechanical stress.
Selecting the Right Pressure Detection Sensor
Choosing the right Pressure Detection Sensor involves considering several factors to ensure it meets the specific needs of the application. Here are some steps to guide the selection process:
- Define the Application Requirements: Identify the specific pressure range, accuracy, and response time needed for the application.
- Evaluate Environmental Conditions: Consider the operating temperature, humidity, and any potential exposure to chemicals or mechanical stress.
- Compare Sensor Types: Evaluate the different types of Pressure Detection Sensors (piezoelectric, strain gauge, capacitive, resistive) to determine which is best suited for the application.
- Check Compatibility: Ensure the sensor is compatible with the existing system, including power requirements, signal output, and communication protocols.
- Review Cost and Availability: Consider the cost of the sensor and its availability, ensuring it fits within the project budget and timeline.
🔍 Note: It is essential to consult with a sensor specialist or manufacturer if unsure about the specific requirements or compatibility of the sensor.
Calibration and Maintenance of Pressure Detection Sensors
To ensure the accuracy and reliability of Pressure Detection Sensors, regular calibration and maintenance are crucial. Calibration involves comparing the sensor's output to a known standard and adjusting it as necessary to maintain accuracy. Maintenance includes cleaning the sensor, checking for any physical damage, and ensuring proper installation.
Here are some best practices for calibrating and maintaining Pressure Detection Sensors:
- Regular Calibration: Calibrate the sensor at regular intervals, typically every 6 to 12 months, depending on the application and environmental conditions.
- Use Calibration Standards: Use certified calibration standards to ensure accurate and reliable calibration.
- Check for Physical Damage: Inspect the sensor for any signs of physical damage, such as cracks or corrosion, which can affect its performance.
- Clean the Sensor: Clean the sensor regularly to remove any dirt, dust, or debris that could interfere with its operation.
- Proper Installation: Ensure the sensor is installed correctly, following the manufacturer's guidelines to avoid any installation-related issues.
🛠️ Note: Always refer to the manufacturer's guidelines for specific calibration and maintenance procedures to ensure the sensor's longevity and accuracy.
Future Trends in Pressure Detection Sensors
The field of Pressure Detection Sensors is continually evolving, driven by advancements in technology and increasing demand for precision and reliability. Some of the emerging trends include:
- Miniaturization: The development of smaller, more compact sensors that can be integrated into a wide range of devices, from wearable technology to IoT applications.
- Wireless Connectivity: The integration of wireless communication capabilities, allowing sensors to transmit data remotely and enabling real-time monitoring and control.
- Advanced Materials: The use of new materials, such as graphene and other nanomaterials, to enhance the sensitivity, durability, and accuracy of sensors.
- AI and Machine Learning: The application of artificial intelligence and machine learning algorithms to analyze sensor data, providing insights and predictive maintenance capabilities.
These trends are poised to revolutionize the way Pressure Detection Sensors are used, opening up new possibilities for innovation and application in various industries.
Case Studies: Real-World Applications of Pressure Detection Sensors
To illustrate the practical applications of Pressure Detection Sensors, let's explore a few case studies:
Industrial Automation
In a manufacturing plant, Pressure Detection Sensors are used to monitor the pressure in hydraulic systems. These sensors ensure that the machinery operates within safe pressure limits, preventing equipment failure and downtime. By integrating these sensors with a control system, the plant can automate the adjustment of pressure levels, optimizing performance and efficiency.
Automotive Industry

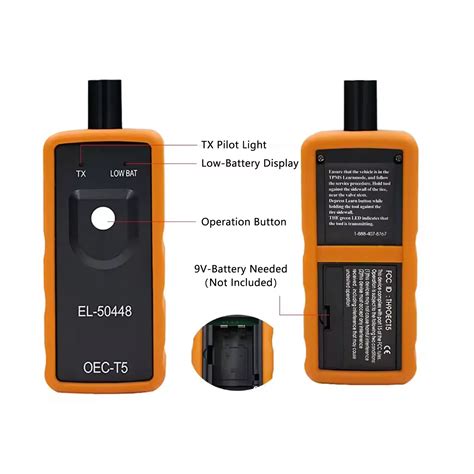

In the automotive sector, Pressure Detection Sensors are essential for monitoring tire pressure. These sensors provide real-time data to the vehicle's onboard computer, alerting the driver to any pressure issues and ensuring safe driving conditions. Additionally, these sensors help in maintaining optimal fuel efficiency and tire longevity.
Medical Devices
In healthcare, Pressure Detection Sensors are used in blood pressure monitors to provide accurate readings. These sensors are designed to be highly sensitive and reliable, ensuring that patients receive the correct diagnosis and treatment. The integration of these sensors in wearable devices allows for continuous monitoring, enabling early detection of health issues.
Consumer Electronics
In consumer electronics, Pressure Detection Sensors are used in smartwatches to monitor blood pressure. These sensors provide users with real-time data, helping them track their health and make informed decisions. The compact size and low power consumption of these sensors make them ideal for integration into wearable devices.
These case studies highlight the diverse applications of Pressure Detection Sensors and their impact on various industries.
In conclusion, Pressure Detection Sensors are indispensable components in modern technology, playing a crucial role in industrial automation, automotive, medical, and consumer electronics. Understanding their types, applications, key features, and maintenance requirements is essential for leveraging their full potential. As technology continues to advance, the future of Pressure Detection Sensors holds exciting possibilities, driven by miniaturization, wireless connectivity, advanced materials, and AI integration. These innovations will further enhance the accuracy, reliability, and versatility of these sensors, opening up new opportunities for innovation and application across various fields.
