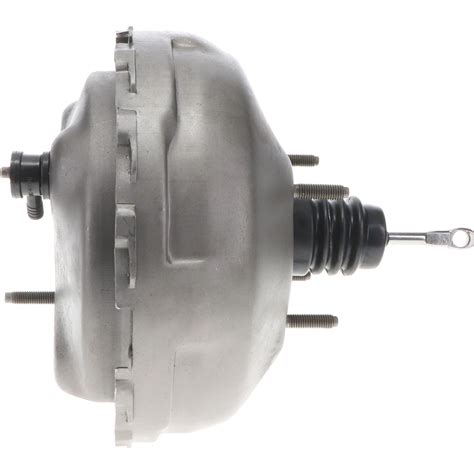

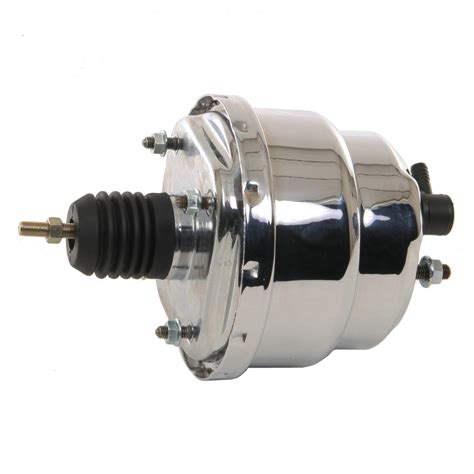

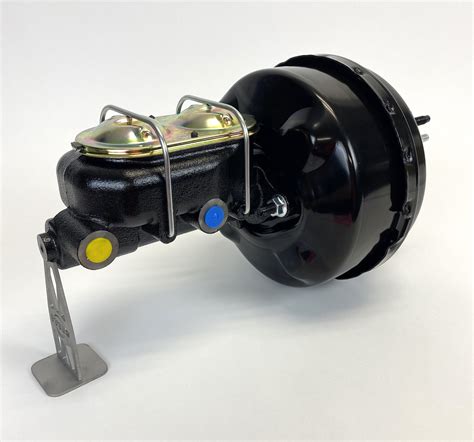

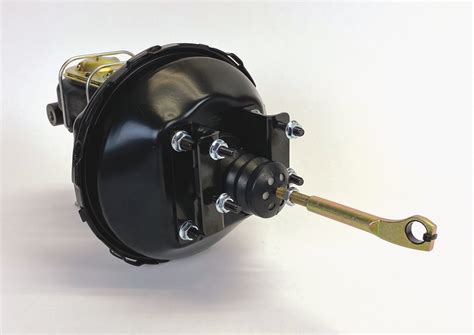

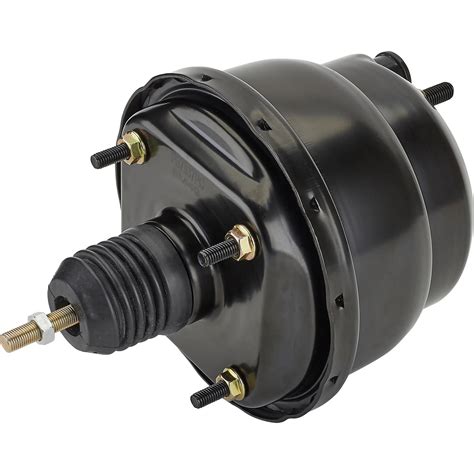

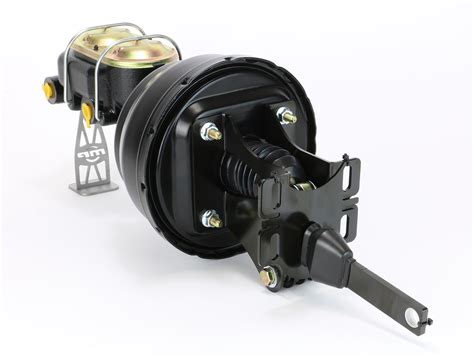

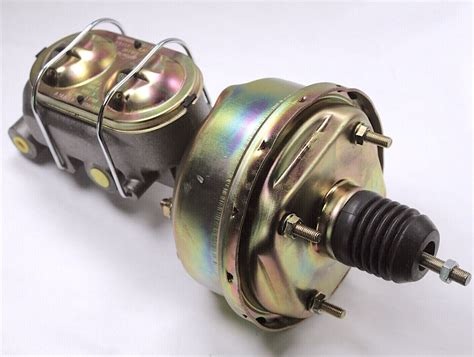

Power Brake Booster

Understanding the intricacies of your vehicle's braking system is crucial for maintaining safety and performance. One of the key components in modern braking systems is the Power Brake Booster. This device amplifies the force applied to the brake pedal, making it easier to stop the vehicle efficiently. In this post, we will delve into the workings of the Power Brake Booster, its importance, common issues, and maintenance tips to keep your braking system in top condition.

Table of Contents

What is a Power Brake Booster?

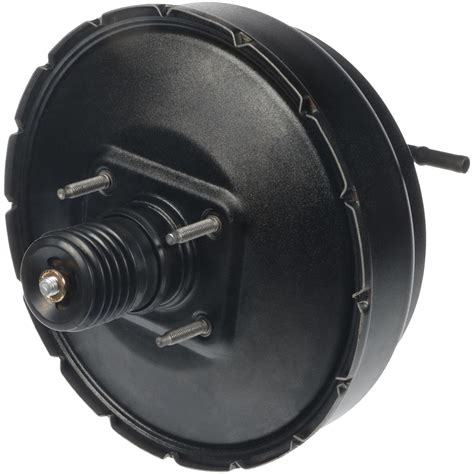

The Power Brake Booster is a vacuum-assisted device that enhances the braking force applied by the driver. It is typically located between the brake pedal and the master cylinder. The booster uses engine vacuum or, in some cases, an electric motor to multiply the force exerted on the brake pedal, reducing the effort required to stop the vehicle. This is particularly important in larger vehicles or those with heavy loads, where the braking force needed is significantly higher.

How Does a Power Brake Booster Work?

The Power Brake Booster operates on the principle of vacuum assistance. Here’s a step-by-step breakdown of its functioning:

Vacuum Creation: The engine creates a vacuum, which is then directed to the booster through a vacuum hose.
Pedal Application: When the driver presses the brake pedal, a pushrod inside the booster moves forward.
Vacuum Release: This movement releases the vacuum seal, allowing atmospheric pressure to push against a diaphragm inside the booster.
Force Amplification: The diaphragm amplifies the force applied to the brake pedal, transmitting a much greater force to the master cylinder.
Brake Application: The master cylinder then converts this amplified force into hydraulic pressure, which is sent to the brake calipers or wheel cylinders to apply the brakes.

This process ensures that the driver can apply the brakes with less effort, making the braking system more responsive and effective.

Importance of the Power Brake Booster

The Power Brake Booster plays a vital role in the overall performance and safety of your vehicle. Here are some key reasons why it is important:

Reduced Pedal Effort: By amplifying the force applied to the brake pedal, the booster makes it easier for the driver to stop the vehicle, especially in emergency situations.
Improved Braking Performance: The booster ensures that the brakes are applied with sufficient force, enhancing the vehicle's stopping power and reducing braking distance.
Safety: A well-functioning Power Brake Booster is crucial for maintaining the safety of the vehicle, as it ensures that the brakes respond promptly and effectively.
Fuel Efficiency: In some modern vehicles, the booster can be electrically assisted, which can improve fuel efficiency by reducing the engine's workload.

Common Issues with Power Brake Boosters

Despite their reliability, Power Brake Boosters can develop issues over time. Some common problems include:

Vacuum Leaks: Leaks in the vacuum hose or booster itself can reduce the vacuum pressure, leading to a spongy or hard brake pedal.
Diaphragm Failure: The diaphragm inside the booster can wear out or tear, causing a loss of vacuum assistance and reduced braking performance.
Check Valve Issues: The check valve, which maintains vacuum pressure in the booster, can fail, leading to a loss of vacuum assistance.
Master Cylinder Problems: Issues with the master cylinder can sometimes be mistaken for booster problems, as both components work together to apply the brakes.

If you notice any of these issues, it is important to have your vehicle inspected by a professional mechanic to diagnose and fix the problem.

Maintenance Tips for Power Brake Boosters

Regular maintenance of the Power Brake Booster can help prevent issues and ensure optimal performance. Here are some tips to keep your booster in good condition:

Inspect Vacuum Hoses: Regularly check the vacuum hoses for any signs of wear, cracks, or leaks. Replace them if necessary.
Check for Leaks: Listen for any hissing sounds when the engine is running, which could indicate a vacuum leak.
Test Brake Pedal: Ensure that the brake pedal feels firm and responsive. A spongy or hard pedal could indicate a problem with the booster.
Replace Diaphragm: If the diaphragm is worn out or damaged, replace it promptly to maintain vacuum assistance.
Regular Inspections: Have your vehicle's braking system inspected regularly by a professional mechanic to catch any potential issues early.

🛠️ Note: Always use high-quality replacement parts for your Power Brake Booster to ensure reliability and performance.

Diagnosing Power Brake Booster Issues

Diagnosing issues with the Power Brake Booster can be straightforward if you know what to look for. Here are some steps to help you identify potential problems:

Visual Inspection: Check the booster and vacuum hoses for any visible signs of damage or leaks.
Pedal Feel: Pay attention to how the brake pedal feels. A spongy or hard pedal could indicate a problem with the booster.
Vacuum Test: Use a vacuum gauge to check the vacuum pressure in the booster. A significant drop in pressure could indicate a leak or other issue.
Professional Diagnosis: If you are unsure about the cause of the problem, consult a professional mechanic for a thorough diagnosis.

By following these steps, you can identify and address issues with your Power Brake Booster before they become major problems.

Replacing a Power Brake Booster

If your Power Brake Booster is beyond repair, you may need to replace it. Here is a general guide to replacing a Power Brake Booster:

Gather Tools and Parts: You will need a new booster, a socket set, wrenches, and possibly a brake bleeder kit.
Disconnect Battery: Always disconnect the negative terminal of the battery to prevent any electrical issues.
Remove Old Booster: Disconnect the vacuum hose and brake lines from the old booster. Remove the mounting bolts and take out the old booster.
Install New Booster: Place the new booster in position and secure it with the mounting bolts. Reconnect the vacuum hose and brake lines.
Bleed Brakes: Bleed the brake system to remove any air that may have entered during the replacement process.
Test Brakes: Test the brakes to ensure they are working properly before driving the vehicle.

🛠️ Note: Always follow the manufacturer's instructions for replacing the Power Brake Booster to ensure proper installation and safety.

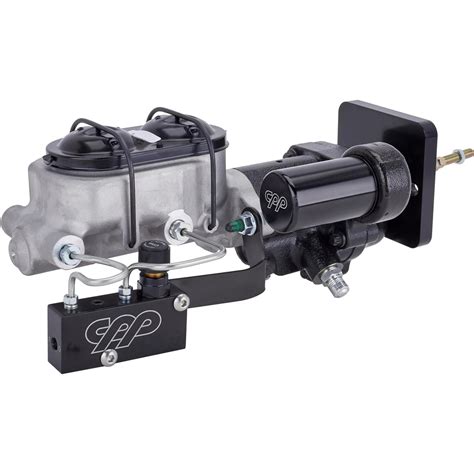

Electric Power Brake Boosters

In addition to vacuum-assisted boosters, some modern vehicles use electric Power Brake Boosters. These systems use an electric motor to amplify the braking force, providing several advantages:

Improved Fuel Efficiency: Electric boosters reduce the engine's workload, improving fuel efficiency.
Consistent Performance: Electric boosters provide consistent performance regardless of engine RPM, ensuring reliable braking.
Enhanced Safety Features: Electric boosters can be integrated with advanced safety systems, such as automatic emergency braking and adaptive cruise control.

Electric Power Brake Boosters are becoming more common in modern vehicles, offering improved performance and efficiency.

Conclusion

The Power Brake Booster is a critical component of your vehicle’s braking system, enhancing safety and performance by amplifying the force applied to the brake pedal. Understanding how it works, recognizing common issues, and performing regular maintenance can help ensure that your braking system remains reliable and effective. Whether you have a vacuum-assisted or electric booster, keeping it in good condition is essential for the overall safety and performance of your vehicle.
