Post and beam framing is a traditional construction method that has been used for centuries to create strong, durable structures. This method involves the use of vertical posts and horizontal beams to support the weight of a building. Unlike modern stick framing, which relies on smaller, more numerous studs, post and beam framing uses larger, more widely spaced structural members. This results in a building that is not only sturdy but also aesthetically pleasing, with exposed beams and posts adding a rustic charm to the interior and exterior.
Understanding Post and Beam Framing
Post and beam framing is a construction technique that has stood the test of time. It is characterized by the use of large, heavy timbers that are carefully joined together to form the structural framework of a building. The vertical members, known as posts, are typically made from solid wood and are spaced at intervals of 4 to 8 feet. These posts are then connected by horizontal beams, which distribute the weight of the roof and upper floors evenly across the structure.
One of the key advantages of post and beam framing is its flexibility. This method allows for a wide range of design possibilities, from traditional to modern, and can be adapted to various architectural styles. The exposed beams and posts can be left visible, adding a unique character to the building, or they can be covered with drywall or other finishes for a more conventional look.
Materials Used in Post and Beam Framing
The choice of materials is crucial in post and beam framing. Traditionally, solid wood timbers were used, but modern construction often employs engineered wood products or even steel for certain applications. Here are some common materials used in post and beam framing:
- Solid Wood Timbers: These are the traditional choice for post and beam framing. Common species include Douglas fir, hemlock, and oak, which are known for their strength and durability.
- Engineered Wood Products: These include laminated veneer lumber (LVL) and glued laminated timber (glulam), which are manufactured by bonding layers of wood together to create a stronger, more stable material.

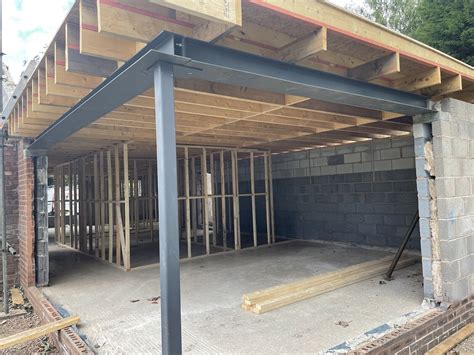

- Steel: In some cases, steel beams and posts may be used, especially in commercial or industrial buildings where extra strength and fire resistance are required.
Design Considerations for Post and Beam Framing
When designing a building using post and beam framing, several factors need to be considered to ensure structural integrity and aesthetic appeal. These include:
- Load Bearing: The posts and beams must be able to support the weight of the roof, floors, and any additional loads such as snow or wind. Proper engineering calculations are essential to determine the size and spacing of the structural members.
- Joinery: The way the posts and beams are joined together is critical. Traditional joinery methods, such as mortise and tenon or dovetail joints, are often used for their strength and durability. Modern construction may also employ metal connectors or bolts for added stability.
- Aesthetics: The exposed nature of post and beam framing means that the design of the structural members can significantly impact the overall look of the building. Careful consideration should be given to the size, shape, and finish of the timbers to achieve the desired aesthetic.
Advantages of Post and Beam Framing
Post and beam framing offers several advantages over other construction methods. Some of the key benefits include:
- Strength and Durability: The use of large, solid timbers or engineered wood products results in a structure that is exceptionally strong and durable. This makes post and beam framing ideal for buildings that need to withstand heavy loads or harsh environmental conditions.
- Flexibility in Design: The wide spacing of the posts and beams allows for greater flexibility in design. This method can accommodate a variety of architectural styles and can be adapted to create open floor plans or unique structural features.
- Aesthetic Appeal: The exposed beams and posts add a rustic, timeless charm to the building. This can enhance the overall aesthetic appeal and create a warm, inviting atmosphere.
- Energy Efficiency: Post and beam framing can be more energy-efficient than other methods. The wide spacing of the structural members allows for better insulation, reducing heating and cooling costs.
Disadvantages of Post and Beam Framing
While post and beam framing has many advantages, it also has some potential drawbacks. These include:
- Cost: The use of large, solid timbers or engineered wood products can be more expensive than smaller, more numerous studs used in stick framing. Additionally, the labor required to join the timbers together can add to the overall cost.
- Complexity: Post and beam framing requires more skill and expertise than other construction methods. The precise cutting and joining of the timbers can be challenging and time-consuming.
- Maintenance: Exposed wood timbers may require regular maintenance to protect them from moisture, pests, and other environmental factors. This can include periodic sealing, staining, or painting.
Post and Beam Framing vs. Stick Framing
When comparing post and beam framing to stick framing, several key differences become apparent. Stick framing, also known as platform framing, is a more modern construction method that uses smaller, more numerous studs spaced at regular intervals. Here is a comparison of the two methods:
| Aspect | Post and Beam Framing | Stick Framing |
|---|---|---|
| Structural Members | Large, widely spaced timbers | Smaller, closely spaced studs |
| Strength | Exceptionally strong and durable | Strong but less durable |
| Design Flexibility | High flexibility, suitable for various architectural styles | Less flexible, more standardized design |
| Aesthetic Appeal | Exposed beams and posts add rustic charm | Typically covered with drywall or other finishes |
| Cost | Generally more expensive | Generally less expensive |
| Complexity | Requires more skill and expertise | Easier and faster to construct |
While stick framing is often more cost-effective and quicker to construct, post and beam framing offers superior strength, durability, and aesthetic appeal. The choice between the two methods will depend on the specific needs and preferences of the builder and the intended use of the building.
📝 Note: The choice between post and beam framing and stick framing should be based on a thorough evaluation of the project's requirements, budget, and design goals.
Steps to Build a Post and Beam Structure
Building a post and beam structure involves several key steps. Here is a general overview of the process:
- Design and Planning: The first step is to create a detailed design and plan for the structure. This includes determining the size and spacing of the posts and beams, as well as the overall layout of the building.
- Site Preparation: Prepare the site by clearing the land, leveling the ground, and laying the foundation. This may involve excavating for a basement or crawl space, pouring concrete footings, and installing drainage systems.
- Foundation Construction: Construct the foundation, which will support the weight of the posts and beams. This typically involves pouring concrete walls or footings and installing anchor bolts to secure the posts.
- Post Installation: Install the vertical posts, ensuring they are plumb and level. The posts should be securely anchored to the foundation using bolts or other fasteners.
- Beam Installation: Install the horizontal beams, connecting them to the posts using traditional joinery methods or modern connectors. The beams should be level and properly aligned to distribute the weight evenly.
- Roof Framing: Frame the roof, using rafters or trusses that are supported by the beams. Ensure that the roof is properly ventilated and insulated to prevent moisture buildup and energy loss.
- Exterior and Interior Finishing: Complete the exterior and interior finishing, including siding, roofing, insulation, drywall, and flooring. This step will depend on the specific design and aesthetic goals of the project.
📝 Note: It is essential to follow local building codes and regulations when constructing a post and beam structure. Consulting with a professional engineer or architect can help ensure that the design and construction meet all necessary standards.
Common Applications of Post and Beam Framing
Post and beam framing is used in a variety of applications, from residential homes to commercial buildings. Some common uses include:
- Residential Homes: Post and beam framing is often used in the construction of custom homes, log cabins, and other residential structures. The exposed beams and posts add a rustic, timeless charm to the interior and exterior.
- Commercial Buildings: This method is also used in the construction of commercial buildings, such as offices, retail spaces, and warehouses. The strength and durability of post and beam framing make it ideal for structures that need to withstand heavy loads or harsh environmental conditions.
- Barns and Outbuildings: Post and beam framing is a popular choice for barns, sheds, and other outbuildings. The wide spacing of the structural members allows for large, open spaces that are ideal for storage or livestock.
- Historic Restoration: This method is often used in the restoration of historic buildings. The traditional joinery techniques and exposed timbers can help preserve the original character and aesthetic of the structure.
Post and beam framing is a versatile construction method that can be adapted to a wide range of applications. Its strength, durability, and aesthetic appeal make it a popular choice for builders and architects alike.
📝 Note: When using post and beam framing for historic restoration, it is important to consult with preservation experts to ensure that the original character and integrity of the building are maintained.
Maintenance and Care for Post and Beam Structures
To ensure the longevity and performance of a post and beam structure, regular maintenance and care are essential. Here are some tips for maintaining a post and beam building:
- Inspect Regularly: Conduct regular inspections of the structure to check for signs of wear, damage, or pests. Pay particular attention to the joints and connections between the posts and beams.
- Protect from Moisture: Ensure that the structure is properly sealed and protected from moisture. This may involve applying waterproofing sealants, installing gutters and downspouts, and maintaining proper drainage around the foundation.
- Prevent Pests: Take steps to prevent pests, such as termites and carpenter ants, from infesting the wood timbers. This may include treating the wood with insecticides, installing barriers, and removing potential food sources.
- Maintain Finishes: Regularly maintain the finishes on the exposed wood timbers, such as staining, sealing, or painting. This will help protect the wood from UV damage, moisture, and other environmental factors.
By following these maintenance tips, you can help ensure that your post and beam structure remains strong, durable, and aesthetically pleasing for many years to come.
📝 Note: Regular maintenance is crucial for the longevity of a post and beam structure. Neglecting maintenance can lead to costly repairs and potential structural issues.
Post and beam framing is a time-honored construction method that offers numerous benefits, including strength, durability, and aesthetic appeal. Whether used in residential homes, commercial buildings, or historic restorations, this method provides a solid foundation for a variety of structures. By understanding the key aspects of post and beam framing, including materials, design considerations, and maintenance requirements, builders and architects can create structures that are not only functional but also beautiful and enduring.
