Porosity Of Welding

Welding is a critical process in various industries, from construction to manufacturing, ensuring the integrity and strength of structures and components. One of the key factors that determine the quality and durability of a weld is the porosity of welding. Porosity refers to the presence of small holes or voids within the weld metal, which can significantly impact the weld's mechanical properties and overall performance.

Table of Contents

Understanding Porosity in Welding

Porosity in welding can occur due to several reasons, including the presence of contaminants, improper shielding gas, or incorrect welding parameters. These voids can weaken the weld, making it more susceptible to cracking and failure under stress. Understanding the causes and effects of porosity is essential for welders and engineers to ensure high-quality welds.

Causes of Porosity in Welding

Porosity in welding can be attributed to various factors. Some of the most common causes include:

Contaminants: The presence of contaminants such as oil, grease, or moisture on the base metal or filler material can lead to porosity. These contaminants can release gases during the welding process, forming voids in the weld.
Shielding Gas Issues: Inadequate shielding gas flow or the use of contaminated shielding gas can result in porosity. Shielding gas is crucial for protecting the weld pool from atmospheric gases that can cause porosity.
Welding Parameters: Incorrect welding parameters, such as voltage, current, and travel speed, can also contribute to porosity. For example, excessive voltage can cause the weld pool to become too hot, leading to the formation of voids.
Base Metal Composition: The composition of the base metal can affect the porosity of the weld. Certain alloys are more prone to porosity due to their chemical composition.

Effects of Porosity on Weld Quality

Porosity can have several detrimental effects on the quality and performance of a weld. Some of the key effects include:

Reduced Strength: The presence of voids in the weld metal can significantly reduce its strength, making it more susceptible to failure under load.
Increased Risk of Cracking: Porosity can act as stress concentrators, increasing the risk of cracking in the weld. This is particularly problematic in applications where the weld is subjected to cyclic loading.
Corrosion Susceptibility: Porosity can create pathways for corrosive agents to penetrate the weld, leading to accelerated corrosion and reduced service life.
Aesthetic Issues: Porosity can also affect the appearance of the weld, making it less aesthetically pleasing. This is particularly important in applications where the weld is visible.

Preventing Porosity in Welding

Preventing porosity in welding involves a combination of proper preparation, correct welding techniques, and appropriate equipment. Here are some strategies to minimize porosity:

Cleanliness: Ensure that the base metal and filler material are clean and free of contaminants. Use solvents or wire brushes to remove oil, grease, and other contaminants.
Shielding Gas: Use high-quality shielding gas and ensure that the flow rate is adequate. Check for leaks in the gas delivery system and replace contaminated gas cylinders.
Welding Parameters: Optimize welding parameters such as voltage, current, and travel speed. Follow manufacturer recommendations for the specific welding process and material.
Preheating: Preheat the base metal to drive off moisture and reduce the risk of porosity. This is particularly important for materials that are prone to porosity.
Post-Weld Treatment: Apply post-weld treatments such as peening or shot blasting to reduce residual stresses and improve the weld's mechanical properties.

🔍 Note: Always refer to the specific welding procedure specifications (WPS) for the material and process being used to ensure optimal results.

Types of Porosity in Welding

Porosity in welding can be classified into different types based on their appearance and causes. Understanding these types can help in identifying the root cause and implementing appropriate corrective actions.

Type of Porosity	Description	Causes
Scattered Porosity	Small, isolated voids distributed throughout the weld.	Contaminants, inadequate shielding gas, or incorrect welding parameters.
Cluster Porosity	Groups of voids clustered together in specific areas of the weld.	Contaminants or moisture in the base metal or filler material.
Wormhole Porosity	Elongated voids that resemble wormholes.	Inadequate shielding gas or high welding speeds.
Piping Porosity	Large, elongated voids that run parallel to the weld surface.	Excessive welding speed or inadequate shielding gas.

Inspection and Testing for Porosity

Regular inspection and testing are essential to detect and evaluate porosity in welds. Various non-destructive testing (NDT) methods can be used to identify porosity without damaging the weld. Some common NDT methods include:

Radiographic Testing (RT): Uses X-rays or gamma rays to produce an image of the weld, revealing internal defects such as porosity.
Ultrasonic Testing (UT): Uses high-frequency sound waves to detect internal defects by measuring the reflection of sound waves within the weld.
Magnetic Particle Testing (MT): Detects surface and near-surface defects by applying a magnetic field to the weld and observing the pattern of magnetic particles.
Liquid Penetrant Testing (PT): Detects surface-breaking defects by applying a liquid penetrant to the weld and observing the penetration pattern.

In addition to NDT methods, destructive testing can also be performed to evaluate the porosity of welds. Destructive testing involves cutting or breaking the weld to examine its internal structure. Common destructive testing methods include:

Macro Examination: Involves cutting the weld and polishing the cross-section to reveal internal defects.
Micro Examination: Involves cutting a small sample from the weld and examining it under a microscope to identify and measure porosity.
Tensile Testing: Measures the strength of the weld by applying a tensile load until failure.

🔍 Note: Always follow safety protocols when performing inspection and testing to ensure the safety of personnel and equipment.

Case Studies on Porosity in Welding

Several case studies highlight the importance of addressing porosity in welding to ensure the integrity and performance of welded structures. One notable case involves the failure of a critical component in an industrial application due to porosity. The component, a pressure vessel, failed catastrophically, leading to significant damage and downtime. An investigation revealed that the failure was due to extensive porosity in the weld, which had gone undetected during initial inspections. The root cause was traced back to inadequate shielding gas and contaminated base metal. Corrective actions included improving the cleaning process, using high-quality shielding gas, and implementing more rigorous inspection protocols.

Another case study involved a welding project in the construction industry, where porosity was detected in the welds of a steel bridge. The porosity was attributed to high welding speeds and inadequate shielding gas flow. The project team implemented corrective actions, including reducing welding speeds and optimizing shielding gas parameters. Post-correction inspections confirmed that the porosity had been eliminated, ensuring the structural integrity of the bridge.

These case studies underscore the importance of addressing porosity in welding to prevent failures and ensure the reliability of welded structures.

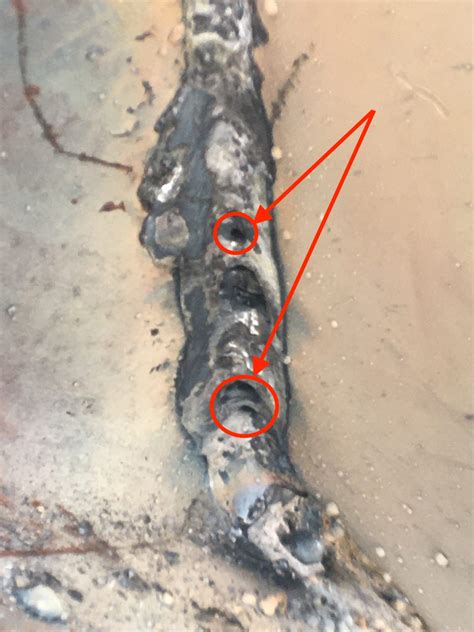

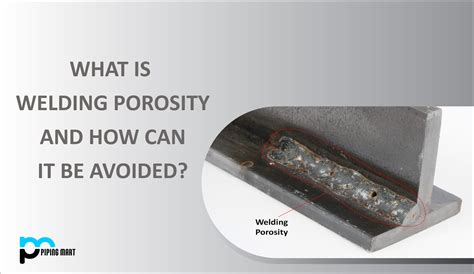

In the image below, you can see an example of porosity in a weld. The dark spots indicate the presence of voids within the weld metal.

Advanced Techniques for Minimizing Porosity

In addition to the basic strategies for preventing porosity, advanced techniques can be employed to further minimize its occurrence. These techniques often involve specialized equipment and processes designed to enhance weld quality. Some advanced techniques include:

Pulsed Welding: Uses a pulsed current to control the heat input and reduce the risk of porosity. This technique is particularly effective for thin materials and critical applications.
Hot Wire Welding: Involves preheating the filler wire to reduce the risk of porosity. This technique is commonly used in high-speed welding applications.
Laser Welding: Uses a high-energy laser beam to melt the base metal and filler material, resulting in a highly controlled and precise weld. Laser welding can minimize porosity by reducing the heat-affected zone and controlling the cooling rate.
Electron Beam Welding: Uses a focused beam of electrons to melt the base metal and filler material. This technique is particularly effective for welding thick sections and high-strength materials, as it minimizes porosity and distortion.

These advanced techniques require specialized equipment and expertise, but they can significantly enhance weld quality and reduce the risk of porosity.

🔍 Note: Always consult with welding experts and follow manufacturer recommendations when implementing advanced welding techniques.

In conclusion, understanding and addressing the porosity of welding is crucial for ensuring the quality and performance of welded structures. By identifying the causes of porosity, implementing preventive measures, and employing advanced techniques, welders and engineers can minimize porosity and enhance the integrity of welds. Regular inspection and testing are essential to detect and evaluate porosity, ensuring that welded structures meet the required standards and perform reliably under various conditions.
