Understanding the concept of a point charge E field is fundamental in the study of electromagnetism. A point charge is an idealized concept where all the charge is concentrated at a single point in space, and the electric field it generates can be described using Coulomb's law. This law states that the electric field (E) at a distance (r) from a point charge (q) is directly proportional to the charge and inversely proportional to the square of the distance. This relationship is crucial for analyzing more complex systems and understanding the behavior of electric fields in various scenarios.
Understanding Point Charges and Electric Fields
A point charge is a theoretical construct where the charge is considered to be concentrated at a single point with no spatial extent. In reality, charges are distributed over some volume, but for many practical purposes, treating them as point charges simplifies calculations and provides accurate results. The electric field generated by a point charge is a vector field that describes the force per unit charge that would be experienced by a test charge placed at that point.
The electric field (E) due to a point charge (q) at a distance (r) is given by:
E = k * (q / r^2)
where k is Coulomb's constant (k ≈ 8.99 × 10^9 N m^2/C^2). This equation shows that the electric field strength decreases rapidly with distance, following an inverse-square law.
Coulomb's Law and the Electric Field
Coulomb's law is the foundation for understanding the point charge E field. It states that the force (F) between two point charges (q1 and q2) separated by a distance (r) is given by:
F = k * (q1 * q2 / r^2)
This force is along the line joining the two charges and is attractive if the charges are of opposite signs and repulsive if they are of the same sign. The electric field at a point is defined as the force per unit charge that would be experienced by a test charge placed at that point. Therefore, the electric field due to a point charge can be derived from Coulomb's law by considering the force on a test charge (q0) placed at a distance (r) from the point charge (q):
E = F / q0 = k * (q / r^2)
Superposition Principle
The superposition principle is a powerful tool for calculating the electric field due to multiple point charges. According to this principle, the total electric field at a point is the vector sum of the electric fields due to each individual charge. This means that if there are multiple point charges (q1, q2, q3, ..., qn) at distances (r1, r2, r3, ..., rn) from a point, the total electric field (E_total) at that point is given by:
E_total = E1 + E2 + E3 + ... + En
where Ei = k * (qi / ri^2) for each charge qi.
This principle allows for the calculation of electric fields in complex systems by breaking them down into simpler components.
Electric Field Lines

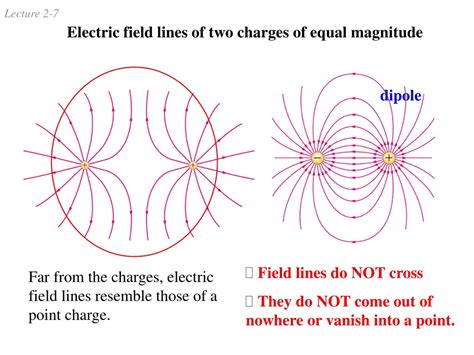

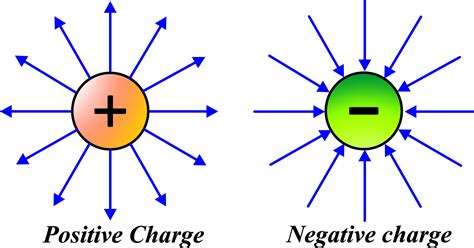

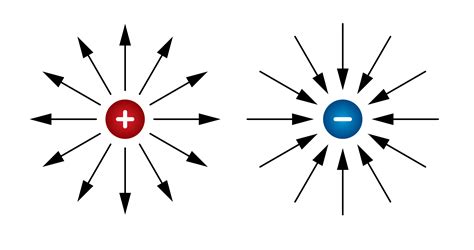

Electric field lines are a visual representation of the electric field around a point charge. They provide a qualitative understanding of the direction and strength of the electric field. For a positive point charge, the field lines radiate outward, indicating that the electric field points away from the charge. For a negative point charge, the field lines point inward, indicating that the electric field points toward the charge.
The density of field lines is proportional to the strength of the electric field. In regions where the field is stronger, the field lines are closer together, and in regions where the field is weaker, the field lines are farther apart. This visualization helps in understanding the behavior of electric fields in different scenarios.
Electric Field Due to Multiple Point Charges
When dealing with multiple point charges, the electric field at any point is the vector sum of the electric fields due to each individual charge. This can be calculated using the superposition principle. For example, consider two point charges q1 and q2 separated by a distance d. The electric field at a point P due to these charges can be calculated as follows:
E_total = E1 + E2
where E1 = k * (q1 / r1^2) and E2 = k * (q2 / r2^2), and r1 and r2 are the distances from q1 and q2 to point P, respectively.
This calculation can be extended to any number of point charges by summing the electric fields due to each charge.
Applications of Point Charge E Field
The concept of a point charge E field has numerous applications in physics and engineering. Some of the key areas where this concept is applied include:
- Electrostatics: Understanding the electric field due to point charges is fundamental in the study of electrostatics, which deals with the behavior of charges at rest.
- Electronics: In electronics, the electric field due to point charges is used to analyze the behavior of capacitors, resistors, and other components.
- Particle Accelerators: In particle accelerators, the electric field due to point charges is used to accelerate particles to high energies.
- Astrophysics: In astrophysics, the electric field due to point charges is used to study the behavior of charged particles in space, such as in the solar wind and interstellar medium.
These applications highlight the importance of understanding the point charge E field in various fields of science and engineering.
Calculating the Electric Field Due to a Point Charge
To calculate the electric field due to a point charge, follow these steps:
- Identify the charge (q) and the distance (r) from the point charge to the point where the electric field is to be calculated.
- Use Coulomb's law to calculate the electric field:
E = k * (q / r^2)
where k is Coulomb's constant.
- Determine the direction of the electric field. For a positive charge, the electric field points away from the charge. For a negative charge, the electric field points toward the charge.
💡 Note: Ensure that the units are consistent when performing calculations. The charge should be in coulombs (C), the distance in meters (m), and the electric field in newtons per coulomb (N/C).
Example Calculation
Let's consider an example to illustrate the calculation of the electric field due to a point charge. Suppose we have a point charge of 2 μC (microcoulombs) and we want to find the electric field at a distance of 0.5 meters from the charge.
First, convert the charge to coulombs:
q = 2 μC = 2 × 10^-6 C
Next, use Coulomb's law to calculate the electric field:
E = k * (q / r^2) = (8.99 × 10^9 N m^2/C^2) * (2 × 10^-6 C / (0.5 m)^2)
E = 7.192 × 10^4 N/C
Therefore, the electric field at a distance of 0.5 meters from a 2 μC point charge is 7.192 × 10^4 N/C.
Electric Field Due to a Dipole
A dipole consists of two equal and opposite point charges separated by a small distance. The electric field due to a dipole can be calculated by considering the superposition of the electric fields due to the individual charges. The electric field due to a dipole at a point on the axis of the dipole (along the line joining the charges) is given by:
E = k * (2p / r^3)
where p is the dipole moment (p = q * d, where d is the distance between the charges) and r is the distance from the center of the dipole to the point where the electric field is to be calculated.
The electric field due to a dipole at a point perpendicular to the axis of the dipole (in the plane of the dipole) is given by:
E = k * (p / r^3)
These equations show that the electric field due to a dipole decreases more rapidly with distance than the electric field due to a point charge, following an inverse-cube law.
Electric Field Due to a Continuous Charge Distribution
For a continuous charge distribution, the electric field can be calculated by integrating the contributions from infinitesimal charge elements. The electric field due to a continuous charge distribution is given by:
E = ∫ (k * dq / r^2) * r̂
where dq is the infinitesimal charge element, r is the distance from the charge element to the point where the electric field is to be calculated, and r̂ is the unit vector in the direction from the charge element to the point.
This integral can be evaluated for various charge distributions, such as line charges, surface charges, and volume charges, to find the electric field at any point.
Electric Field Due to a Line Charge
A line charge is a continuous distribution of charge along a line. The electric field due to a line charge can be calculated by integrating the contributions from infinitesimal charge elements along the line. For an infinite line charge with a uniform charge density (λ), the electric field at a distance (r) from the line is given by:
E = (λ / (2πε0)) * (1 / r)
where ε0 is the permittivity of free space (ε0 ≈ 8.85 × 10^-12 C^2/N m^2). This equation shows that the electric field due to an infinite line charge decreases with distance, following an inverse law.
For a finite line charge, the electric field can be calculated by integrating the contributions from infinitesimal charge elements along the length of the line.
Electric Field Due to a Surface Charge
A surface charge is a continuous distribution of charge over a surface. The electric field due to a surface charge can be calculated by integrating the contributions from infinitesimal charge elements over the surface. For an infinite plane of charge with a uniform charge density (σ), the electric field at a distance (d) from the plane is given by:
E = σ / (2ε0)
This equation shows that the electric field due to an infinite plane of charge is constant and does not depend on the distance from the plane.
For a finite surface charge, the electric field can be calculated by integrating the contributions from infinitesimal charge elements over the surface.
Electric Field Due to a Volume Charge
A volume charge is a continuous distribution of charge throughout a volume. The electric field due to a volume charge can be calculated by integrating the contributions from infinitesimal charge elements throughout the volume. For a spherical volume charge with a uniform charge density (ρ), the electric field at a distance (r) from the center of the sphere is given by:
E = (ρ * r) / (3ε0)
for r ≤ R, where R is the radius of the sphere, and
E = (ρ * R^3) / (3ε0 * r^2)
for r > R. These equations show that the electric field due to a spherical volume charge is different inside and outside the sphere.
For other volume charge distributions, the electric field can be calculated by integrating the contributions from infinitesimal charge elements throughout the volume.
Electric Field Due to a Point Charge in a Dielectric Medium
When a point charge is placed in a dielectric medium, the electric field is modified by the polarization of the medium. The electric field due to a point charge in a dielectric medium is given by:
E = k * (q / (εr * r^2))
where εr is the relative permittivity of the dielectric medium. The relative permittivity is a measure of how much the electric field is reduced by the polarization of the medium. For example, for water (εr ≈ 80), the electric field due to a point charge is reduced by a factor of 80 compared to the electric field in a vacuum.
This modification is important in applications where charges are placed in dielectric materials, such as in capacitors and other electronic components.
Electric Field Due to a Point Charge in Motion
When a point charge is in motion, it generates both an electric field and a magnetic field. The electric field due to a moving point charge is given by:
E = k * (q / (r^2 + (v * t)^2))
where v is the velocity of the charge and t is the time. This equation shows that the electric field due to a moving point charge is modified by the motion of the charge. The magnetic field generated by the moving charge is given by the Biot-Savart law.
This modification is important in applications where charges are in motion, such as in particle accelerators and other high-energy physics experiments.
Electric Field Due to a Point Charge in an Accelerating Frame
When a point charge is in an accelerating frame, the electric field is modified by the acceleration of the frame. The electric field due to a point charge in an accelerating frame is given by:
E = k * (q / (r^2 + (a * t)^2))
where a is the acceleration of the frame and t is the time. This equation shows that the electric field due to a point charge in an accelerating frame is modified by the acceleration of the frame. This modification is important in applications where charges are in accelerating frames, such as in rotating frames and other non-inertial reference frames.
Understanding the point charge E field in various scenarios is crucial for analyzing complex systems and designing electronic components. The principles discussed in this post provide a foundation for further exploration and application in various fields of science and engineering.
In summary, the concept of a point charge E field is fundamental in electromagnetism. It is described by Coulomb’s law and can be extended to multiple charges using the superposition principle. The electric field due to a point charge has numerous applications in physics and engineering, from electrostatics to particle accelerators. Understanding the behavior of electric fields in different scenarios, such as in dielectric media and accelerating frames, is essential for analyzing complex systems and designing electronic components.
