Plotting A Bell Curve

Understanding and visualizing data distributions is a fundamental aspect of data analysis. One of the most common distributions encountered in statistics is the normal distribution, often represented by a bell curve. Plotting a bell curve can provide valuable insights into the central tendency, variability, and symmetry of a dataset. This guide will walk you through the process of plotting a bell curve, from understanding the basics to implementing it using Python.

Table of Contents

Understanding the Normal Distribution

The normal distribution, also known as the Gaussian distribution, is characterized by its bell-shaped curve. This distribution is symmetric around the mean, with data points clustering around the center and tapering off on either side. The key parameters of a normal distribution are the mean (μ) and the standard deviation (σ). The mean determines the center of the distribution, while the standard deviation measures the spread of the data.

Key properties of the normal distribution include:

The mean, median, and mode are all equal.
The curve is symmetric about the mean.
The total area under the curve is 1.
The empirical rule (68-95-99.7 rule) states that approximately 68% of the data falls within one standard deviation of the mean, 95% within two standard deviations, and 99.7% within three standard deviations.

Why Plot a Bell Curve?

Plotting a bell curve serves several purposes in data analysis:

Visualization: It provides a visual representation of the data distribution, making it easier to understand the central tendency and spread.
Identifying Outliers: By observing the curve, you can identify data points that deviate significantly from the mean, which may be outliers.
Comparing Distributions: Bell curves can be used to compare different datasets to see how they differ in terms of mean and variability.
Hypothesis Testing: In statistical hypothesis testing, the normal distribution is often assumed, and plotting a bell curve can help verify this assumption.

Steps to Plot a Bell Curve

To plot a bell curve, you need to follow a series of steps. These steps include generating or obtaining your data, calculating the mean and standard deviation, and then using a plotting library to create the curve. Below is a detailed guide using Python and the popular libraries NumPy and Matplotlib.

Step 1: Generate or Obtain Your Data

You can either generate synthetic data that follows a normal distribution or use an existing dataset. For this example, we will generate synthetic data.

Step 2: Calculate the Mean and Standard Deviation

These parameters are essential for plotting the bell curve. The mean (μ) is the average of the data points, and the standard deviation (σ) measures the amount of variation or dispersion.

Step 3: Plot the Bell Curve

Using Matplotlib, you can plot the bell curve. Below is a complete Python script to generate synthetic data, calculate the mean and standard deviation, and plot the bell curve.

💡 Note: Ensure you have NumPy and Matplotlib installed. You can install them using pip if you haven't already: pip install numpy matplotlib

Here is the Python code to plot a bell curve:

import numpy as np
import matplotlib.pyplot as plt
from scipy.stats import norm

# Step 1: Generate synthetic data
np.random.seed(0)  # For reproducibility
data = np.random.normal(loc=0, scale=1, size=1000)

# Step 2: Calculate the mean and standard deviation
mean = np.mean(data)
std_dev = np.std(data)

# Step 3: Plot the bell curve
plt.figure(figsize=(10, 6))
plt.hist(data, bins=30, density=True, alpha=0.6, color='g')

# Plot the PDF
xmin, xmax = plt.xlim()
x = np.linspace(xmin, xmax, 100)
p = norm.pdf(x, mean, std_dev)
plt.plot(x, p, 'k', linewidth=2)
title = "Plotting A Bell Curve: Mean = %.2f, Standard Deviation = %.2f" % (mean, std_dev)
plt.title(title)
plt.xlabel('Value')
plt.ylabel('Frequency')

plt.show()

Interpreting the Bell Curve

Once you have plotted the bell curve, you can interpret the data distribution based on the following aspects:

Mean: The peak of the curve represents the mean of the data. In a perfectly normal distribution, the mean, median, and mode are all the same.
Standard Deviation: The width of the curve indicates the standard deviation. A narrower curve means a smaller standard deviation, indicating that the data points are closely clustered around the mean. A wider curve means a larger standard deviation, indicating more spread in the data.
Symmetry: The curve should be symmetric around the mean. If it is not, it may indicate that the data is not normally distributed.
Outliers: Data points that fall far from the mean may be outliers. These can be identified by looking at the tails of the distribution.

Common Issues and Solutions

While plotting a bell curve, you might encounter some common issues. Here are a few and their solutions:

Non-Normal Data: If your data is not normally distributed, the bell curve may not accurately represent the data. In such cases, consider using other types of plots like histograms or box plots.
Small Sample Size: With a small sample size, the bell curve may not be smooth. Increasing the sample size can help smooth out the curve.
Incorrect Parameters: Ensure that the mean and standard deviation are calculated correctly. Incorrect parameters can lead to an inaccurate bell curve.

💡 Note: Always verify the assumptions of normality before plotting a bell curve. If the data does not follow a normal distribution, consider transforming the data or using non-parametric methods.

Advanced Techniques

For more advanced analysis, you can use additional techniques to enhance your bell curve plotting:

Kernel Density Estimation (KDE): KDE is a non-parametric way to estimate the probability density function of a random variable. It can provide a smoother curve compared to a histogram.
Q-Q Plot: A Q-Q plot (quantile-quantile plot) is used to compare the distribution of your data to a normal distribution. It can help you determine if your data is normally distributed.
Confidence Intervals: You can add confidence intervals to your bell curve to indicate the uncertainty in your estimates.

Here is an example of how to plot a KDE using Python:

import seaborn as sns

# Plot the KDE
sns.kdeplot(data, shade=True, color='b')
plt.title('Kernel Density Estimation (KDE)')
plt.xlabel('Value')
plt.ylabel('Density')
plt.show()

And here is an example of how to create a Q-Q plot:

import statsmodels.api as sm

# Create a Q-Q plot
sm.qqplot(data, line='s')
plt.title('Q-Q Plot')
plt.show()

Applications of Plotting A Bell Curve

Plotting a bell curve has numerous applications across various fields:

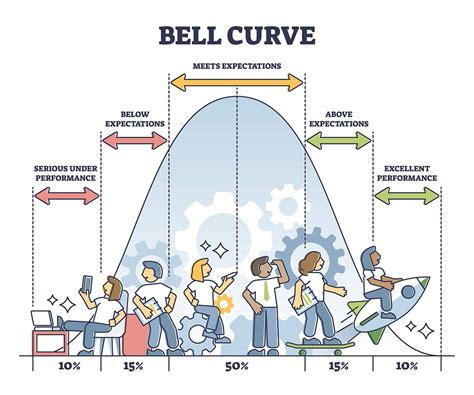

Education: Teachers can use bell curves to analyze student test scores and identify areas where students may need additional support.
Finance: Financial analysts use bell curves to model stock prices, interest rates, and other financial metrics.
Healthcare: Medical researchers use bell curves to analyze patient data, such as blood pressure readings or cholesterol levels.
Quality Control: In manufacturing, bell curves are used to monitor product quality and identify defects.

By understanding the distribution of data, professionals can make informed decisions and improve processes in their respective fields.

Plotting a bell curve is a powerful tool in data analysis that provides valuable insights into the distribution of data. By following the steps outlined in this guide, you can effectively plot a bell curve and interpret the results to gain a deeper understanding of your data. Whether you are a student, researcher, or professional, mastering the art of plotting a bell curve can enhance your analytical skills and help you make data-driven decisions.
