Plate Heat Exchanger

In the realm of industrial heat transfer, the Plate Heat Exchanger stands out as a highly efficient and versatile solution. These devices are widely used in various industries, including HVAC, food processing, chemical processing, and more. Their design and functionality make them ideal for applications where space is limited, and high heat transfer efficiency is required. This blog post delves into the intricacies of Plate Heat Exchangers, exploring their design, types, applications, advantages, and maintenance requirements.

Table of Contents

Understanding Plate Heat Exchangers

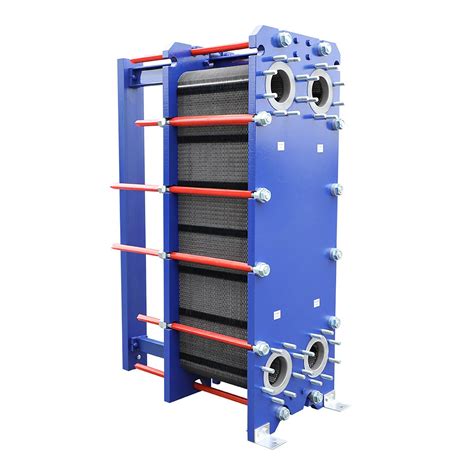

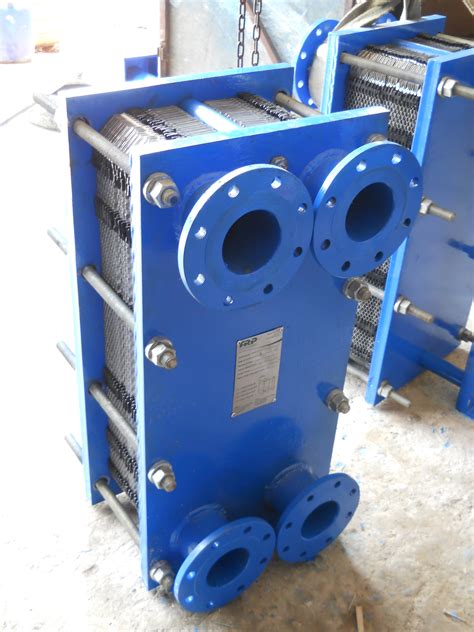

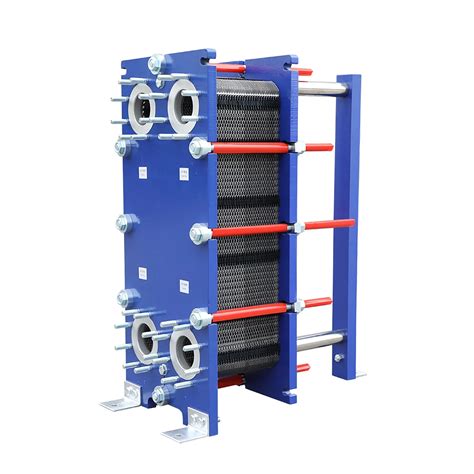

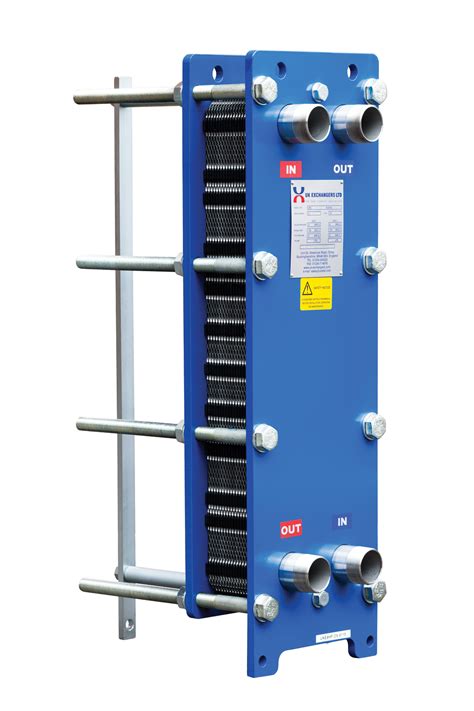

A Plate Heat Exchanger is a type of heat exchanger that uses metal plates to transfer heat between two fluids. This design is particularly effective because it maximizes the surface area available for heat transfer while minimizing the space required. The plates are typically made of stainless steel or other corrosion-resistant materials, ensuring durability and longevity.

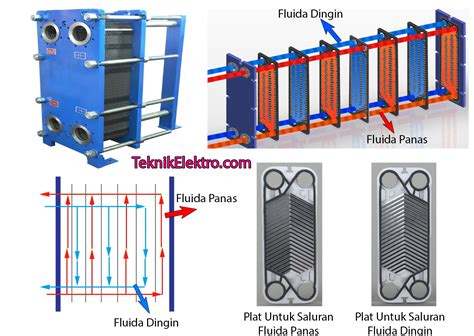

The basic principle behind a Plate Heat Exchanger is simple: two fluids flow through alternate channels created by the plates. Heat is transferred from the hot fluid to the cold fluid through the plates. The efficiency of this process is enhanced by the large surface area and the thin plates, which reduce the thermal resistance.

Design and Components

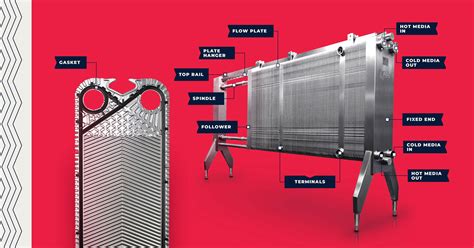

The design of a Plate Heat Exchanger is characterized by its compact and modular structure. The key components include:

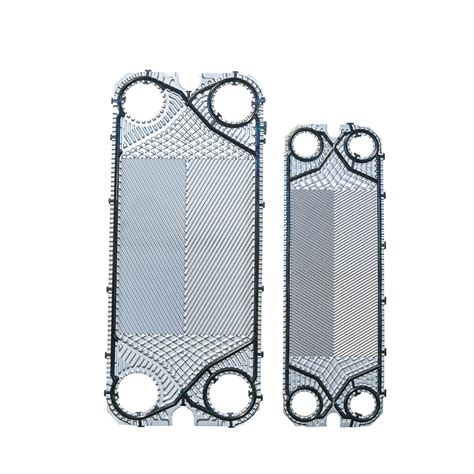

Plates: These are the core elements that facilitate heat transfer. They are typically corrugated to increase turbulence and enhance heat transfer efficiency.
Gaskets: These are used to seal the spaces between the plates, preventing fluid leakage and ensuring that the fluids flow through their designated channels.
Frame: The frame holds the plates together and provides structural support. It also includes ports for fluid inlet and outlet.
Clamping Mechanism: This ensures that the plates are tightly compressed, maintaining the integrity of the seals and the overall structure.

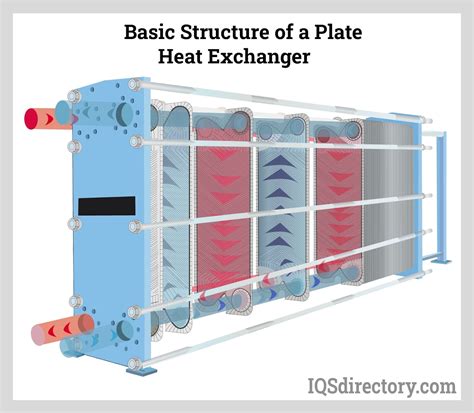

The plates are arranged in a stack, with each plate separated by a gasket. The fluids flow through alternate channels, ensuring that they do not mix but transfer heat efficiently.

Types of Plate Heat Exchangers

Plate Heat Exchangers come in various types, each designed for specific applications. The main types include:

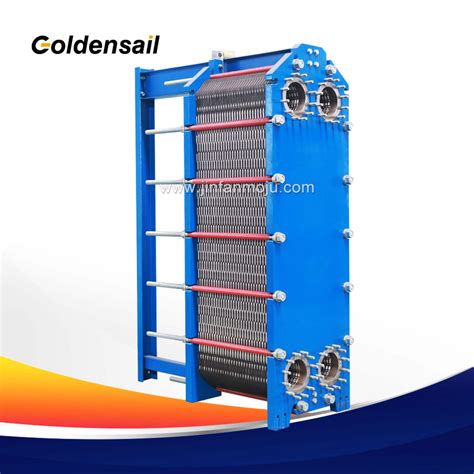

Gasketed Plate Heat Exchangers: These are the most common type, featuring gaskets to seal the spaces between the plates. They are easy to disassemble for cleaning and maintenance.
Welded Plate Heat Exchangers: In this type, the plates are welded together, eliminating the need for gaskets. This design is suitable for high-pressure applications but is more difficult to clean.
Brazed Plate Heat Exchangers: These are similar to welded Plate Heat Exchangers but use brazing instead of welding. They are ideal for applications involving corrosive fluids.

Each type has its advantages and is chosen based on the specific requirements of the application, including pressure, temperature, and fluid compatibility.

Applications of Plate Heat Exchangers

Plate Heat Exchangers are used in a wide range of industries due to their efficiency and versatility. Some of the key applications include:

HVAC Systems: They are used for heating and cooling purposes in buildings, ensuring efficient temperature control.
Food and Beverage Industry: Plate Heat Exchangers are used for pasteurization, sterilization, and cooling of food and beverages.
Chemical Processing: They are employed in chemical reactions that require precise temperature control.
Pharmaceutical Industry: Plate Heat Exchangers are used in the production of medicines and other pharmaceutical products, ensuring sterility and precision.
Power Generation: They are used in cooling systems for power plants, enhancing the efficiency of energy production.

In each of these applications, the Plate Heat Exchanger's ability to transfer heat efficiently and compactly makes it an invaluable component.

Advantages of Plate Heat Exchangers

The advantages of using Plate Heat Exchangers are numerous, making them a preferred choice in many industries. Some of the key benefits include:

High Efficiency: The large surface area and thin plates ensure efficient heat transfer, reducing energy consumption.
Compact Size: Plate Heat Exchangers are much smaller than other types of heat exchangers, saving space and reducing installation costs.
Flexibility: They can be easily customized to meet specific requirements, including different plate materials and configurations.
Easy Maintenance: Gasketed Plate Heat Exchangers can be disassembled for cleaning and maintenance, ensuring longevity and reliability.
Cost-Effective: The initial cost and operating costs are generally lower compared to other types of heat exchangers.

These advantages make Plate Heat Exchangers a cost-effective and efficient solution for various heat transfer applications.

Maintenance and Cleaning

Regular maintenance and cleaning are essential to ensure the optimal performance of a Plate Heat Exchanger. The maintenance process typically involves the following steps:

Inspection: Regularly inspect the plates, gaskets, and frame for any signs of wear, corrosion, or damage.
Cleaning: Clean the plates to remove any deposits or fouling that can reduce heat transfer efficiency. This can be done using chemical cleaning agents or mechanical methods.
Replacement of Gaskets: Replace worn-out gaskets to maintain the integrity of the seals and prevent fluid leakage.
Tightening of Bolts: Ensure that the bolts holding the plates together are properly tightened to maintain the structural integrity of the exchanger.

It is important to follow the manufacturer's guidelines for maintenance and cleaning to ensure the longevity and efficiency of the Plate Heat Exchanger.

🔧 Note: Always use appropriate personal protective equipment (PPE) when performing maintenance on Plate Heat Exchangers to avoid injuries and ensure safety.

Selection Criteria for Plate Heat Exchangers

Selecting the right Plate Heat Exchanger for a specific application involves considering several factors. These include:

Fluid Properties: The type of fluids, their flow rates, and temperatures must be considered to ensure compatibility with the Plate Heat Exchanger.
Pressure and Temperature: The operating pressure and temperature range must be within the design limits of the exchanger.
Material Compatibility: The plates and gaskets must be made of materials that are compatible with the fluids to prevent corrosion and ensure longevity.
Space Constraints: The size and configuration of the Plate Heat Exchanger must fit within the available space.
Cost: The initial cost, operating costs, and maintenance costs must be considered to ensure the overall cost-effectiveness of the solution.

By carefully considering these factors, you can select a Plate Heat Exchanger that meets the specific requirements of your application, ensuring optimal performance and efficiency.

Common Issues and Troubleshooting

Despite their reliability, Plate Heat Exchangers can encounter issues that affect their performance. Some common problems and their troubleshooting steps include:

Reduced Heat Transfer Efficiency: This can be caused by fouling or scaling on the plates. Regular cleaning and inspection can help prevent this issue.
Fluid Leakage: Leakage can occur due to worn-out gaskets or damaged plates. Inspect and replace gaskets as needed, and repair or replace damaged plates.
Pressure Drop: A significant pressure drop can indicate blockages or fouling. Clean the plates and check for any obstructions in the fluid channels.
Corrosion: Corrosion can occur if the materials are not compatible with the fluids. Use corrosion-resistant materials and ensure proper maintenance to prevent this issue.

Regular monitoring and maintenance can help identify and address these issues early, ensuring the continued efficiency and reliability of the Plate Heat Exchanger.

🛠️ Note: Always consult the manufacturer's guidelines for troubleshooting and maintenance to ensure proper handling and repair of Plate Heat Exchangers.

Future Trends in Plate Heat Exchangers

The technology behind Plate Heat Exchangers continues to evolve, driven by the need for greater efficiency and sustainability. Some of the future trends in this field include:

Advanced Materials: The use of advanced materials, such as graphene and other nanocomposites, can enhance the thermal conductivity and durability of the plates.
Smart Sensors: Integration of smart sensors and IoT technology can enable real-time monitoring and predictive maintenance, improving the overall efficiency and reliability of Plate Heat Exchangers.
Energy Efficiency: Innovations in design and materials can further enhance the energy efficiency of Plate Heat Exchangers, reducing operating costs and environmental impact.
Customization: Advances in manufacturing techniques can enable greater customization, allowing Plate Heat Exchangers to be tailored to specific applications with greater precision.

These trends highlight the ongoing development and innovation in the field of Plate Heat Exchangers, ensuring their continued relevance and effectiveness in various industries.

In conclusion, Plate Heat Exchangers are a vital component in many industrial processes, offering high efficiency, compact size, and cost-effectiveness. Their design, versatility, and wide range of applications make them an indispensable tool for heat transfer. By understanding their design, types, applications, advantages, and maintenance requirements, you can make informed decisions about their use in your specific applications. Regular maintenance and careful selection based on the specific requirements of your application will ensure the optimal performance and longevity of Plate Heat Exchangers, contributing to the overall efficiency and sustainability of your operations.
